ZNL Wire Rope Winches

Constructed with die casting all-aluminum house, TITANSUHE’s ZNL series wire rope is a heavy duty but light weight lifting and pulling equipment. Equipped with standard 20m wire rope or longer, this wire rope winch are widely used in factories to install or translocate equipments, in mines to structure or recover pit props, on construction site to replace scaffoldings, in railway industry to lay bridge frames or maintain bridge piers, in electric power field to install or erect towers or to tension cables, in transportation to load or unload heavy bulky materials, in forestry to fall down trees. And it also be widely used for civilian purpose to lift or lower house-hold articles or to clean the old houses. And in city construction applications, it is used to lay water pipe, install apparatus or erect electric poles, etc.

pho

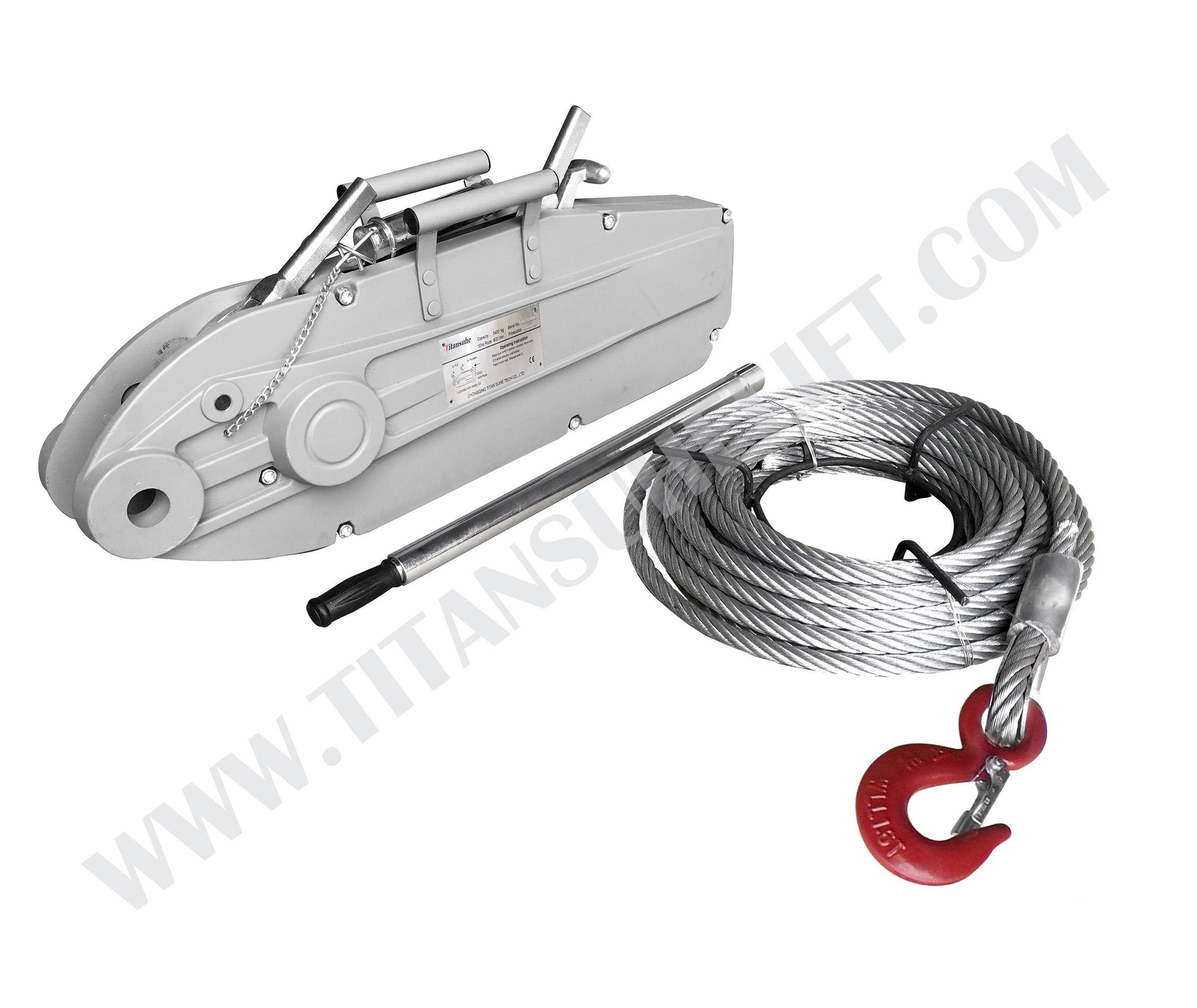

wire rope pulling

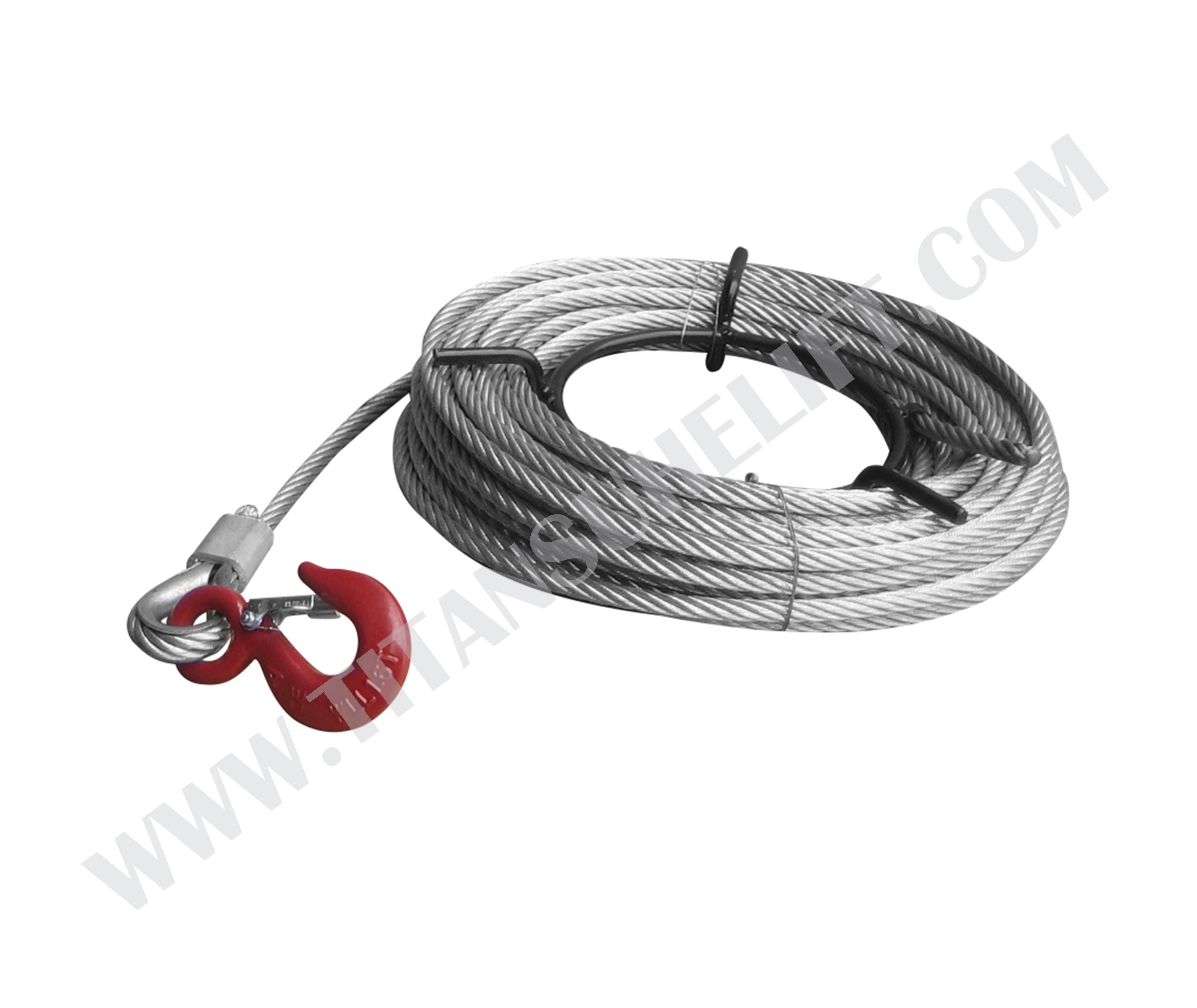

wire rope winches

Data Sheet of ZNL Manual Wire Rope Pulling Winch

Model

NHSS0.8

NHSS1.6

NHSS3.2

NHSS5.4

Rated capacity (tons)

0.8

1.6

3.2

5.4

Pulling Capacity (tons)

1.2

2.4

4.8

8.1

Rated forward travel  (mm)

≥52

≥55

≥28

≥25

Efficient length of forward handle (mm)

825

1200

1200

1200

Drive step

1

1

2

2

Rope diameter (mm)

8.3

11

16

20

Standard length of rope (m)

20

20

20

20

Net weight (kg)

16

24

32

90

Rated forward hand power (N)

≤341

≤400

≤438

≤550

Max. overall size (mm)

426x64x238

545x97x284

660x98x325

930x390x150



As a manufacturing group and professional supplier of winch with wire rope, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.
