Zinc Plated Snap Hooks DIN5299

Known as spring hooks, the snap hooks are constructed with a spring snap to prevent the accidental unhooking of a rope, cord or other target line. It's a widely used essential component in a broad range of industrial applications. TITAN SUHE provides a wide range of snap hooks both in zinc plated steel or stainless steel 304 and 316 that come in different shape including snap hooks form C, snap hooks with eye Form A, Snap hooks with screw Form D, Snap hooks with eye and screw as well as straight snap hooks Form B. Check below data sheet to get proper type for your jobs.

Data Sheet of Zinc Plated Snap Hooks DIN5299

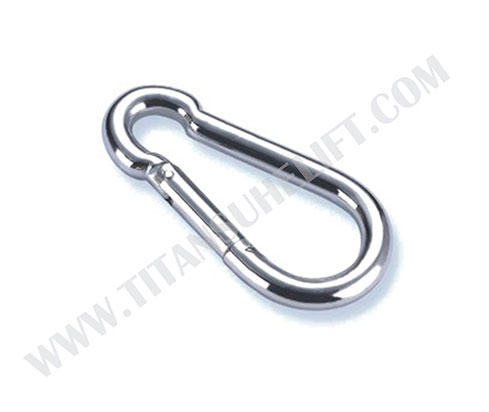

Snap hook DIN 5299 C, Zinc Plated

Size	Dimension(mm)					W.L.L	N.W.
(mm)	A	B	C	D	L	(lbs)	(g/pc)
4*40	20	7	7	4	40	200	6
5*50	25	8	7	5	50	220	16
6*60	30	9	8	6	60	260	28
7*70	35	10	8	7	70	400	45
8*80	40	12	9	8	80	500	63
9*90	45	12	10	9	90	550	90
10*100	50	16	11	10	100	770	125
11*120	57	18	16	11	120	990	192
12*140	67	20	19	12	140	1200	250
13*160	74	22	25	13	160	1400	350
14*180	86	22	35	14	180	1600	455
15*200	90	26	37	15	200	1800	618

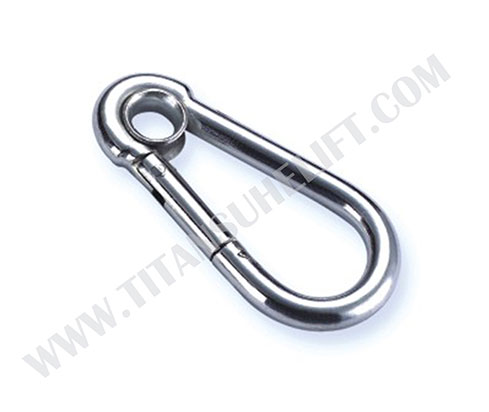

Snap hook with Eye DIN 5299 A, Zinc Plated

Size	Dimension(mm)					WLL	N.W.
(mm)	A	B	C	D	L	(lbs)	(g/pc)
4*40	20	5	7	4	40	200	85
5*50	25	5	7	5	50	220	18
6*60	30	5	8	6	60	260	30
7*70	35	7	8	7	70	400	50
8*80	40	10	9	8	80	500	70
9*90	45	10	10	9	90	550	98
10*100	50	13	11	10	100	770	142
11*120	57	13	16	11	120	990	210
12*140	67	15	19	12	140	1200	275
13*160	74	17	25	13	160	1400	358

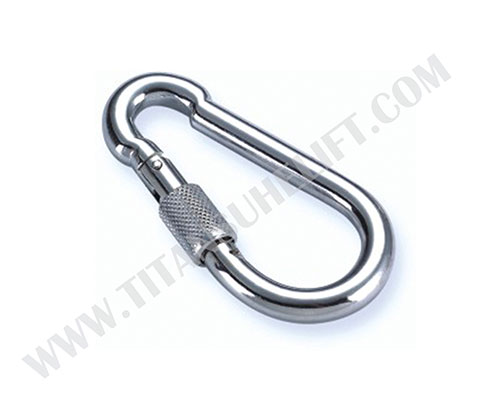

Snap hook with Screw DIN 5299 D, Zinc Plated

Size	Dimension(mm)					WLL	N.W.
(mm)	A	B	C	D	L	(lbs)	(g/pc)
5*50	25	8	7	5	50	220	20
6*60	30	9	8	6	60	260	30
7*70	35	10	8	7	70	400	50
8*80	40	12	9	8	80	500	75
9*90	45	12	10	9	90	550	98
10*100	50	15	11	10	100	770	160
11*120	57	18	16	11	120	990	210
12*140	67	20	19	12	140	1200	270
13*160	74	22	25	13	160	1400	360
14*180	86	22	35	14	180	1600	510

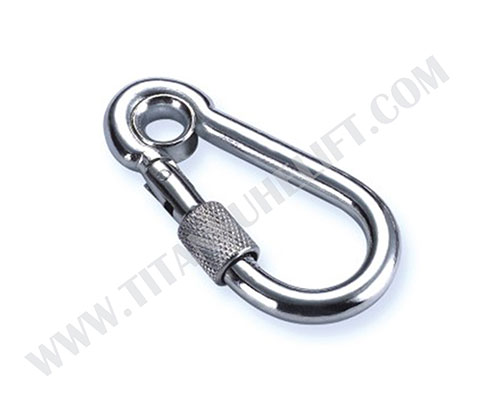

Snap hook with Eye and Screw, Zinc Plated

Size	Dimension(mm)					WLL	N.W.
(mm)	A	B	C	D	L	(lbs)	(g/pc)
5*50	25	5	7	5	50	220	21
6*60	30	5	8	6	60	260	32
7*70	35	7	8	7	70	400	50
8*80	40	10	9	8	80	500	77
9*90	45	10	10	9	90	550	99
10*100	50	13	11	10	100	770	162
11*120	57	13	16	11	120	990	220
12*140	67	15	19	12	140	1200	280
13*160	74	17	25	13	160	1400	370

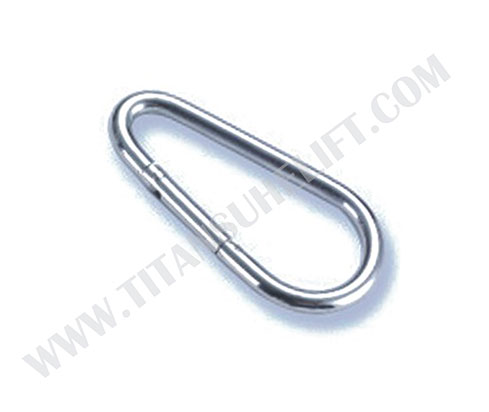

Straight Snap hook DIN 5299 Form B, Zinc Plated

Size	Dimension(mm)				WLL	N.W.
(mm)	A	C	D	L	(lbs)	(g/pc)
5*50	25	7	5	50	220	17
6*60	30	8	6	60	260	25
7*70	35	8	7	70	400	44
8*80	40	9	8	80	500	66
9*90	45	10	9	90	550	93
10*100	50	11	10	100	770	130
11*120	57	16	11	120	990	185
12*140	67	19	12	140	1200	250

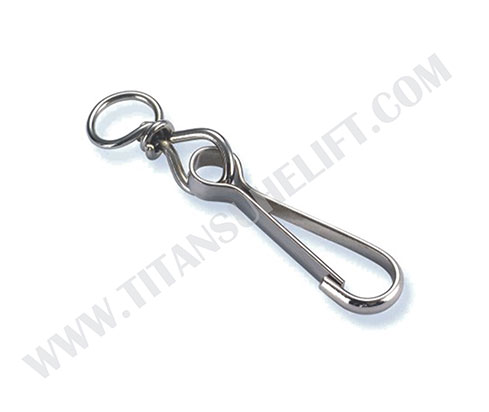

Simplex Snap With Swivel Nickel Plated

Nickel plated steel simplex snap hooks with swivel Easily push in the spring loaded hook Available in 10 lengths from 25mm to 120mm.

Size	N.W.(g/pc)	N.W.(g/pc)
(mm)	snap only	with swivel
25	3	4.5
30	4	5
40	7	9
50	12.5	15
60	15	23
70	22	32
80	37	50
90	56	65
100	68	73
120	85	92

Zinc Plated Snap Hooks DIN5299

Data Sheet of Zinc Plated Snap Hooks DIN5299

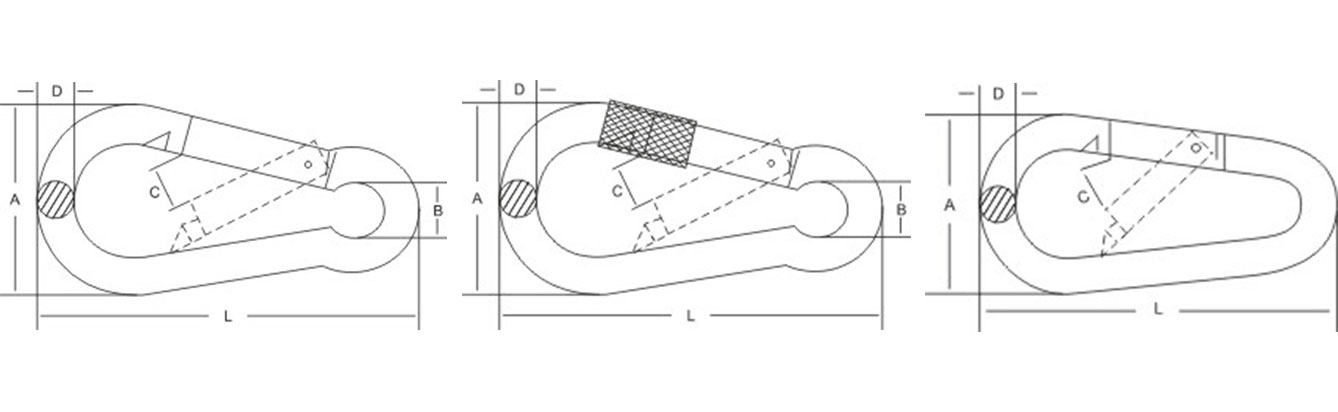

Drawing of Zinc Plated Snap Hooks DIN5299
