Zinc Plated Round Ring and D Ring
Welded Round Ring and Dee Ring can be used to make a variety of straps, from tie-downs to horse harnesses. It can also work as anchor point or tie down hooking point by welded on a bracket.

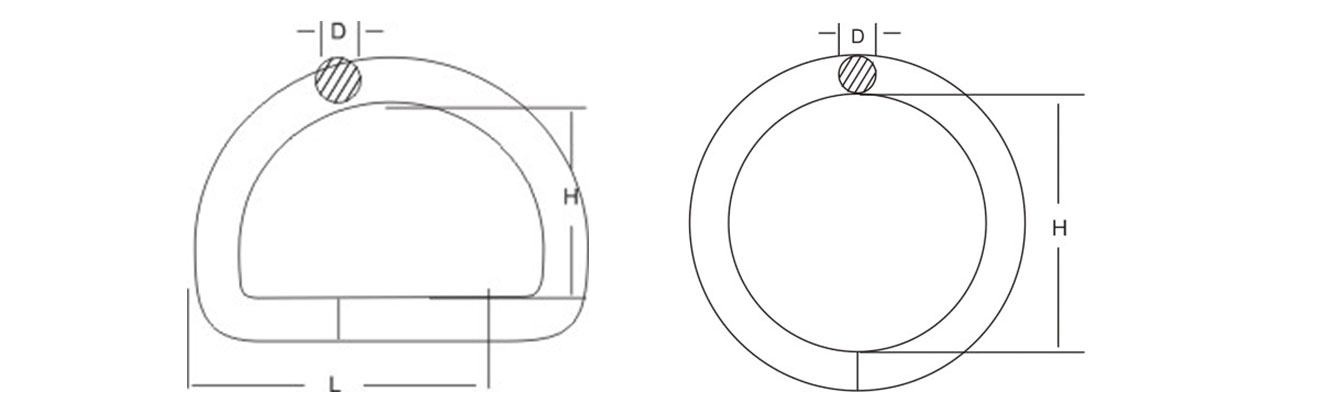

Data Sheet of Zinc Plated Round Ring And D Ring

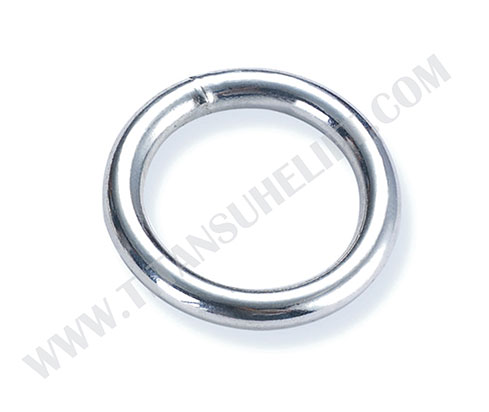

Welded Round Ring, Zinc Plated
Size(mm) | Dimension(mm) | N.W.(g/pc) | Size(mm) | Dimension(mm) | N.W.(g/pc) | ||
D | H | D | H | ||||
3x20 | 3 | 20 | 4 | 6X45 | 6 | 45 | 35.6 |
4x25 | 4 | 25 | 9.1 | 6X50 | 6 | 50 | 39 |
4x30 | 4 | 30 | 10.7 | 6X60 | 6 | 60 | 46 |
4x40 | 4 | 40 | 13.9 | 7X35 | 7 | 35 | 41 |
5x30 | 5 | 30 | 16.2 | 8X40 | 8 | 40 | 59.5 |
5x32 | 5 | 32 | 17.1 | 8X50 | 8 | 50 | 72 |
5x35 | 5 | 35 | 18.5 | 9X40 | 9 | 40 | 76.8 |
5x40 | 5 | 40 | 21 | 10X50 | 10 | 50 | 117 |
5x50 | 5 | 50 | 25.4 | 10X70 | 10 | 70 | 155 |
6x30 | 6 | 30 | 25.1 | 12X60 | 12 | 60 | 208 |
6x40 | 6 | 40 | 32 | 12X100 | 12 | 100 | 313 |

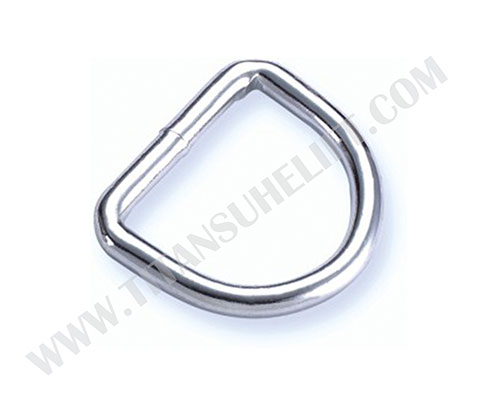

Welded Dee Ring, Zinc Plated
Size | Dimension(mm) | N.W. | ||
(mm) | D | H | L | (g/pc) |
3*25 | 3 | 20 | 25 | 5.5 |
4*25 | 4 | 25 | 25 | 9.7 |
4*30 | 4 | 25 | 30 | 11.3 |
4*40 | 4 | 30 | 40 | 14.5 |
5*30 | 5 | 40 | 30 | 17.3 |
5*40 | 5 | 30 | 40 | 22.5 |
5*50 | 5 | 32 | 50 | 26.8 |
6*30 | 6 | 35 | 30 | 27.2 |
6*40 | 6 | 40 | 40 | 34 |
6*50 | 6 | 50 | 50 | 42 |
6*60 | 6 | 30 | 60 | 48 |
8*40 | 8 | 40 | 40 | 63 |
8*50 | 8 | 45 | 50 | 75 |
