Wire Rope Press Machine

TITANSUHE not only provides wire rope and wire rope sling, but we also provide a wire rope press machine that can help you to do your own fabrication. With intelligent design, this machine needs small space for operation but can do big jobs to make wire rope sling from 1mm up to 74mm. Featured with compact structure, convenient operation, favorable appearance, low energy consumption, low noise, low maintenance cost, and so on, the wire rope press machine is applicable for the industries selling and processing sling and rigging, as well as the industrial and mining, port, railway, and power industries. If you want to have your own fabrication and service your client better with customized wire rope slings, our press machine is your best choice.

pho

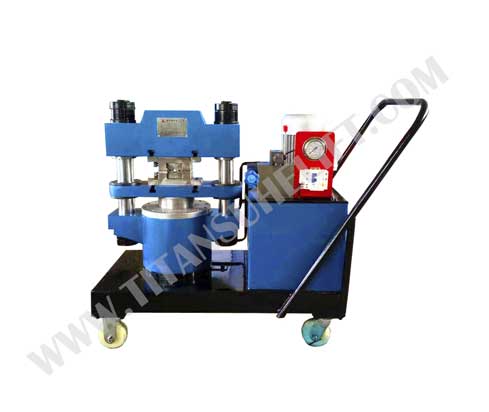

wire rope press machine 1

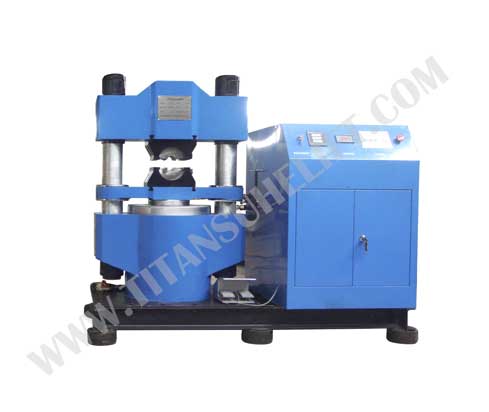

wire rope press machine 2

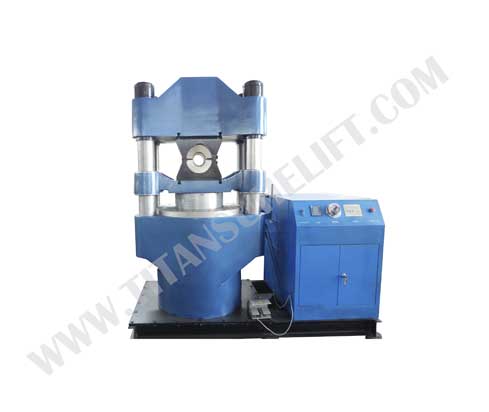

wire rope press machine 3

Data Sheet of Wire Rope Press Machine

MODEL

YSD-100

YSD-200

YSD-300

YSD-350

YSD-500

YSD-650

YSD-800

YSD-1000

YSD-1500

YSD-2000

SPECIFICATION

100T

200T

300T(320T)

350T

500T

650T

800T

1000T

1500T

2000T

MAX.FORCE(KN)

1000

2000

3200

3500

5000

6500

8000

10000

15000

20000

MAX.WORKING PRESSURE(MPA)

28

56

28

56

28

28

28

56

56

56

MAX.DIAMETER IN ONE PRESSING (MM)

14

20

26

28

32

36

42

46

54

64

MAX.DIAMETER IN MULTI-PRESSING (MM)

18

25

32

34

42

44

50

56

64

74

MAX.PISTON MOVEMENT (MM)

100

100

130

100

150

150

190

200

220

230

PISTON WORKING MOVEMENT (MM)

80

80

100

80

130

130

170

180

200

210

THE UP SPEED OF PISTON (MM/S)

6.8

8

4.8

5

4.5

4.4

3.6

4.5

4.5

3.6

THE DOWN SPEED OF PISTON (MM)

9.6

10

8.8

8

7.9

7.8

7.6

7.8

7.8

7.8

MOTOR POWER (KW)

3

2.2

4

3

5.5

7.5

7.5

5.5+4

7.5+4

11+4

NET WEIGHT(KG)

680

900

1500

1000

2700

3500

4600

7000

9000

13500

OVERALL DIMENSION (MM)

1000 x 500 x 960

1200 x 600 x 1400

1400 x 600 x 1600

1200 x 600 x 1400

1550 x 650 x 1700

1600 x 680 x 1880

1800 x 800 x 2100

2000 x 800 x 2100

2200 x 900 x 2180

2500 x 1200 x 2200



For one-stop system service with slings and rigging, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
