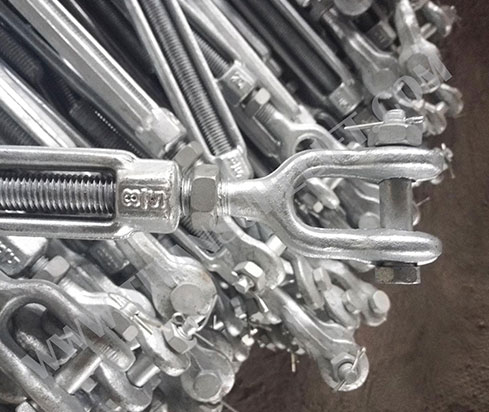

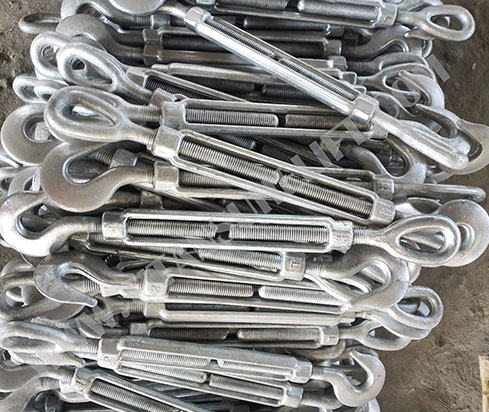

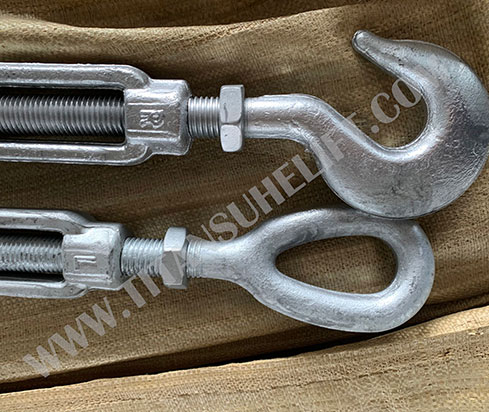

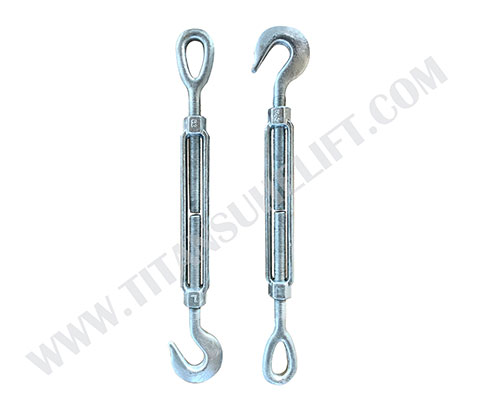

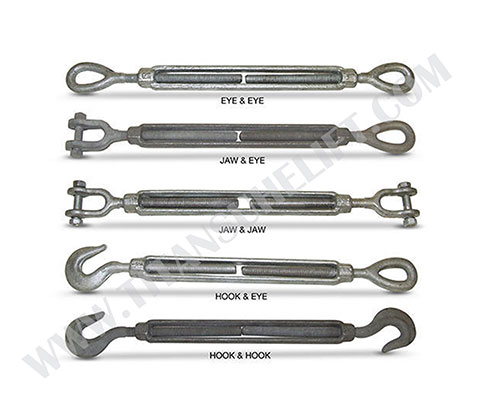

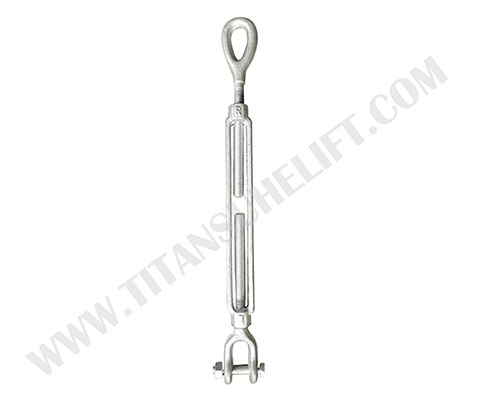

US type drop forged turnbuckle is designed for heavy duty applications. It can be constructed with eye terminal, hook terminal, jaw terminal or combination terminal such as eye+hook, eye+jaw and hook+jaw. Made by forged carbon steel with heat treatment, this turnbuckle has very good strength to withstand the heavy duty lashing. Hot dip galvanized treatment on the surface gives durable corrosion resistance.
Size | Average overall length with ends in closed position | Approx. unit weight(lbs) | W.L.L.(lbs) | |||||
(dia.x take-up) | eyes and/or hooks | jaw&eye | jaw&jaw | stub end | body only | hook&hook/hook&eye | E/E,J/E,J/J,stub end | |
1/4''*4'' | 8-1/4'' | 0.3 | 0.3 | 0.4 | 0.29 | 0.17 | 400 | 500 |
5/16''*4-1/2'' | 9-6/16'' | 0.5 | 0.35 | 0.58 | 0.46 | 0.25 | 700 | 800 |
3/8''*6'' | 11-7/8'' | 0.75 | 0.82 | 0.93 | 0.75 | 0.3 | 1000 | 1200 |
1/2''*6'' | 13-5/16'' | 1.5 | 1.62 | 1.68 | 1.36 | 0.55 | 1500 | 2200 |
1/2''*9'' | 16-5/16'' | 1.75 | 1.82 | 1.85 | 1.69 | 0.74 | 1500 | 2200 |
1/2''*12'' | 19-5/16'' | 2.18 | 2.19 | 2.2 | 2 | 0.93 | 1500 | 2200 |
5/8''*6'' | 15-1/2'' | 2.63 | 2.59 | 2.82 | 2.15 | 0.91 | 2250 | 3500 |
5/8''*9'' | 18-1/2'' | 3 | 3.01 | 3.25 | 2.7 | 1.2 | 2250 | 3500 |
5/8''*12'' | 21-1/2'' | 3.25 | 3.5 | 3.75 | 3.22 | 1.5 | 2250 | 3500 |
3/4''*6'' | 17'' | 3.75 | 4.25 | 4.68 | 3.25 | 1.3 | 3000 | 5200 |
3/4''*9'' | 20'' | 4.5 | 5 | 5.38 | 4 | 1.7 | 3000 | 5200 |
3/4''*12'' | 23'' | 5.75 | 5.75 | 6.12 | 4.65 | 2.12 | 3000 | 5200 |
3/4''*18'' | 29'' | 7 | 7.25 | 7.25 | 6.12 | 2.93 | 3000 | 5200 |
7/8''*6'' | 18'' | - | - | - | 4.75 | 2 | 4000 | 7200 |
7/8''*12' | 24-5/8'' | 8.38 | 8.88 | 9.36 | 6.67 | 3 | 4000 | 7200 |
7/8''*18'' | 30-5/8'' | 10.25 | 10.6 | 11.44 | 8.75 | 4.12 | 4000 | 7200 |
1''*6'' | 20-5/8'' | - | - | - | 6.41 | 2.5 | 5000 | 10000 |
1''*12'' | 26-5/8'' | 11.25 | 12 | 12.88 | 8.9 | 3.86 | 5000 | 10000 |
1''*18'' | 32-5/8'' | 14 | 14.75 | 16.1 | 11.7 | 5.5 | 5000 | 10000 |
1''*24'' | 38-5/8'' | 17 | 17.75 | 18.6 | 14.3 | 7 | 5000 | 10000 |
1-1/4''*6'' | 20'' | - | - | - | 10.4 | 4 | 6500 | 15200 |
1-1/4''*12'' | 29-7/8'' | 19 | 21.2 | 23.6 | 14.2 | 5.93 | 6500 | 15200 |
1-1/4''*18'' | 35-7/8'' | 24.1 | 26 | 26.6 | 18 | 8 | 6500 | 15200 |
1-1/4''*24'' | 41-7/8'' | 25 | 28.7 | 31.2 | 21.8 | 10 | 6500 | 21400 |
1-1/2''*6'' | 22-1/2'' | - | - | - | 15.4 | 5.8 | 7500 | 21400 |
1-1/2''*12'' | 32-3/8'' | 27 | 31.1 | 35.5 | 20.5 | 8.4 | 7500 | 21400 |
1-1/2''*18'' | 38-3/8'' | 31.2 | 36.4 | 40.7 | 26.2 | 11.5 | 7500 | 21400 |
1-1/2''*24'' | 44-3/8'' | 38.2 | 44.2 | 47.6 | 31.4 | 14.1 | 7500 | 21400 |
1-3/4''*6'' | - | - | - | - | 22.7 | 8.75 | - | 28000 |
1-3/4''*18'' | 41-3/4'' | 45 | 48.8 | 52.4 | - | - | - | 28000 |
1-3/4''*24 | 47-3/4'' | 58 | 60 | 64 | 43.9 | 19.5 | - | 28000 |
2''*6'' | - | - | - | - | 31.5 | 12.5 | - | 37000 |
2''*24'' | 51-3/4'' | 90 | 102 | 115 | 60.3 | 27.5 | - | 37000 |
2-1/2''*6'' | - | - | - | - | 60.8 | 27 | - | 60000 |
2-1/2''*24' | 58-1/2'' | 183 | 180 | 200 | 110 | 54 | - | 60000 |
2-3/4''*24'' | 61-1/2'' | 180 | 214 | 248 | - | 54 | - | 75000 |
