Data Sheet of US Type Drop Forged Heavy Duty Chain Swivels

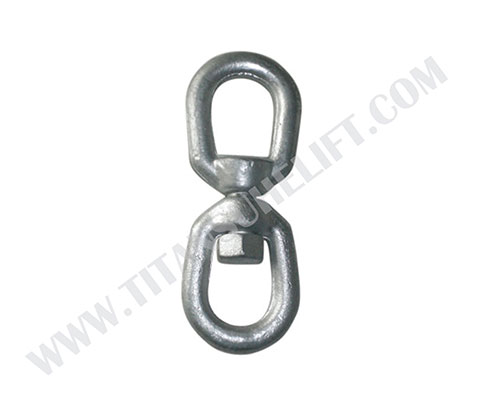

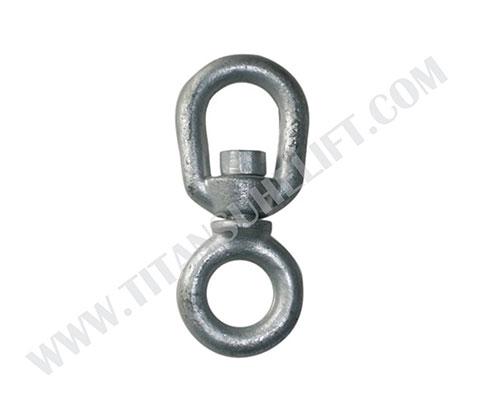

G401 Chain swivels

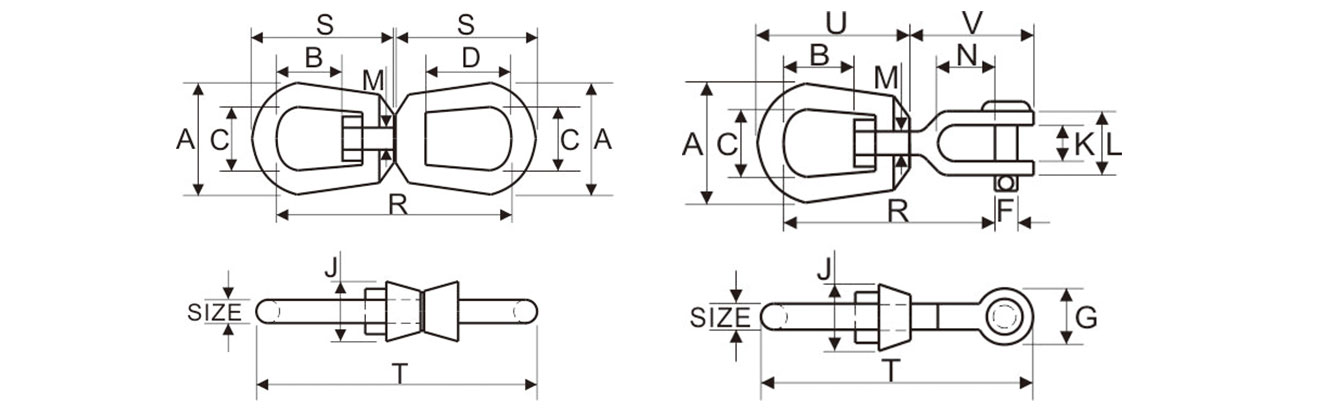

Size | Working Load Limit | Weight | Dimension(in) |
(in.) | (lbs) | (kg) | A | B | C | D | E | G | J | M | R | T | U | V |
1/4 | 850 | 0.13 | 1.25 | 0.69 | 0.75 | 0.62 | 1.12 | 0.25 | 0.69 | 0.31 | 2.25 | 2.75 | 1.69 | 1.25 |
5/16 | 1250 | 0.25 | 1.63 | 0.81 | 1 | 0.75 | 1.38 | 0.31 | 0.81 | 0.38 | 2.72 | 3.34 | 2.06 | 1.47 |
3/8 | 2500 | 0.61 | 2 | 0.94 | 1.25 | 1 | 1.75 | 0.38 | 1 | 0.5 | 3.44 | 4.19 | 2.5 | 1.88 |
1/2 | 3600 | 1.12 | 2.5 | 1.31 | 1.5 | 1.25 | 2.25 | 0.5 | 1.31 | 0.63 | 4.25 | 5.25 | 3.19 | 2.44 |
5/8 | 5200 | 1.75 | 3 | 1.56 | 1.75 | 1.5 | 2.75 | 0.62 | 1.5 | 0.75 | 5.13 | 6.31 | 3.88 | 2.94 |
3/4 | 7200 | 3.09 | 3.5 | 1.75 | 2 | 1.75 | 3.25 | 0.75 | 1.88 | 0.88 | 5.78 | 7.22 | 4.94 | 3.46 |

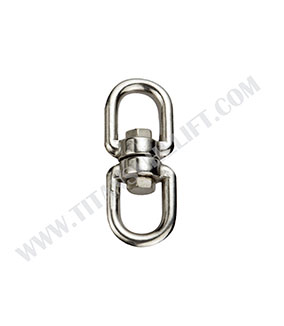

G402 Regular swivels
Size | Working Load Limit | Weight | Dimensions(in) |
(in.) | (lbs) | (kg) | A | B | C | D | J | M | R | S | T |
1/4 | 850 | 0.21 | 1.25 | 0.69 | 0.75 | 1.06 | 0.69 | 0.31 | 2.94 | 1.69 | 3.44 |
5/16 | 1250 | 0.39 | 1.63 | 0.81 | 1 | 1.25 | 0.81 | 0.38 | 3.56 | 2.06 | 4.19 |
3/8 | 2500 | 0.75 | 2 | 0.94 | 1.25 | 1.5 | 1 | 0.5 | 4.31 | 2.5 | 5.06 |
1/2 | 3600 | 1.43 | 2.5 | 1.31 | 1.5 | 2 | 1.31 | 0.63 | 5.44 | 3.19 | 6.44 |
5/8 | 5200 | 2.5 | 3 | 1.56 | 1.75 | 2.38 | 1.5 | 0.75 | 6.56 | 3.88 | 7.81 |
3/4 | 7200 | 4.13 | 3.5 | 1.75 | 2 | 2.63 | 1.88 | 0.88 | 7.19 | 4.31 | 8.69 |
7/8 | 10000 | 6.25 | 4 | 2.06 | 2.25 | 3.06 | 2.13 | 1 | 8.38 | 5 | 10.1 |
1 | 12500 | 9 | 4.5 | 2.31 | 2.5 | 3.5 | 2.38 | 1.13 | 9.63 | 5.75 | 11.6 |
1 1/4 | 18000 | 16.37 | 5.63 | 2.69 | 3.13 | 3.69 | 3 | 1.38 | 11.13 | 6.75 | 13.4 |
1 1/2 | 45200 | 49.06 | 7 | 4.19 | 4 | 4.19 | 4 | 2.25 | 17.13 | 10 | 20.1 |

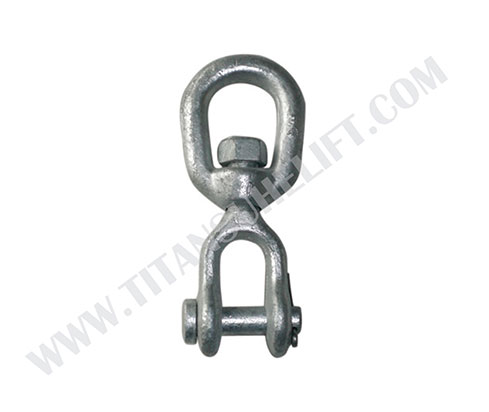

G403 Jaw end chain swivel
Size | Working Load Limit | Weight | Dimension(in) |
(in.) | (lbs) | (kg) | A | B | C | G | J | K | L | M | N | P | R | T | U | V |
1/4 | 850 | 0.25 | 1.25 | 0.69 | 0.75 | 0.69 | 0.69 | 0.47 | 1.03 | 0.31 | 0.88 | 0.25 | 2.63 | 3.38 | 1.69 | 1.69 |
5/16 | 1250 | 0.37 | 1.63 | 0.81 | 1 | 0.81 | 0.81 | 0.5 | 1.13 | 0.38 | 0.88 | 0.31 | 2.94 | 3.88 | 2.06 | 1.81 |
3/8 | 2500 | 0.7 | 2 | 0.94 | 1.25 | 1 | 1 | 0.63 | 1.41 | 0.5 | 1.06 | 0.38 | 3.63 | 4.75 | 2.5 | 2.25 |
1/2 | 3600 | 1.43 | 2.5 | 1.31 | 1.5 | 1.31 | 1.31 | 0.75 | 1.75 | 0.63 | 1.31 | 0.5 | 4.5 | 6.06 | 3.19 | 2.88 |
5/8 | 5200 | 2.48 | 3 | 1.56 | 1.75 | 1.63 | 1.5 | 0.94 | 2.06 | 0.75 | 1.5 | 0.63 | 5.31 | 7.31 | 3.88 | 3.44 |
3/4 | 7200 | 3.88 | 3.5 | 1.75 | 2 | 1.88 | 1.88 | 1.13 | 2.53 | 0.88 | 1.75 | 0.75 | 6.06 | 8.31 | 4.31 | 4 |
7/8 | 10000 | 5.75 | 4 | 2.06 | 2.25 | 2.13 | 2.13 | 1.19 | 2.75 | 1 | 2.06 | 0.88 | 7 | 9.53 | 5 | 4.53 |
1 | 12500 | 10.25 | 4.5 | 2.31 | 2.5 | 2.63 | 2.38 | 1.75 | 3.72 | 1.13 | 2.81 | 1.13 | 8.56 | 11.69 | 5.75 | 5.94 |
1 1/4 | 18000 | 15.75 | 5.69 | 2.69 | 3.13 | 3.31 | 3 | 2.06 | 4.31 | 1.38 | 2.81 | 1.38 | 9.44 | 13.13 | 6.75 | 6.38 |
1 1/2 | 45200 | 54.75 | 7 | 4.19 | 4 | 5.63 | 4 | 2.88 | 6 | 2.25 | 4.41 | 2.25 | 14.74 | 20.84 | 10 | 10.84 |
