Name: Ungalvanized Steel Wire Rope 6x37
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

Ungalvanized Steel Wire Rope 6x37

The flexibility of a steel ungalvanised wire rope increases with the increase of strands number and wire number. Structured with 37 wires each strand and 6 strand in total, 6x37 ungalvanised wire rope has extreme strength and flexibility which enable this rope be widely used for professional overhead rigging lifting purpose. The super flexibility makes the ungalvanised wire rope easy to be winded on small size drum and pulley wheel without damage the rope structure. Because there are so many wires in each strand, the minimum diameter is starting from 5mm.

Quick View of Ungalvanized Steel Wire Rope 6x37

Material: Carbon Steel
Construction: 6x37
Strand Number: 6
Wire Number of Each Strand: 37

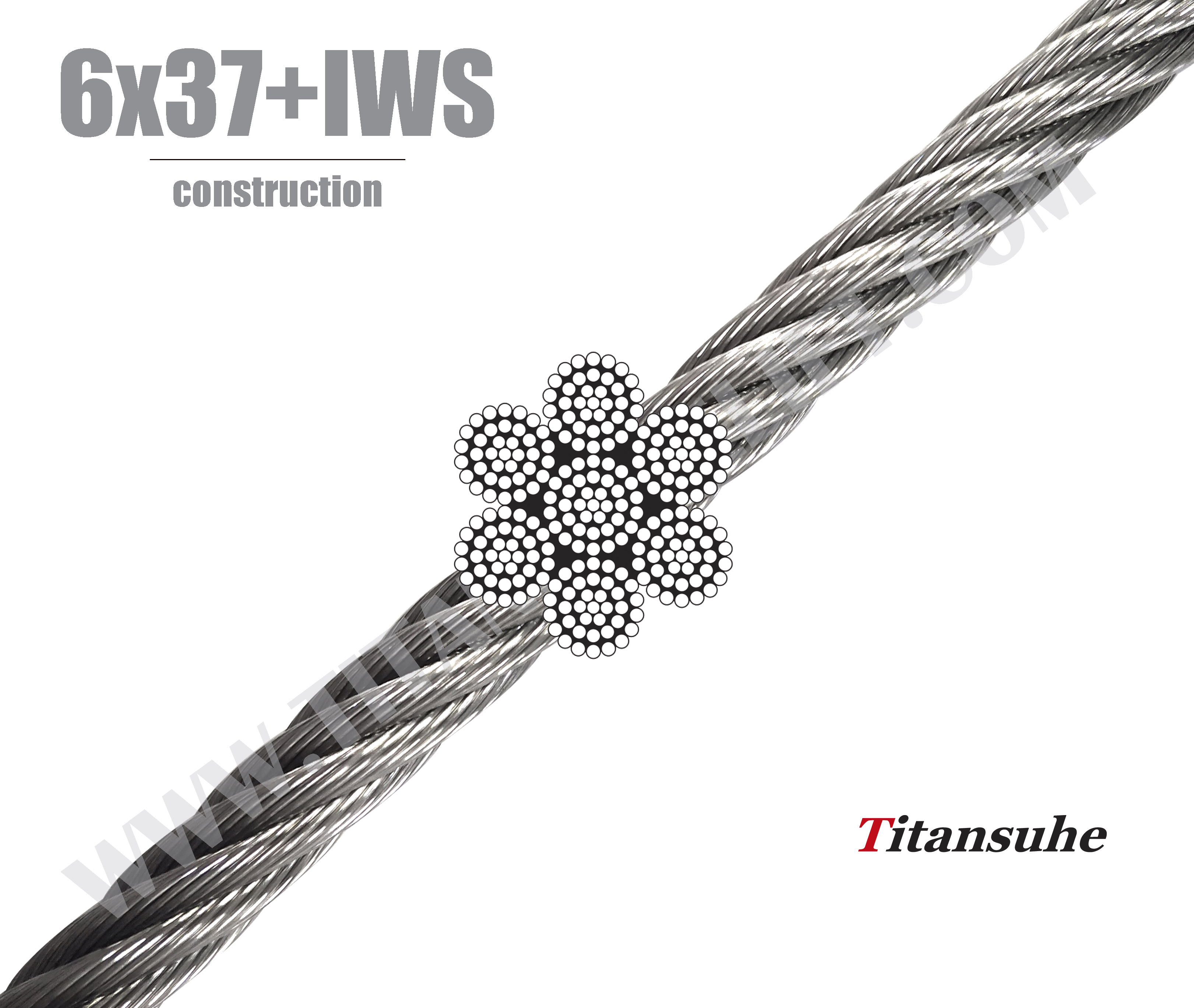

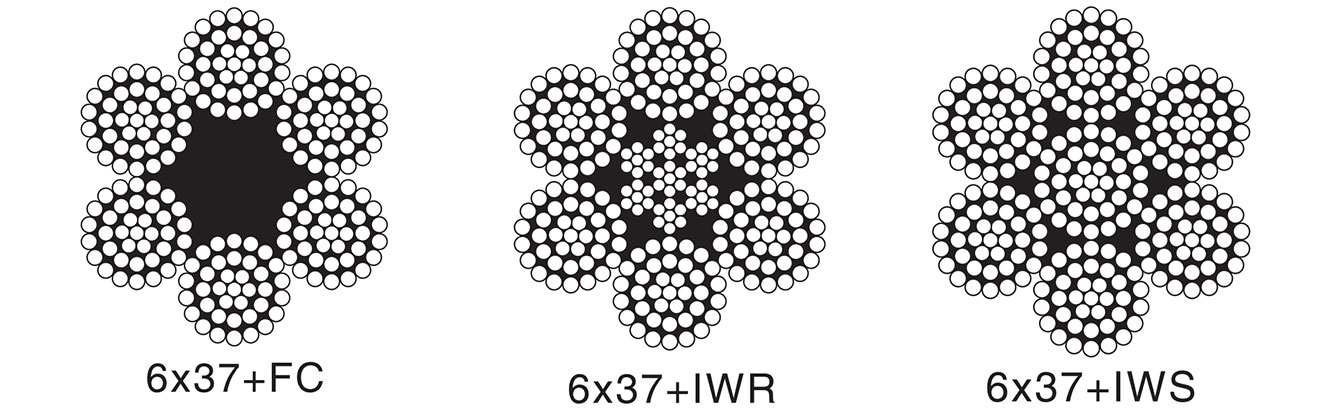

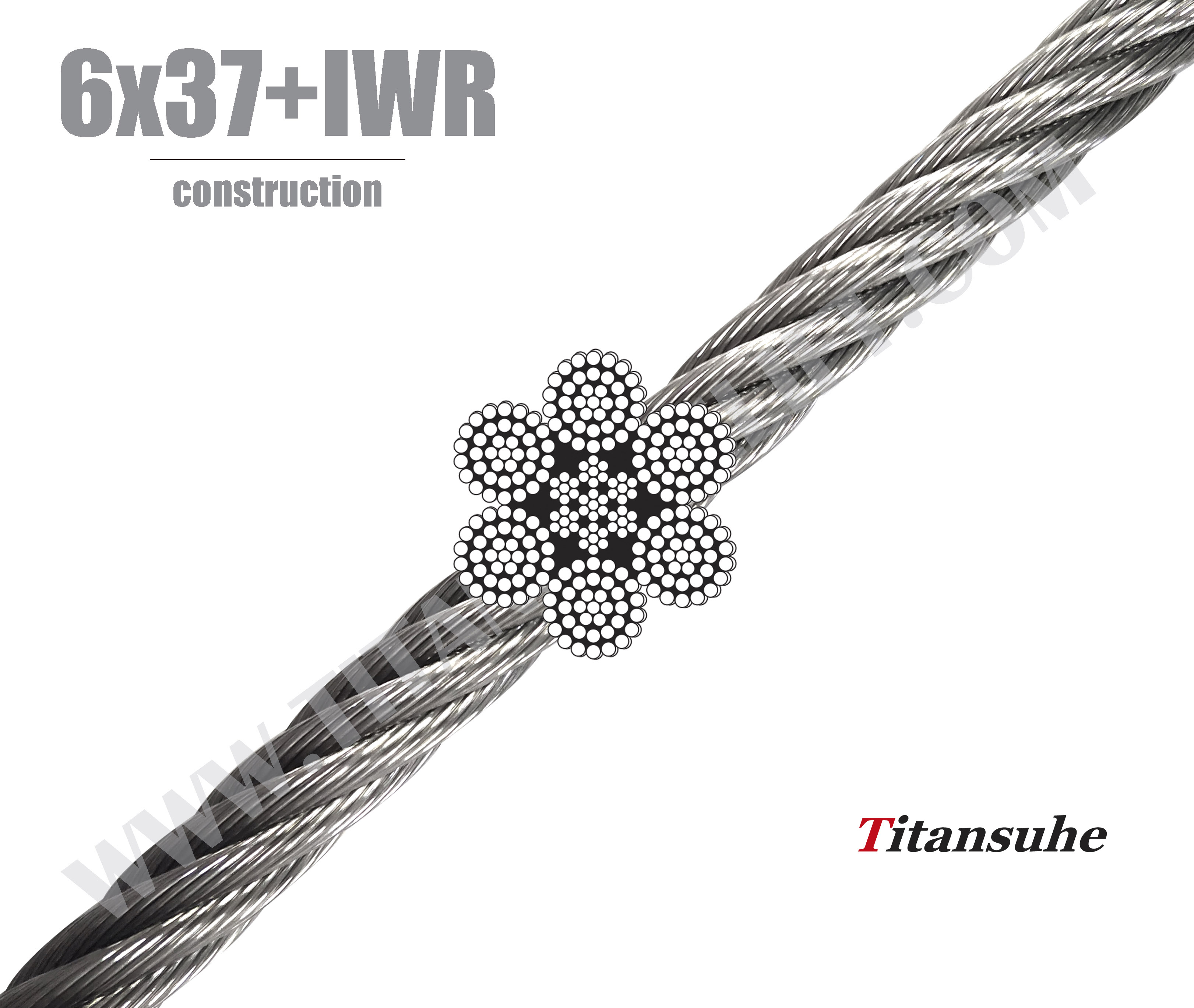

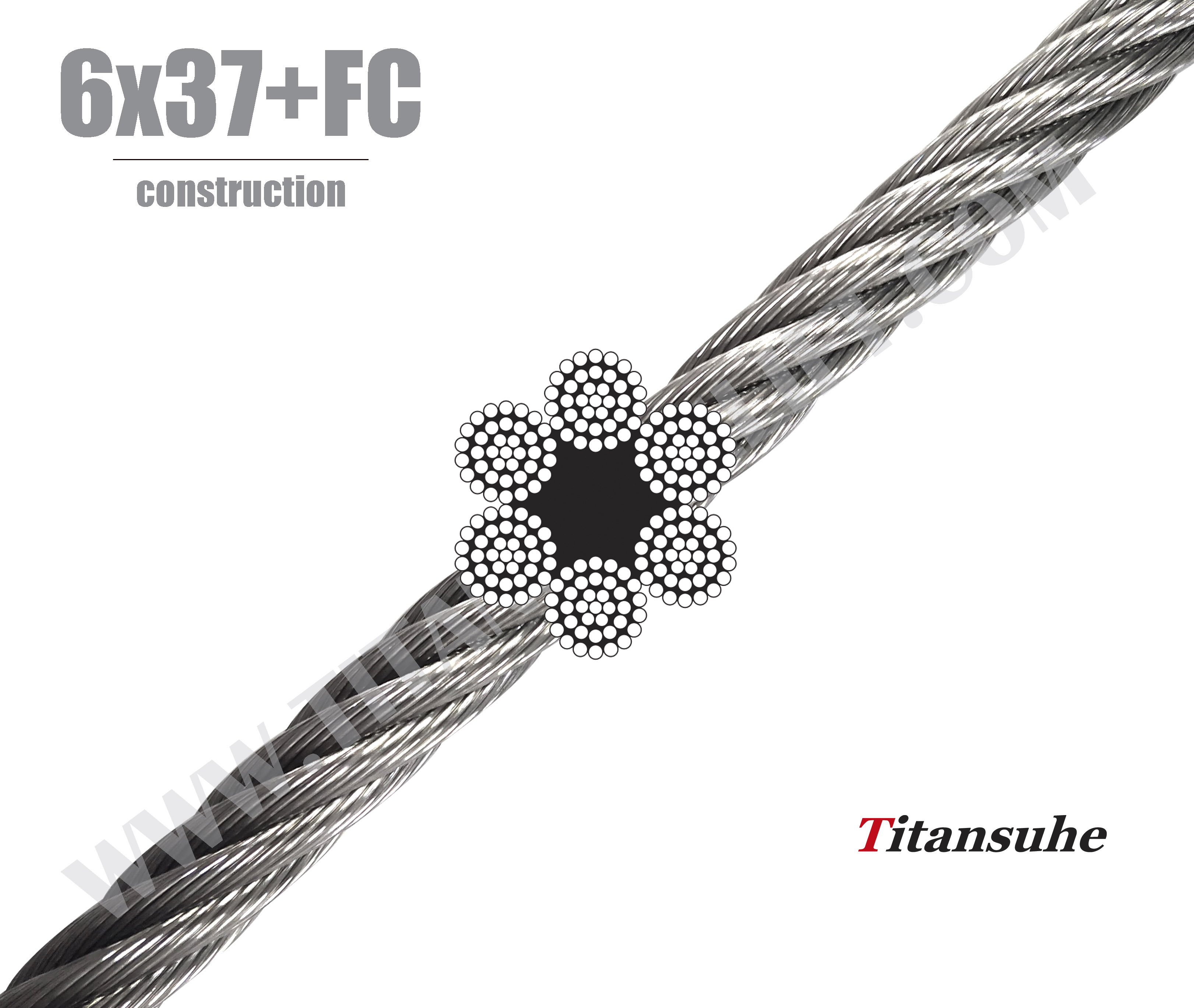

Rope Core: FC (Fiber core) or IWRC
Specification: DIN3066
Available Size: 5mm up to 80mm
Available Tensile Strength: 1570N/MM2, 1770N/MM2 and 1960N/MM2
Surface Treatment Options: Electric Galvanization, Hot Dip Galvanization, Self color with lubrication, PVC coating in different color
Lubrication: Dry for galvanized rope and little grease for ungalvanized rope. Other lubrication available by request.
Packing: 1000m/reel as regular, coil packing or other shorter or longer length packing available by request

Applications of Ungalvanized Steel Wire Rope 6x37

Where ungalvanised wire rope steel cables are required to wind on drum such as hand winch, electric winch, electric wire rope hoist
Where ungalvanised wire rope steel cables are required to run over pulleys such as snatch blocks, cranes, etc.
For all general engineering applications
To make pressed or spliced wire rope slings
Vertical well balance, loading and unloading of ship, fish net dragging and salvaging sunken ship

Date Sheet of Ungalvanized Steel Wire Rope 6x37

Nominal Diameter	Approx weight		Nominal Tensile Strength
	kg/100m		Minimum Breaking Strength (kN)
	kg/100m		1570N/mm²		1770N/mm²		1960N/mm²
mm	NF/SF	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
5	8.65/8.43	9.53	11.6	12.5	13.1	14.1	14.4	15.6
6	12.50/12.10	13.7	16.7	18	18.8	20.3	20.8	22.5
7	17.00/16.50	18.7	22.7	24.5	25.6	27.7	28.3	30.6
8	22.10/21.60	24.4	29.6	32.1	33.4	36.1	37	40
9	28.00/27.30	30.9	37.5	40.6	42.3	45.7	46.8	50.6
10	34.60/33.70	38.1	46.3	50.1	52.2	56.5	57.8	62.5
11	41.90/40.80	46.1	56	60.6	63.2	68.3	69.9	75.6
12	49.80/48.50	54.9	66.7	72.1	75.2	81.3	83.2	90
13	58.50/57.00	64.4	78.3	84.6	88.2	95.4	97.7	105
14	67.80/66.10	74.7	90.8	98.2	102	111	113	122
16	88.60/86.30	97.5	119	128	134	145	148	160
18	112/109	123	150	162	169	183	187	202
20	138/135	152	185	200	209	226	231	250
22	167/163	184	224	242	253	273	279	302
24	199/194	219	267	288	301	325	333	360
26	234/228	258	313	339	353	382	390	422
28	271/264	299	363	393	409	443	453	490
30	311/303	343	417	451	470	508	520	562
32	354/345	390	474	513	535	578	592	640
34	400/390	440	535	579	604	653	668	722
36	448/437	494	600	649	677	732	749	810
38	500/487	550	669	723	754	815	834	902
40	554/539	610	741	801	835	903	925	1000
42	610/594	672	817	883	921	996	1020	1102
44	670/652	738	897	970	1010	1090	1119	1210
46	732/713	806	980	1060	1100	1190	1223	1323
48	797/776	878	1070	1150	1200	1300	1332	1440
50	865/843	953	1160	1250	1310	1410	1445	1563
52	936/911	1030	1250	1350	1410	1530	1563	1690
54	1010/983	1110	1350	1460	1520	1650	1686	1823
56	1090/1060	1190	1450	1570	1640	1770	1813	1960
58	1160/1130	1280	1560	1680	1760	1900	1945	2103
60	1250/1210	1370	1670	1800	1880	2030	2081	2250
62	1330/1300	1460	1780	1930	2010	2170	2222	2403
64	1420/1380	1560	1900	2050	2140	2310	2368	2560
66	1510/1470	1660	2020	2180	2270	2460	2518	2723
68	1600/1560	1760	2140	2320	2410	2610	2673	2691
70	1700/1650	1870	2270	2450	2560	2770	2833	3063
72	1790/1750	1980	2400	2600	2710	2930	2997	3241
74	1890/1850	2090	2540	2740	2860	3090	3166	3423
76	2000/1950	2200	2680	2890	3020	3260	3339	3611
78	2110/2050	2320	2820	3050	3180	3440	3517	3803
80	2210/2160	2440	2960	3210	3340	3610	3700	4001

Titansuhe have wire rope components bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
