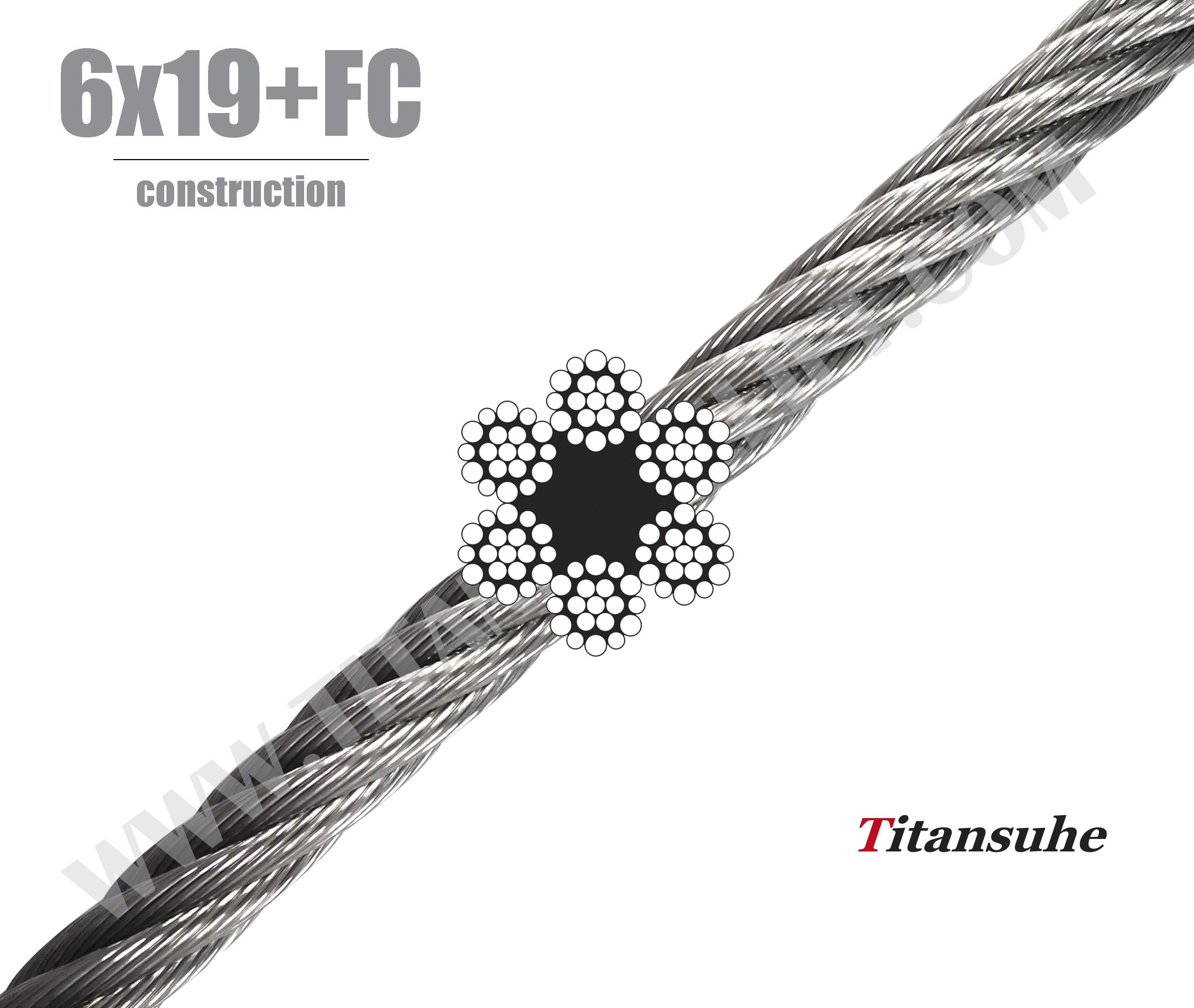

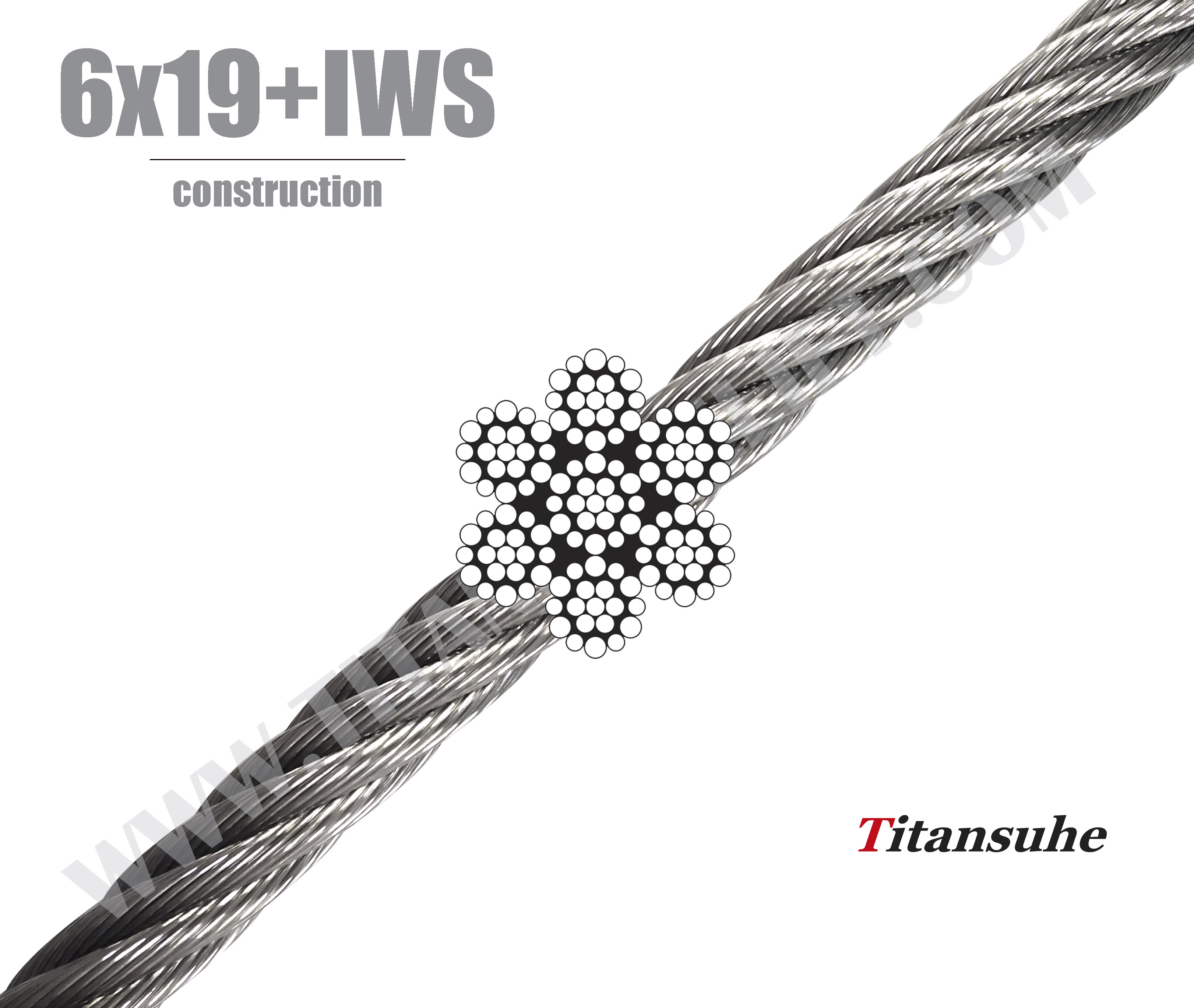

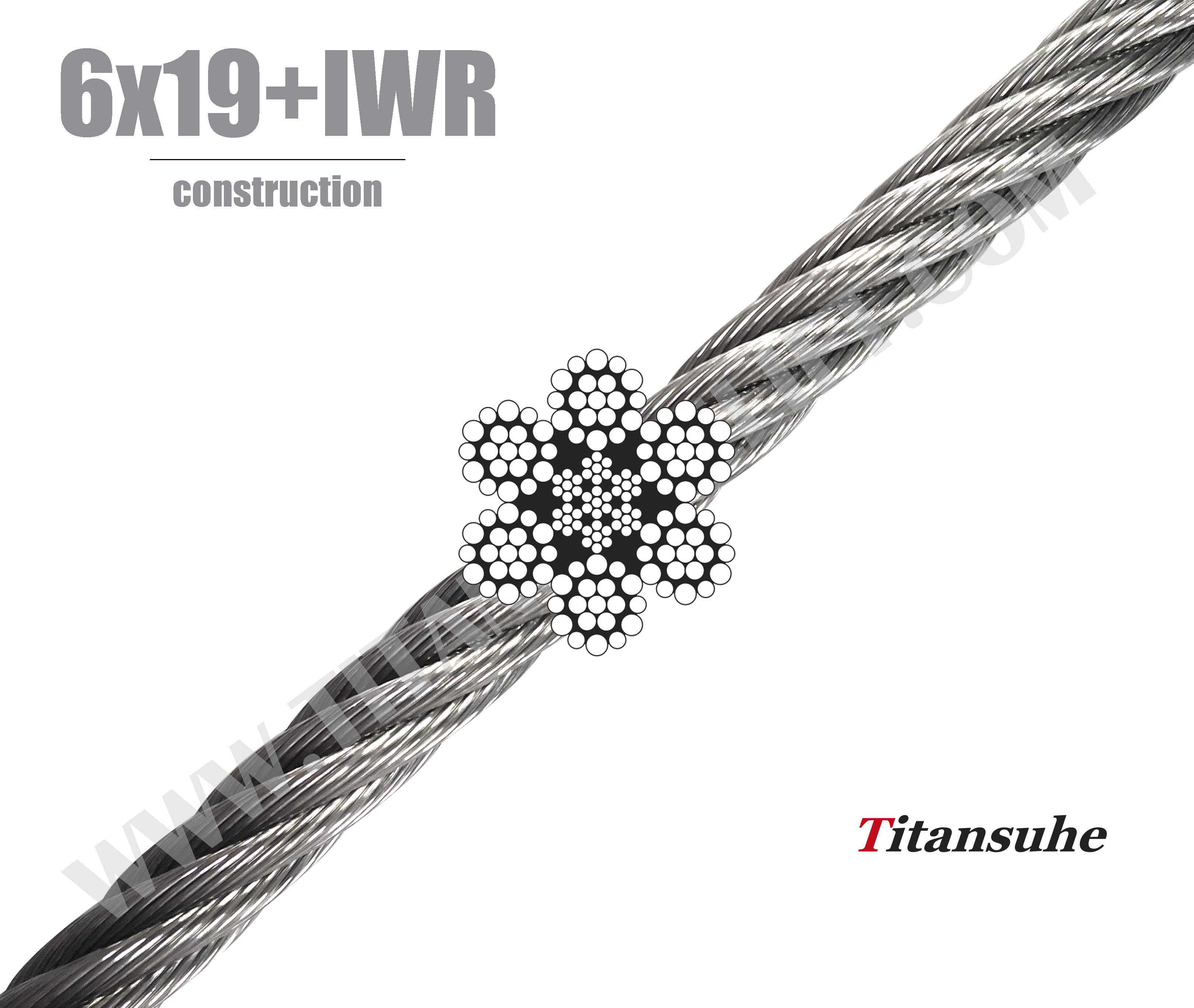

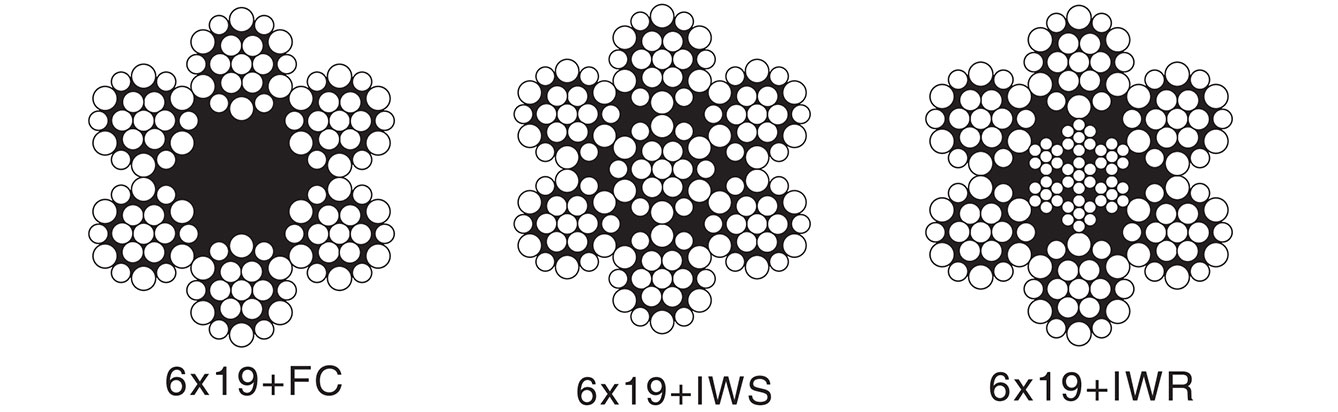

Steel Wire Rope 6x19 is a compacted wire rope that most used to make wire rope slings or to run over pulleys or drums as crane ropes or winch ropes. This rope has features of super flexibility in diameter 3mm to 16mm. It is available with fiber core or independent wire strand core. When supplied with independent wire steel core, the rope is more referred to as 7x19.
Nominal Diameter | Approx weight | Nominal Tensile Strength | ||||||
kg/100m | Minimum Breaking Strength (kN) | |||||||
1570N/mm2 | 1770N/mm2 | 1960N/mm2 | ||||||
mm | NF/SF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS |
3 | 3.11/3.03 | 3.43 | 4.34 | 4.69 | 4.89 | 5.29 | 5.41 | 5.85 |
4 | 5.54/5.39 | 6.1 | 7.71 | 8.34 | 8.69 | 9.4 | 9.62 | 10.4 |
5 | 8.65/8.43 | 9.53 | 12 | 13 | 13.6 | 14.7 | 15 | 16.2 |
6 | 12.50/12.10 | 13.7 | 17.4 | 18.8 | 19.6 | 21.2 | 21.6 | 23.4 |
7 | 17.00/16.50 | 18.7 | 23.6 | 25.5 | 26.6 | 28.8 | 29.4 | 31.8 |
8 | 22.10/21.60 | 24.4 | 30.8 | 33.4 | 34.8 | 37.6 | 38.5 | 41.6 |
9 | 28.00/27.30 | 30.9 | 39 | 42.2 | 44 | 47.6 | 48.7 | 52.7 |
10 | 34.60/33.70 | 38.1 | 48.2 | 52.1 | 54.3 | 58.8 | 60 | 65.7 |
11 | 41.90/40.80 | 46.1 | 58.3 | 63.1 | 65.8 | 71.1 | 72.8 | 78.7 |
12 | 49.80/48.50 | 54.9 | 69.4 | 75.1 | 78.2 | 84.6 | 86.6 | 93.7 |
13 | 58.50/57.00 | 64.4 | 81.5 | 88.1 | 91.8 | 99.3 | 101 | 110 |
14 | 67.80/66.10 | 74.7 | 94.5 | 102 | 107 | 115 | 118 | 127 |
16 | 88.60/86.30 | 97.5 | 123 | 133 | 139 | 150 | 154 | 166 |
18 | 112/109 | 123 | 156 | 169 | 176 | 190 | 195 | 210 |
20 | 138/135 | 152 | 193 | 208 | 217 | 235 | 240 | 260 |
22 | 167/163 | 184 | 233 | 252 | 263 | 284 | 291 | 315 |
24 | 199/194 | 219 | 278 | 300 | 313 | 338 | 346 | 374 |
26 | 234/228 | 258 | 326 | 352 | 367 | 397 | 406 | 440 |
28 | 271/264 | 299 | 378 | 409 | 426 | 461 | 471 | 510 |
30 | 311/303 | 343 | 434 | 469 | 489 | 529 | 541 | 585 |
32 | 354/345 | 390 | 494 | 534 | 556 | 602 | 616 | 666 |
34 | 400/390 | 440 | 557 | 603 | 628 | 679 | 695 | 752 |
36 | 448/437 | 494 | 625 | 676 | 704 | 762 | 780 | 843 |
38 | 500/487 | 550 | 696 | 753 | 785 | 849 | 868 | 940 |
40 | 554/539 | 610 | 771 | 834 | 869 | 940 | 962 | 1041 |
42 | 610/594 | 672 | 850 | 919 | 959 | 1040 | 1061 | 1147 |
44 | 670/652 | 738 | 933 | 1010 | 1050 | 1140 | 1164 | 1260 |
46 | 732/713 | 806 | 1020 | 1100 | 1150 | 1240 | 1273 | 1376 |
48 | 797/776 | 878 | 1110 | 1200 | 1250 | 1350 | 1386 | 1499 |
50 | 865/843 | 953 | 1200 | 1300 | 1360 | 1470 | 1504 | 1626 |
52 | 936/911 | 1030 | 1300 | 1410 | 1470 | 1590 | 1627 | 1759 |
54 | 1010/983 | 1110 | 1410 | 1520 | 1580 | 1710 | 1754 | 1897 |
56 | 1090/1060 | 1190 | 1510 | 1630 | 1700 | 1840 | 1887 | 2040 |
