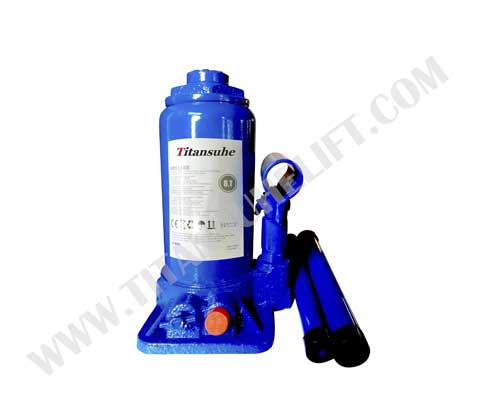

TS series Hydraulic Bottle Jack from TITANSUHE features higher safety that provides more protection to the operators. Equipped with a safety valve, the bottle jack will restrict pumping up once the load exceeds the set value. The bottle jack is well protected to work under rated load and can service a longer life.
Model | Capacity | Min. H | Raising Height (mm) | Adjust H. | N.W. | Qty/Ctn | Meas. | 20'FCL |
(Ton) | (mm) | (mm) | (kg) | (pcs) | (cm) | (pcs) | ||
TS0204 | 2 | 181 | 115 | 50 | 2.4 | 10 | 51x24x19 | 7300 |
TS0204B | 2 | 158 | 90 | 60 | 2.4 | 6 | 34x34x25.5 | 4536 |
TS0404 | 3 or 4 | 195 | 125 | 60 | 3.5 | 8 | 47x26x23 | 5032 |
TS0404B | 3 or 4 | 195 | 125 | 60 | 3.5 | 6 | 55x22x30 | 3860 |
TS0604 | 5 or 6 | 200 | 125 | 80 | 4.5 | 6 | 39x28x23 | 3918 |
TS0604B | 5 or 6 | 200 | 125 | 80 | 4.5 | 4 | 40x27x33 | 3024 |
TS0804 | 8 | 236 | 160 | 80 | 6 | 4 | 31x29x27 | 2628 |
TS1004 | 10 | 240 | 160 | 80 | 6.6 | 4 | 31x29x27 | 2348 |
TS1204 | 12 | 245 | 160 | 80 | 7.8 | 2 | 36x17x27 | 2070 |
TS1604 | 15 or 16 | 250 | 160 | 80 | 8.6 | 2 | 36x17x27 | 1692 |
TS2004 | 20 | 250 | 160 | 80 | 11.5 | 2 | 37x18x27 | 1530 |
TS3204 | 30 or 32 | 285 | 180 | - | 13.2 | 2 | 38x20x31 | 970 |
TS5004 | 50 | 285 | 180 | - | 20 | 1 | 22x21x32 | 765 |
