Material Lifting Trolley & Clamps

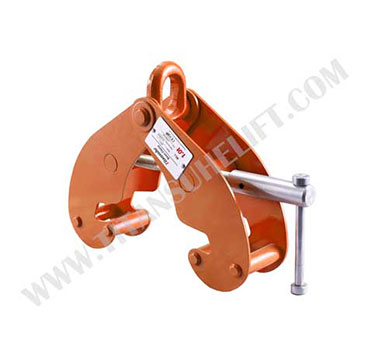

• We offer kinds of different hoist beam clamp and trolley. Beam clamps are designed with a composed and simple structure, its special jaws and threaded handle allow a easily operation when open and close. Fit the jaws onto the flange or beam, then operate the threaded handle to make the clamp tightened will accomplish an easy attaching point.

• Make sure that the beam flange is placed properly within the jaws, and any lifting tools or loading are not allowed to attach on the clamp before installation. Beam clamp are usually served as a attachment point for lifting and installation.




• Plain beam trolley are very good solution that help operator easily pass loads through the beam flange. It allows easily load moving from one place to the other place.

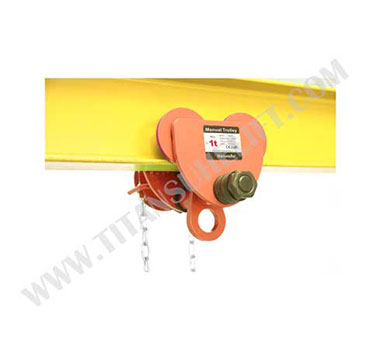

• Geared beam trolley has same working principle as plain trolley, it’s just different in one major structure. Geared beam trolley are installed with gears and chain. It is designed for a precisely moving when pull the geared trolley back and forth on the beam flange.




• Pay attention to put same adjust washers on both sides of the main shaft, so that the main shaft will offset with the hand wheel. Assemble the chain block trolley when it unfastened. Then adjust the side plates allowing the trolley wheels properly sit on the beam. It is important to insert the fix bolt on the interior area of the side plate instead of outer area.

As common lifting equipment types, Beam trolleys benefit construction that applies on sites. They are assembled onto the I-beams and allow loads to pass horizontally through them, freely to carry loads from one place to another. It is usually fitted with chain hoists to carry loads ranging from 0.5ton up to 20 ton.

Plain trolley equipped with lubricated ball bearings to allow smooth moving. Securely tightened and sit the trolley around the beam, with enough room to transit, it's safe to work.

Attach the chain hoist to the beam trolley， then connect the rated load to the hoist, then just push or pull the trolley carefully along the beam.

Make sure to tighten the beam trolley safely and it will pass smoothly. If the wheels are too tight, you won't get any movement and the load won't go, but if it's too loose, you take a risk of losing the equipment and the load or serious accidents.

You'll get a labor-saving set that allows to safely moving of heavy loads on a construction site or workshop,ultimately increasing work efficiency.

The plain trolley are lightweight and durable, suitable for most beams shapes like I,S and W Beams. The surface of the product is powder coated protection, applicable for most environments.

Gearing and ball bearing set make move more safely and freely.

Each product has a traceable serial number for tracking and servicing.
