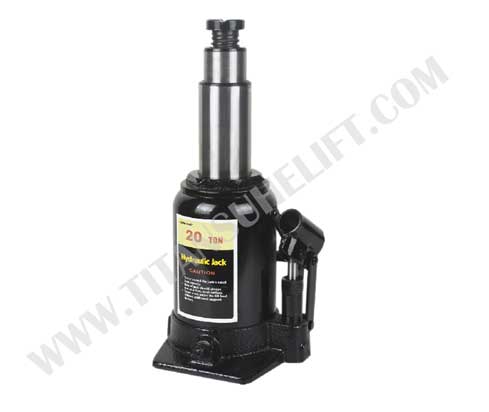

TD Series Double Ram Bottle Jack
TD series Hydraulic Bottle Jack from TITANSUHE features two-stage jacking to an extreme height that the standard bottle jack can not reach.
TD series Hydraulic Bottle Jack from TITANSUHE features two-stage jacking to an extreme height that the standard bottle jack can not reach.
Model | Capacity | Min. H | Raising H. | Adjust. H | N.W/G.W | Q'ty/Ctn | Meas. | 20'FCL |
(t) | (mm) | (mm) | (mm) | (kg) | (pcs) | (cm) | (pcs) | |
TD23021 | 2 | 165 | 98+92 | 55 | 2.9/16 | 5 | 60x21x20 | 5790 |
TD23041 | 4 | 150 | 80+80 | 35 | 4.5/18 | 4 | 61x14x22 | 4300 |
TD23061 | 6 | 154 | 80+80 | 40 | 5.5/23 | 4 | 47x16x21 | 3000 |
TD23081 | 8 | 156 | 80+80 | 40 | 6/25 | 4 | 47x18x21 | 2300 |
TD23101 | 10 | 225 | 140+145 | 50 | 8.5/18 | 2 | 36x18x25.5 | 1820 |
TD23121 | 12 | 230 | 140+145 | 50 | 10.5/22 | 2 | 38x19.5x26 | 1450 |
TD23161 | 16 | 232 | 140+145 | 50 | 12/25 | 2 | 38x19.5x26 | 1200 |
TD23201 | 20 | 235 | 140+145 | 50 | 15.5/16.5 | 1 | 20.5x20x26 | 950 |
TD23301 | 30 | 250 | 140+140 | - | 22/22.5 | 1 | 24x22x27 | 670 |
TD23501 | 50 | 320 | 190+190 | - | 41/41.8 | 1 | 35x28x42 | 330 |
