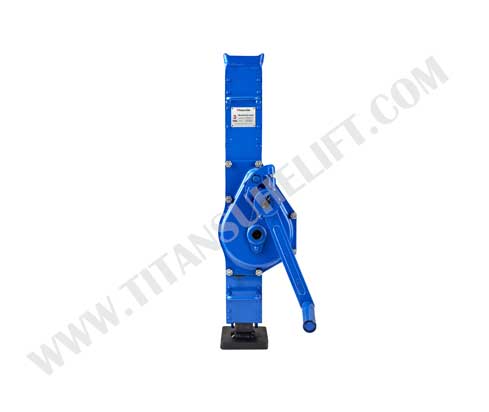

TCSHB Low Profile Mechanical Jack
TITANSUHE's low profile mechanical jack features a super lower bottom jaw which expands the applications, especially for some equipment that has a very limited clear space under the bottom.
Quick View of TCSHB Low Profile Mechanical Jack
Model No.: TCSH-B
Available Jacking Force: 3ton, 5ton and 10ton
Color: Standard in blue, other colors available by request
Packing: Kraft box
Details of TCSHB Low Profile Mechanical Jack
Reliable and Durable Ratchet Mechanism-Head treated with high strength and

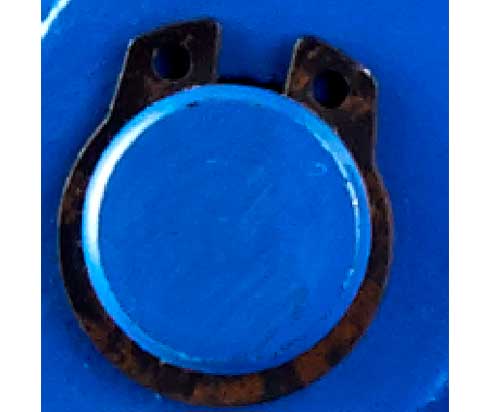

Snap Ring Lock-Can be taken off with special tool, no worry of ratchet pawl loose or drop

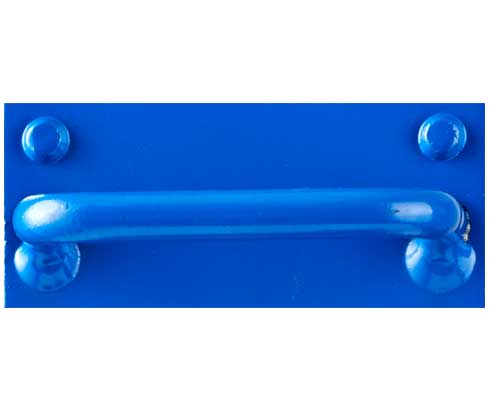

Handle Constructed at Both Side-Easy Carry

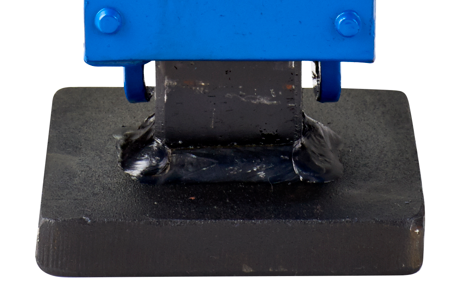

Thick and Strong support plate
Features and Advantages of TCSHB Low Profile Mechanical Jack
High-quality spur gear and robust steel housing offer long service life.
An automatic mechanical brake avoids accidental drop of the shaft and provides safe operation.
The bottom foot of the jack has very low ground clearance. Easily fits under heavy machinery. And The reduced overall height increases the application spectrum extensively.
The load can be positioned on either the head or the claw.
The Crank can rotate at 360° degrees for easy operation and the crane handle can fold away 90° for easy packing and small room applications.
A solid floor plate provides stable operation.
