TCSH303 Lifting Screw Point

TITAN SUHE's rotating eye lifting point is a compact and robust lifting point, ideal for top-mounting and when it is important to have quick and easy on-hooking. The lifting bolt has a hexagon socket which makes it easy to mount and dismount but an even better feature is the marking. On the bolt itself information such as the working load limit, mounting torque is permanently stamped so it’s always available for the operator, should the conditions for the operation change.

Rotating eye lifting point will automatically adjust to the loading direction which decreases the risk to load it incorrectly and endangering the lifting operation. For sensitive load surfaces is ideal, as the connecting sling hooks will be positioned mainly parallel to the load surface, thus completely avoiding the hook causing damage on impact on the load.

Features and Benefits of TCSH303 Lifting Screw Point

Made of high strength alloy steel and grade to 80, Chinese standard and EN standard raw material for choice
Conform with EN1677 specifications
4 to 1 safety factor for overhead lifting purpose
Automatically adjust to the loading direction which decreases the risk to load it incorrectly
Powder painting in yellow color for high visibility. Different colors are available as per request.
Working load limit permanently shown on the body to instruct proper use under rated load
Individually proof tested at 2.5 times of the working load limit.
Can be used under temperature -40゜C-200゜C without reducing of the working load limit
Mill test certificate available for each shipment

Data Sheet of TCSH303 Lifting Screw Point

Size	W.L.L(t)		Dimension(mm)										N.W.
	90°	0°	DxE	B	C	G	T	A	W	N	H	S	(kg/pc)
M8	0.3	0.6	M8x13	36	16.5	51	41	55	30	14	3	1	0.41
M10	0.5	0.9	M10x18	36	16.5	51	41	55	30	14	3	1	0.43
M10x90	0.5	1	M10x90	36	16.5	51	41	55	30	14	3	1	0.38
M12	0.5	1	M12x18	36	16.5	51	41	55	30	14	3	1	0.44
M12x40	0.5	1	M12x40	36	16.5	51	41	55	30	14	3	1	0.52
M12x45	0.5	1	M12x45	36	16.5	51	41	55	30	14	3	1	0.47
M12x110	0.5	1	M12x110	36	16.5	51	41	55	30	14	3	1	0.53
M14	1.12	2	M14x20	36	16.5	51	41	55	30	14	3	1	0.45
M16	1.12	2	M16x35	36	16.5	52	42	55	30	14	3	1	0.46
M16x40	1.12	2	M16x40	36	16.5	52	42	55	30	14	3	1	0.48
M16x100	1.12	2	M16x100	36	16.5	52	42	55	30	14	3	1	0.54
M16x120	1.12	2	M16x120	36	16.5	52	42	55	30	14	3	1	0.6
M20	2	4	M20x30	4.95	19	68	56	70	35	16	3.5	1	0.96
M20x120	2	4	M20x120	4.95	19	68	56	70	35	16	3.5	1	1.17
M24	3.15	6.3	M24x40	57	22	78	65.5	85	40	18	3.5	1.5	1.45
M24x40	3.15	6.3	M24x40	57	22	78	65.5	85	40	18	3.5	1.5	1.42
M24x90	3.15	6.3	M24x90	57	22	78	65.5	85	40	18	3.5	1.5	1.66
M24x120	3.15	6.3	M24x120	57	22	78	65.5	85	40	18	3.5	1.5	1.74
M27	3.15	6.3	M27x35	57	22	78	65.5	85	40	20	3.5	1.5	1.47
M30(5T)	5.3	10.6	M30x35	66	23.5	96.5	80.5	85	40	20	4	1.5	2.17
M30x38	5.3	10.6	M30x38	66	23.5	96.5	80.5	85	40	20	4	1.5	2.18
M30x120	5.3	10.6	M30x120	66	23.5	96.5	80.5	85	40	22	4	1.5	2.65
M30(8T)	8	11.8	M30x35	80	28	112	92	115	50	22	6	2	3.57
M30x38	8	11.8	M30x38	80	28	112	92	115	50	22	6	2	3.58
M30x120	8	11.8	M30x120	80	28	112	92	115	50	22	6	2	4.01
M36x90	8	11.8	M36x90	80	27	109	89.5	115	50	22	6	2	4.17
M36x400	8	11.8	M36x400	80	27	109	89.5	115	50	22	6	2	6.41
M39	8	11.8	M39x50	80	27	109	89.5	115	50	22	6	2	3.65
M39x90	8	11.8	M39x90	80	27	109	89.5	115	50	22	6	2	3.71
M42	10	15	M42x50	80	27	109	89.5	115	50	25	6	2.5	3.62
M42x60	10	15	M42x60	80	27	109	89.5	115	50	25	6	2.5	6.72
M42x130	10	15	M42x130	80	27	109	89.5	115	50	25	6	2.5	4.46
M42x180	10	15	M42x180	80	27	109	89.5	115	50	25	6	2.5	5
M45x60	10	15	M45x60	80	27	109	89.5	115	50	25	6	2.5	4.17
M48	10	15	M48x50	80	27	109	89.5	115	50	25	6	2.5	4.02
M48x110	10	15	M48x110	80	27	109	89.5	115	50	25	6	2.5	4.8
M56x84	15	25	M56x84	117	42	310	280	152	70	32	7	2.5	11.6
M64x95	15	25	M6x95	117	42	310	280	152	70	32	7	2.5	12.4

As a manufacturing group and professional supplier of lifting chain assembly, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.

TCSH303 Lifting Screw Point

Features and Benefits of TCSH303 Lifting Screw Point

Data Sheet of TCSH303 Lifting Screw Point

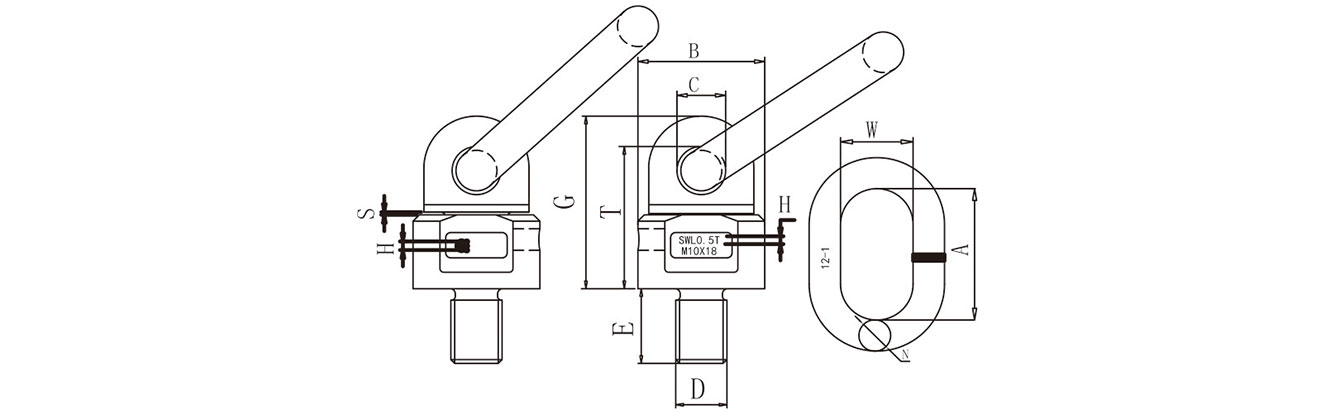

Drawing of TCSH303 Lifting Screw Point
