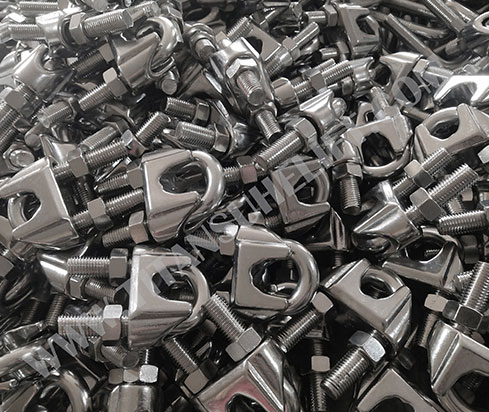

TITANSUHE provide all kinds of wire rope clips in stainless steel materials that grade to 304, 316 or 316L.These clips are used for the applications where the extreme corrosion resistance required such as marine industry, oil and gas field, chemical factory. It is also used in the clean room.

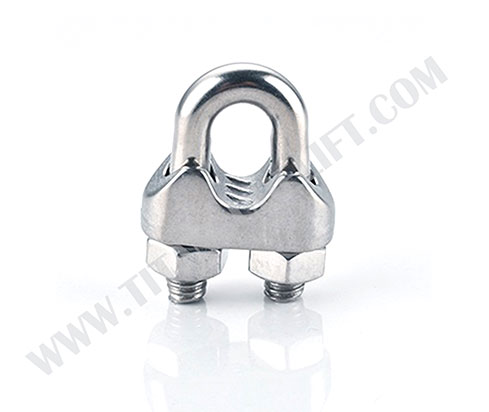

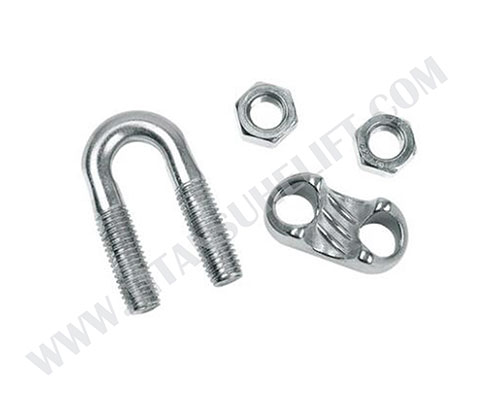

1)U.S type Wire Rope Clip, Stainless Steel, AISI 304 or 316
Size | Dimension(mm) | N.W. | ||||||
(in) | A | B | C | D | E | F | G | (g/pc) |
1/8 | 11 | 14 | 14 | 5 | 10.8 | 22 | 20 | 15 |
3/16 | 13.5 | 15 | 16 | 6 | 13 | 26 | 24 | 30 |
1/4 | 17 | 18.5 | 20 | 8 | 15 | 32 | 31.5 | 52 |
5/16 | 18.3 | 20 | 22 | 8 | 16 | 35 | 34 | 60 |
3/8 | 22.5 | 22 | 27 | 10 | 22 | 40.5 | 41.8 | 100 |
7/16 | 24 | 23 | 30 | 10 | 22 | 43 | 42.8 | 110 |
1/2 | 27 | 26 | 35 | 12 | 23.3 | 49 | 53.9 | 174 |
9/16 | 30 | 26.5 | 40 | 14 | 27 | 52.5 | 54.7 | 225 |
5/8 | 33 | 28.5 | 40 | 14 | 28 | 57.5 | 59.2 | 248 |

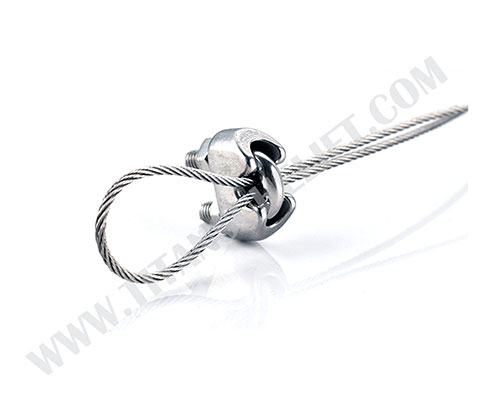

2)DIN741 Wire Rope Clip, Stainless Steel, AISI 304 or 316
Size | Dimension(mm) | N.W. | ||||||
(mm) | A | B | C | D | E | F | G | (g/pc) |
3 | 9 | 10 | 12 | 4 | 10 | 21 | 16 | 14 |
5 | 11 | 11 | 13 | 5 | 10 | 23 | 19 | 15 |
6 | 13 | 12 | 15 | 5 | 11 | 26 | 23 | 21 |
8 | 16 | 14 | 19 | 6 | 15 | 30 | 28 | 41 |
10 | 19 | 18 | 22 | 8 | 17 | 34 | 34 | 68 |
11 | 20 | 19 | 22 | 8 | 18 | 36 | 36 | 72 |
13 | 24 | 23 | 30 | 10 | 21 | 42 | 45 | 130 |
14 | 25 | 23 | 30 | 10 | 22 | 44 | 47 | 135 |
16 | 29 | 26 | 33 | 12 | 26 | 50 | 51 | 210 |
19 | 32 | 29 | 38 | 12 | 30 | 54 | 63 | 280 |
22 | 37 | 33 | 44 | 14 | 34 | 61 | 71 | 400 |

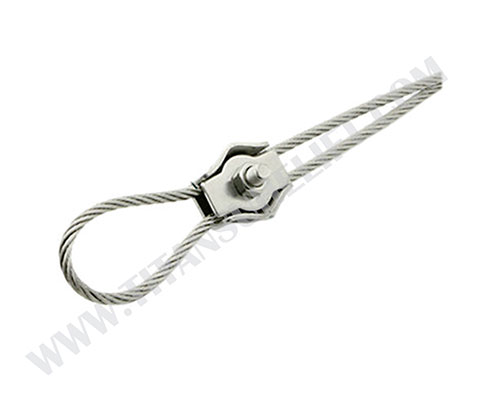

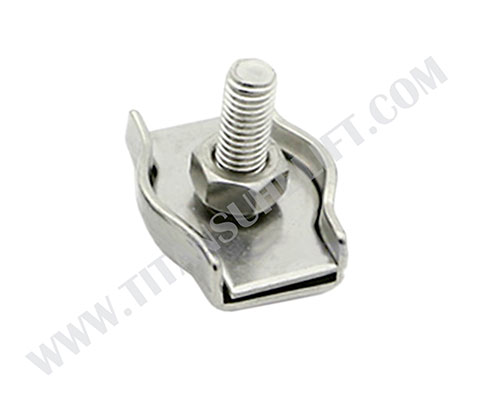

3)Simplex Wire Rope Clips, Stainless Steel AISI 304 or 316
Size | Dimension(mm) | N.W. | |
(mm) | L | D | (kg/pc) |
2 | 18.5 | M4 | 0.005 |
3 | 20 | M4 | 0.007 |
4 | 22.5 | M5 | 0.012 |
5 | 26 | M6 | 0.019 |
6 | 30 | M6 | 0.027 |
8 | 36 | M8 | 0.05 |
10 | 42 | M10 | 0.073 |

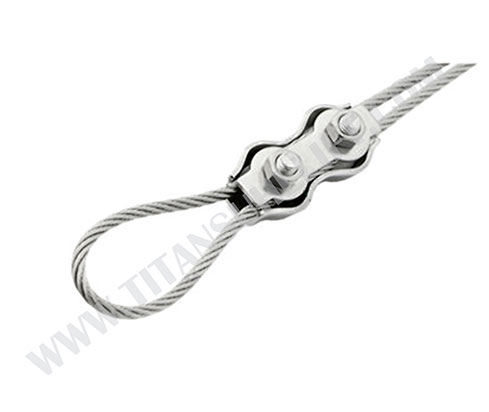

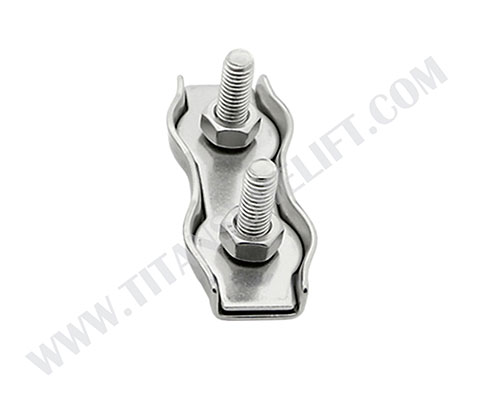

4)Duplex Wire Rope Clips, Stainless Steel AISI 304 or 316
Size | Dimension(mm) | N.W. | |
(mm) | L | D | (kg/pc) |
2 | 37 | M4 | 0.009 |
3 | 40 | M4 | 0.013 |
4 | 45 | M5 | 0.023 |
5 | 52 | M6 | 0.038 |
6 | 60 | M6 | 0.054 |
8 | 72 | M8 | 0.102 |
10 | 84 | M10 | 0.145 |
Titansuhe have wire rope components bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
