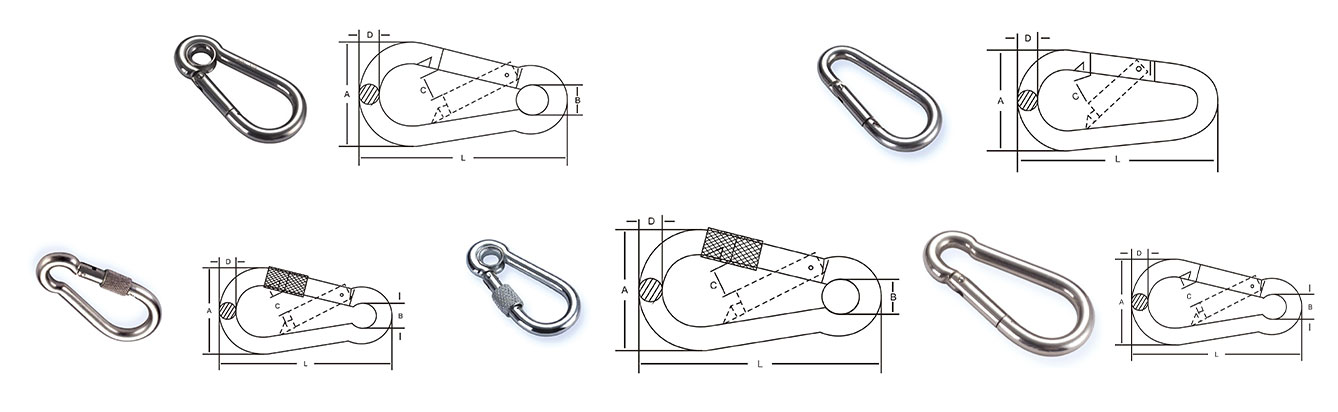

Data Sheet of Stainless Steel Snap Hooks

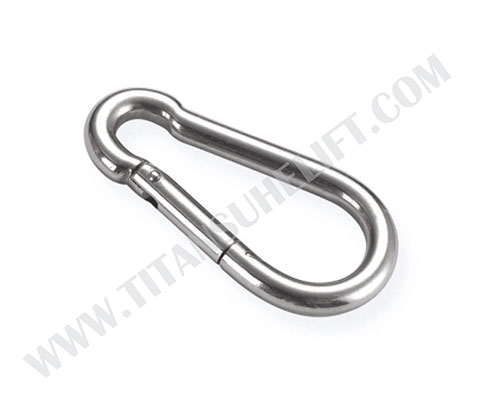

Snap Hook DIN 5299 C, Stainless Steel AISI 304 or AISI 316
Size | Dimension(mm) | W.L.L | N.W. |
(mm) | A | B | C | D | L | (lbs) | (g/pc) |
4×40 | 20 | 7 | 7 | 4 | 40 | 80 | 8.2 |
5×50 | 25 | 8 | 7 | 5 | 50 | 100 | 18.3 |
6×60 | 30 | 9 | 8 | 6 | 60 | 140 | 28.4 |
7×70 | 35 | 10 | 8 | 7 | 70 | 200 | 45.7 |
8×80 | 40 | 12 | 9 | 8 | 80 | 250 | 71.1 |
9×90 | 45 | 12 | 10 | 9 | 90 | 280 | 91.4 |
10×100 | 50 | 16 | 11 | 10 | 100 | 400 | 146.2 |
11×120 | 57 | 18 | 16 | 11 | 120 | 500 | 194.5 |
12×140 | 67 | 20 | 19 | 12 | 140 | 60 | 274 |
13×160 | 74 | 22 | 25 | 13 | 160 | 700 | 362 |
14×180 | 86 | 79 | 35 | 14 | 180 | 900 | 500 |

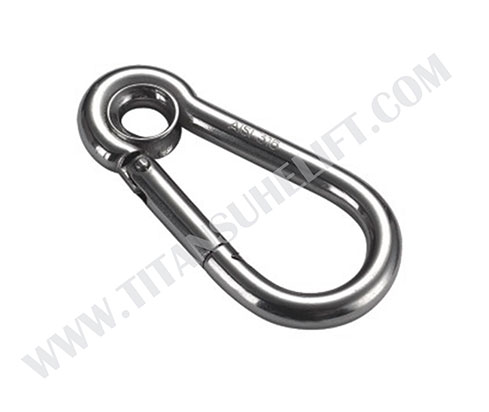

Snap Hook with Eye DIN 5299 A, Stainless Steel AISI 304 or AISI 316
Size | Dimension(mm) | W.L.L | N.W. |
(mm) | A | B | C | D | L | (lbs) | (g/pc) |
4×40 | 20 | 5 | 7 | 4 | 40 | 80 | 8.5 |
5×50 | 25 | 5 | 7 | 5 | 50 | 100 | 18.8 |
6×60 | 30 | 5 | 8 | 6 | 60 | 140 | 29 |
7×70 | 35 | 7 | 8 | 7 | 70 | 200 | 47 |
8×80 | 40 | 10 | 9 | 8 | 80 | 250 | 73 |
9×90 | 45 | 10 | 10 | 9 | 90 | 280 | 98 |
10×100 | 50 | 13 | 11 | 10 | 100 | 400 | 149 |
11×120 | 57 | 13 | 16 | 11 | 120 | 500 | 210 |
12×140 | 67 | 15 | 19 | 12 | 140 | 600 | 279 |
13×160 | 74 | 17 | 25 | 13 | 160 | 700 | 365 |

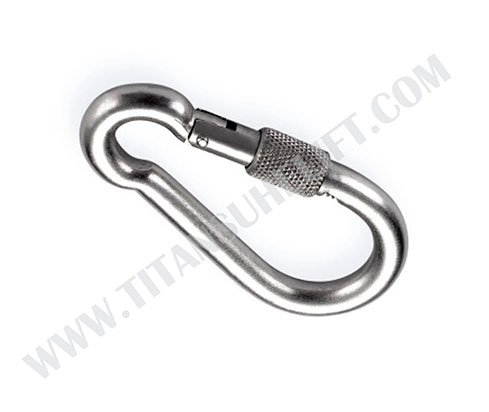

Stainless steel Snap Hook with Screw DIN 5299 D AISI 304 or AISI 316
Size | Dimension(mm) | W.L.L | N.W. |
(mm) | A | B | C | D | L | (lbs) | (g/pc) |
5×50 | 25 | 8 | 7 | 5 | 50 | 100 | 20 |
6×60 | 30 | 9 | 8 | 6 | 60 | 140 | 32 |
7×70 | 35 | 10 | 8 | 7 | 70 | 200 | 50 |
8×80 | 40 | 12 | 9 | 8 | 80 | 250 | 75 |
9×90 | 45 | 12 | 10 | 9 | 90 | 280 | 98 |
10×100 | 50 | 15 | 11 | 10 | 100 | 400 | 160 |
11×120 | 57 | 18 | 16 | 11 | 120 | 500 | 210 |
12×140 | 67 | 20 | 19 | 12 | 140 | 600 | 284 |
13×160 | 74 | 22 | 25 | 13 | 160 | 700 | 367 |

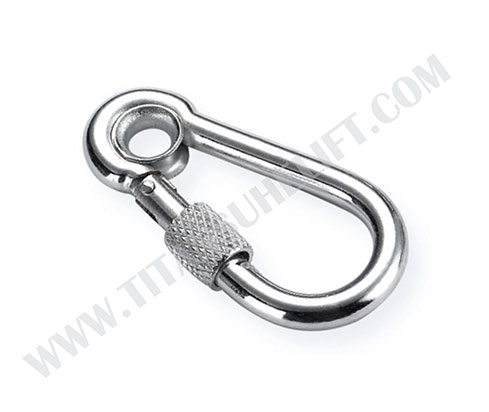

Snap Hook with Eye and Screw, Stainless Steel AISI 304 or AISI 316
Size | Dimension(mm) | W.L.L | N.W. |
(mm) | A | B | C | D | L | (lbs) | (g/pc) |
5×50 | 25 | 5 | 7 | 5 | 50 | 100 | 21 |
6×60 | 30 | 5 | 8 | 6 | 60 | 140 | 32 |
7×70 | 35 | 7 | 8 | 7 | 70 | 200 | 50 |
8×80 | 40 | 10 | 9 | 8 | 80 | 250 | 77 |
9×90 | 45 | 10 | 10 | 9 | 90 | 280 | 99 |
10×100 | 50 | 13 | 11 | 10 | 100 | 400 | 162 |
11×120 | 57 | 13 | 16 | 11 | 120 | 500 | 220 |
12×140 | 67 | 15 | 19 | 12 | 140 | 600 | 288 |
13×160 | 74 | 17 | 25 | 13 | 160 | 700 | 380 |

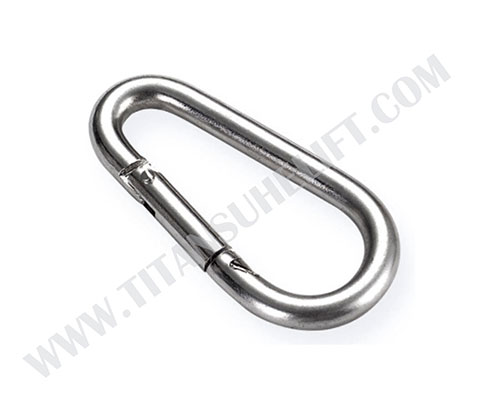

Straight Snap Hook DIN 5299B, Stainless Steel
Size | Dimension(mm) | W.L.L | N.W. |
(mm) | A | C | D | L | (lbs) | (g/pc) |
5×50 | 25 | 7 | 5 | 50 | 100 | 19.5 |
6×60 | 30 | 8 | 6 | 60 | 140 | 31.8 |
7×70 | 35 | 8 | 7 | 70 | 200 | 50 |
8×80 | 40 | 9 | 8 | 80 | 250 | 76 |
9×90 | 45 | 10 | 9 | 90 | 280 | 98 |
10×100 | 50 | 11 | 10 | 100 | 400 | 153 |
11×120 | 57 | 16 | 11 | 120 | 500 | 204 |
12×140 | 67 | 19 | 12 | 140 | 600 | 289 |
