Stainless Steel Round Ring and D Ring
Welded round ring and D rings are made from grade 304 stainless steel and grade 316 stainless steel. If their application areas are marine and biogas, we recommend you choose grade 316 stainless steel.
Details of Stainless Steel Round Ring and D Ring
Type: Stainless steel D Rings hardware/Stainless steel Round Ring Hardware
Material: Stainless steel AISI304, AISI316
Surface treatment: Polished
Packing: Carton, pallet/by customer requirements
Certifications: ISO9001, CE, SGS

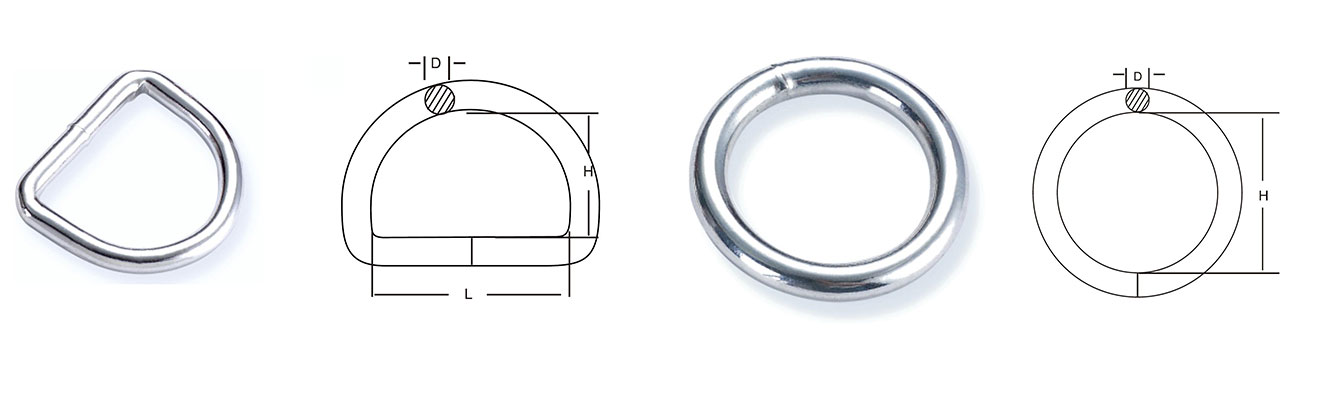

Data Sheet of Stainless Steel Round Ring and D Ring
Stainless Steel D Rings, AISI 304 or AISI 316
Size | Dimension(mm) | N.W. | ||
(mm) | D | H | L | (g/pc) |
4×25 | 4 | 25 | 22 | 9.7 |
4×30 | 4 | 25 | 27 | 44 |
4×40 | 4 | 30 | 37 | 14.5 |
5×40 | 5 | 30 | 37 | 22.5 |
5×50 | 5 | 32 | 47 | 27 |
6×40 | 6 | 40 | 37 | 34 |
6×50 | 6 | 50 | 47 | 42 |
6×60 | 6 | 30 | 47 | 48 |
8×40 | 8 | 40 | 37 | 63 |
8×50 | 8 | 48 | 50 | 75 |
Stainless Steel Round Rings, AISI 304 or AISI 316
Size | Dimension(mm) | N.W. | |
(mm) | D | H | (g/pc) |
4×25 | 4 | 25 | 9.1 |
4×30 | 4 | 30 | 11 |
4×40 | 4 | 40 | 14 |
5×40 | 5 | 40 | 22 |
5×50 | 5 | 50 | 26 |
6×40 | 6 | 40 | 33 |
6×50 | 6 | 50 | 40 |
6×60 | 6 | 60 | 47 |
7×35 | 7 | 35 | 42 |
8×40 | 8 | 40 | 61 |
Feature of Stainless Steel Round Ring and D Ring
Stainless Steel D Rings and round rings are suitable for the connection of yoga hammocks, tents, bags or pendants
Stainless steel material which is waterproof and rust prevention
Various in specifications, support customization
