TITANSUHE's stainless steel pallet truck is used for the material handling in clean room some harsh environments that need extreme corrosion resistance. Our stainless steel pallet truck can come either with or without scale for general use and multi-function operations. When it come with scale, the built-in load cell can reach ±0.1% accuracy and maintenance free rechargeable Lithium acid battery gives a 45 hours standby time.
SBC: Large Screen
SBC-P: Large Screen with Printer
SBC-E: Small Screen
Model | SBC | SBC-P | SBC-E | ||
Capacity | kg | 2000kg | 2000kg | 2000kg | |
Driven Wheel | mm | Φ180x50 | Φ180x50 | Φ180x50 | |
Steering Wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 | |
Lifting Height | mm | 190 | 190 | 190 | |
Lowered Height | mm | 80 | 80 | 80 | |

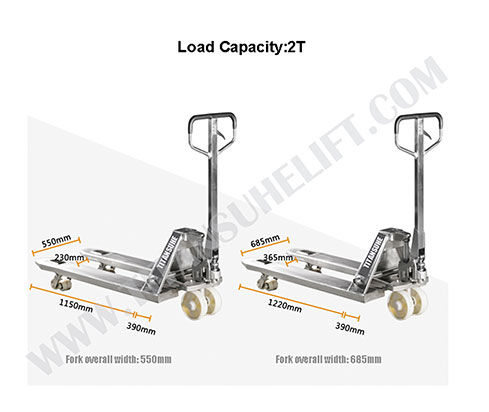

Overall Length | mm | 1561/1631 | 1561/1631 | 1561/1631 | |
Fork Width | mm | 550/685 | 550/685 | 550/685 | |
Fork Length | mm | 1150 | 1150 | 1150 | |
Turning Radius | mm | 1365/1435 | 1365/1435 | 1365/1435 | |
Battery | V/Ah | 6V/2.5Ah | 6V/2.5Ah | 6V/2.5Ah | |
Height of tiller in drive postion max. | mm | 1200 | 1200 | 1200 |
