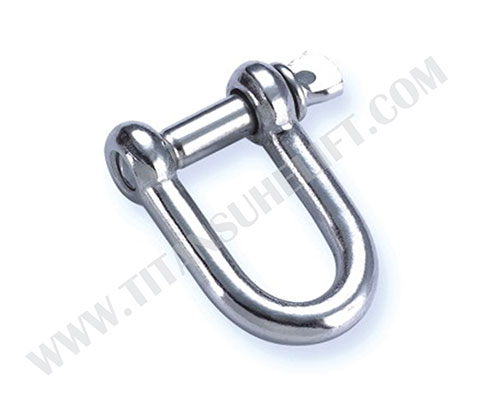

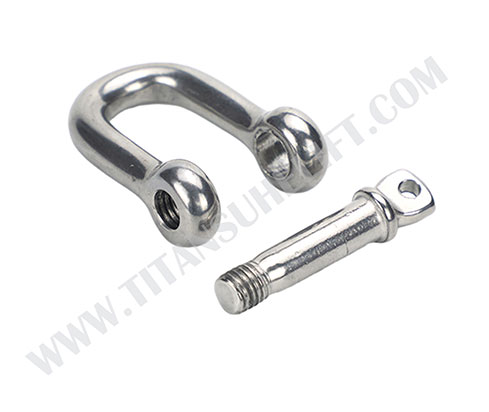

TITANSUHE provides stainless steel chain shackles in European type, U.S. type and long D type. These shackles are all used as an lifting point or anchor point when it connect with the object to lift or secure. They are used to work as end fitting too when they connect with chain, wire rope or straps to make lifting slings. We provide stainless steel shackle with material grade 304 and 316. They can be screw pin locked safety bolt self locking,

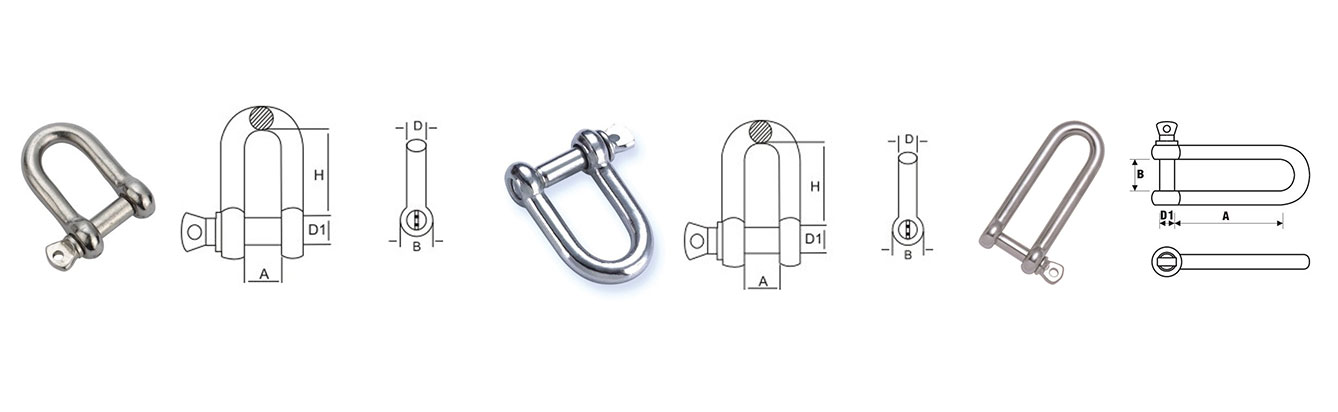

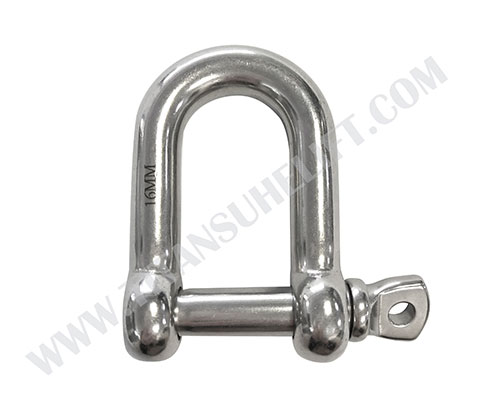

1) European Type Dee Shackle, Stainless Steel AISI 304 or AISI 316
Size | Dimension(mm) | Working Load Limit | N.W. | ||||
(mm) | H | A | B | D | D1 | (kg) | (g/pc) |
5 | 20 | 10 | 11 | 5 | 5 | 80 | 18 |
6 | 25 | 13 | 14 | 6 | 6 | 100 | 32 |
8 | 32 | 16 | 18 | 8 | 8 | 200 | 67 |
10 | 38 | 19 | 20 | 10 | 10 | 320 | 126 |
12 | 51 | 25 | 26 | 12 | 12 | 520 | 235 |
16 | 64 | 32 | 33 | 16 | 16 | 800 | 495 |
20 | 76 | 38 | 40 | 20 | 20 | 1100 | 790 |
22 | 89 | 44 | 50 | 22 | 22 | 1500 | 1280 |
25 | 100 | 51 | 57 | 25 | 25 | 2100 | 1980 |
28 | 115 | 57 | 73 | 28 | 28 | 3000 | 2970 |
2) U.S Type Dee Shackle, Stainless Steel, AISI 304 or AISI 316
Size | Dimension(mm) | D1 | Working Load Limit | N.W. | |||
(in) | H | A | B | D | (in) | (lbs) | (g/pc) |
3/16 | 22 | 9 | 14 | 5 | 1/4 | 250 | 21 |
1/4 | 28 | 12 | 15 | 6 | 5/16 | 330 | 50 |
5/16 | 31 | 13 | 19 | 8 | 3/8 | 500 | 77 |
3/8 | 36 | 16 | 23 | 10 | 7/16 | 750 | 109 |
7/16 | 42 | 18 | 27 | 11 | 1/2 | 1000 | 182 |
1/2 | 48 | 21 | 30 | 12 | 5/8 | 1500 | 268 |
5/8 | 60 | 27 | 38 | 16 | 3/4 | 2250 | 550 |
3/4 | 71 | 32 | 46 | 20 | 7/8 | 3250 | 1020 |
7/8 | 84 | 36 | 53 | 22 | 1 | 4250 | 1440 |
1 | 95 | 43 | 60 | 25 | 1 1/8 | 5500 | 2150 |
3)U.S Type Dee Shackle, Stainless Steel, AISI 304 or AISI 316
Size | Dimension(mm) | W.L.L | N.W. | ||
(mm) | A | B | D1 | (kg) | (g/pc) |
4 | 30 | 8 | 4 | 60 | 18 |
5 | 37 | 10 | 5 | 80 | 32 |
6 | 45 | 12 | 6 | 100 | 67 |
8 | 60 | 16 | 8 | 200 | 126 |
10 | 75 | 20 | 10 | 320 | 235 |
12 | 90 | 24 | 12 | 520 | 495 |
14 | 105 | 28 | 14 | 700 | 790 |
16 | 120 | 30 | 16 | 800 | 1280 |
Titansuhe supply wire rope sling parts, we engaged in the design, manufacturing, and distribution of various lifting tools, equipment, rigging hardware, elevator and elevator parts more than 15 years.
