Stainless Steel Cable 7x7

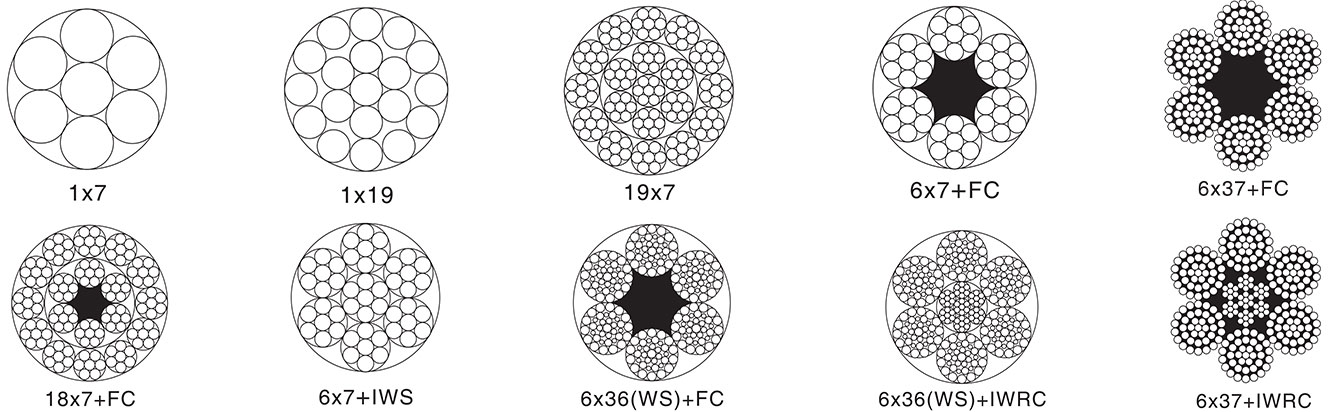

With the performance of super corrosion resistance,stainless steel cable is mainly used for outdoor purpose and some field with harsh environment such as minging, bridge, oil&gas industry, shipyard, offshore equipment and so on. TITANSUHE provide a wide range construction such as 7x7, 7x19, 6x36, 6x12, 6x19, 6x41, 6x37, 19x7, 35x7, etc. All these wire ropes are available with material AISI304, AISI316 or AISI316L.

Data Sheet of Stainless Steel Cable 7x7

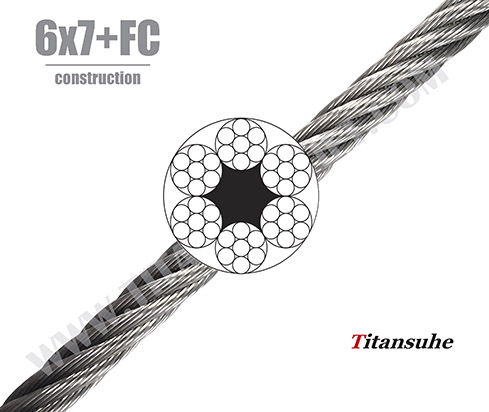

Construction: 6x7+FC, 6x7+WSC (7x7)

Specification: DIN3055

Application: Mining, Stay Wire, Logging, Tramway, Marine

Material: AISI304, AISI316, AISI316L

Nominal	Approx		Nominal Tensile Strength
Diameter	Weight		Minimum Breaking Strength (kN)
mm	kg/100m		1570N/mm2		1770N/mm2
	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
2	1.43	1.57	-	-	2.35	2.54
3	3.22	3.54	-	-	5.29	5.71
4	5.72	6.29	-	-	9.41	10.2
5	8.94	9.83	-	-	14.7	15.9
6	12.9	14.2	-	-	21.1	22.9
7	17.5	19.3	-	-	28.8	31.1
8	22.9	25.2	33.4	36.1	37.6	40.6
9	28.9	31.8	42.2	45.6	47.6	51.4
10	35.7	39.3	52.2	56.3	58.8	63.5
11	43.2	47.5	63.1	68.2	71.1	76.8
12	51.5	56.7	75.1	81.1	84.7	91.5
13	60.4	66.4	88.1	95.2	99.4	107
14	70.1	77.1	102	110	115	124
16	91.5	101	134	144	151	163

Construction: 6x19+FC, 6x19+IWRC (7x19)

Specification: DIN3055

Application: Mining, Stay Wire, Logging, Tramway, Marine

Material: AISI304, AISI316, AISI316L

Nominal	Approx		Nominal Tensile Strength
Diameter	Weight		Minimum Breaking Strength (kN)
mm	kg/100m		1570N/mm2		1770N/mm2
	FC	IWRC	FC	IWRC	FC	IWRC
3	3.11	3.42	-	-	4.9	5.29
4	5.54	6.09	-	-	8.7	9.4
5	8.65	9.52	-	-	13.6	14.7
6	12.5	13.8	-	-	19.6	21.2
7	17	18.7	-	-	26.7	28.8
8	22.1	24.3	30.9	33.3	34.8	37.6
9	28	30.8	39.1	42.2	44.1	47.6
10	34.6	38.1	48.2	52.1	54.4	58.8
11	41.9	46.1	58.4	36.1	65.8	71.1
12	49.8	54.8	69.5	75	78.3	84.6
13	58.5	64.3	81.5	88.1	91.9	99.3
14	67.8	74.6	94.6	102	107	115
16	88.6	97.4	124	133	139	150

Construction: 6x37+FC, 6x37+IWRC

Specification: DIN3066

Application: Mining, Stay Wire, Logging, Tramway, Marine

Material: AISI304, AISI316, AISI316L

Nominal	Approx		Nominal Tensile Strength
Diameter	Weight		Minimum Breaking Strength (kN)
mm	kg/100m		1570N/mm2		1770N/mm2
	FC	IWRC	FC	IWRC	FC	IWRC
6	12.5	13.7	-	-	18.8	20.3
7	17	18.6	-	-	25.6	27.6
8	22.1	24.3	29.6	32	33.4	36.1
9	28	30.8	37.5	40.4	42.3	45.7
10	34.6	38.1	46.3	50	52.2	56.4
11	41.9	46.1	56	60.5	63.1	68.2
12	49.8	54.8	66.6	72	75.1	81.2
13	58.5	64.3	78.2	84.5	88.2	95.2
14	67.8	74.6	90.7	98	102	110
16	88.6	97.4	118	128	134	144
18	112	123	150	162	169	183
20	138	152	185	200	209	225
22	168	184	224	242	253	273

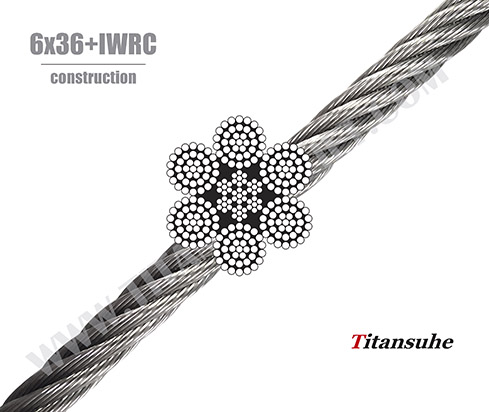

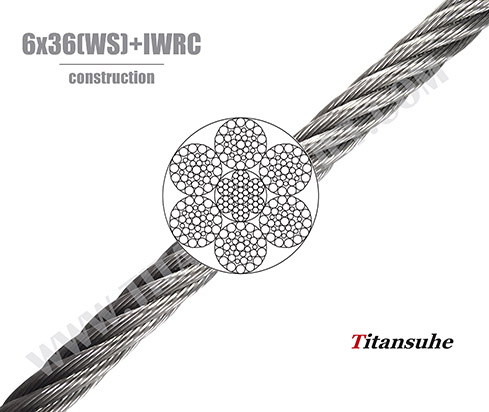

Construction: 6x36+FC, 6x36+IWRC

Material: AISI304, AISI316, AISI316L

Nominal	Approx		Nominal Tensile Strength
Diameter	Weight		Minimum Breaking Strength (kN)
mm	kg/100m		1570N/mm2		1770N/mm2
	FC	IWRC	FC	IWRC	FC	IWRC
12	54.7	60.2	74.4	80.6	84	89.9
13	64.3	70.7	87.4	94.6	98.3	106
14	74.5	82	101	109	114	124
16	97.3	107	133	143	149	161
18	123	135	168	181	189	204
20	152	167	203	223	233	252
22	184	202	250	270	282	304
24	219	241	298	321	336	362
26	257	283	340	377	394	425
28	298	328	405	438	457	493
30	342	376	466	503	525	567
32	389	428	530	572	598	644
34	439	483	598	646	675	728
36	493	542	671	724	766	816
38	549	604	748	807	-	-
40	608	669	828	894	-	-
42	670	737	913	985	-	-
44	736	810	1000	1080	-	-

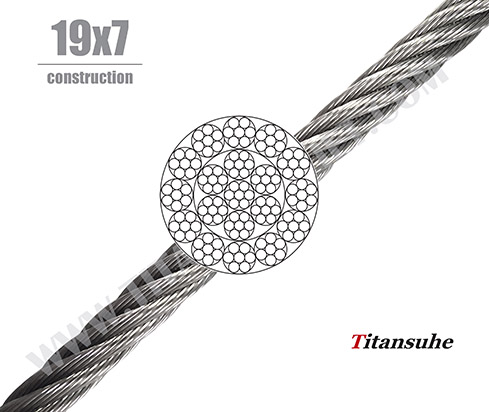

Construction: 18X7+FC, 19X7

Material: AISI304, AISI316, AISI316L

Nominal	Approx		Nominal Tensile Strength
Diameter	Weight		Minimum Breaking Strength (kN)
mm	kg/100m		1570N/mm2		1770N/mm2
	FC	IWRC	FC	IWRC	FC	IWRC
4	6.12	6.43	-	-	9.02	9.29
5	9.57	10	-	-	14.1	14.5
6	13.8	14.5	-	-	20.3	20.9
7	18.8	19.7	-	-	27.6	28.5
8	24.5	25.7	32	33	36.1	37.2
9	31	32.6	40.5	41.7	45.7	47
10	38.3	40.2	50	51.5	56.4	58.1
11	46.3	48.6	60.5	62.3	68.2	70.3
12	55.1	57.9	72	74.2	81.2	83.6
13	64.7	67.9	84.5	87.1	95.3	98.1
14	75	78.8	98	101	111	114
16	98	103	128	132	144	149
18	124	130	162	167	193	188
20	153	161	200	206	226	232
22	185	195	242	249	273	281
24	220	231	288	297	325	335
26	259	272	338	348	381	393

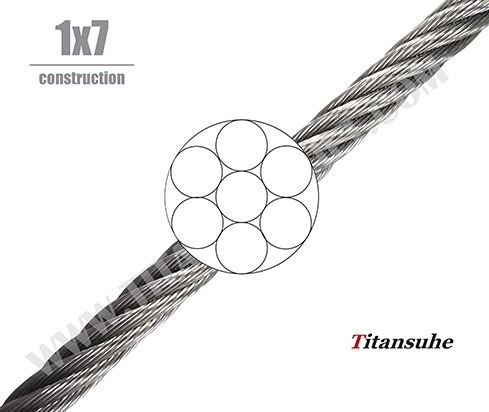

Construction: 1x7

Material: AISI304, AISI316, AISI316L

Construction	Nominal	Approx	Nominal Tensile Strength
	Diameter	Weight	Minimum Breaking Strength (kN)
	mm	kg/100m	1570N/mm²	1770N/mm²
1x7	0.6	0.18	0.308	0.347
	0.8	0.32	0.547	0.617
	1	0.5	0.855	0.963
	1.5	1.13	1.92	2.17
	2	2.01	3.42	3.85
	2.5	3.14	5.34	6.02
	3	4.52	7.69	6.67
	3.5	6.15	10.5	11.8
	4	8.03	13.7	15.4
	4.5	10.2	17.3	19.5
	5	12.6	21.4	24.1
	6	18.1	30.8	34.7
	7	24.6	41.9	47.2

Construction: 1x19

Material: AISI304, AISI316, AISI316L

Construction	Nominal	Approx	Nominal Tensile Strength
	Diameter	Weight	Minimum Breaking Strength (kN)
	mm	kg/100m	1570N/mm²	1770N/mm²
1x19	1	0.5	0.825	0.93
	1.5	1.11	1.86	2.09
	2	1.98	3.3	3.72
	2.5	3.1	5.15	5.81
	3	4.46	7.42	8.37
	3.5	6.07	10.1	11.4
	4	7.93	13.2	14.9
	5	12.4	20.6	23.2
	6	17.8	29.7	33.5
	7	24.3	40.4	45.6
	8	31.7	52.8	59.5
	9	40.1	66.8	75.3
	10	49.5	82.5	93

Still not find the material handling equipment you need, Contact Titansuhe for custom wire sling parts.
