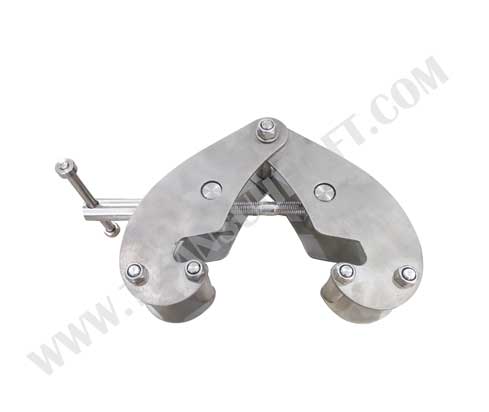

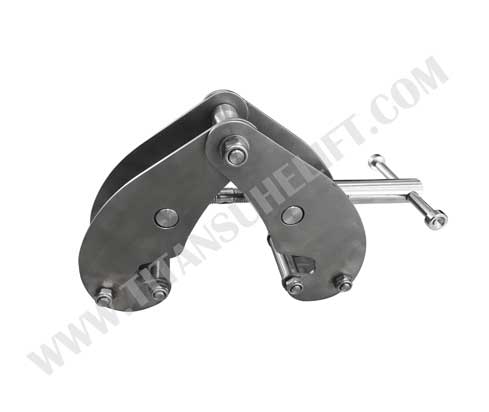

JG-S Stainless Steel Beam Clamp

Name: JG-S Stainless Steel Beam Clamp
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

TITANSUHE's Stainless Steel Lifting Equipment includes stainless steel chain hoist, stainless steel hoist trolley, stainless steel beam clamp, stainless steel hand winch, and stainless steel rigging. All these products are specially designed for the applications in clean room, food industry that need very clean operation or these harsh applications that need super anti-corrosion such as chemical industry, oil and gas field and offshore purpose. Our JG-S beam clamp is your ideal solution as an anchoring point for these stainless steel lifting equipment.

Get A Quote





Quick View of JG-S Stainless Steel Beam Clamp

Model No.: JG-S
Material: Stainless Steel
Capacity: 1t up to 10t
Flange width: from 75-320mm for different capacity
Color: Powder painting in orange, other colors are available upon request
Packing: Kraft box

Features and Advantages of JG-S Stainless Steel Beam Clamp

Clean Operation- Oily free, suitable to use in cleanroom or food industry.
Rust Free- Super resistant to corrosion, widely used in harsh environments with much humidity, bad weather, acidic factories, and so on.
Wide Clamping open- 75-320mm opening, suitable for the different sizes I beam and H beam.
Zinc Plated Screw handle- Provide oily free operation.
Quick and Easy Installation- Simply rotate the screw handle to clamp or loose.
Built-in Shaft- Reduce headroom and gives more space for operation.
Heavy Duty- Tight and Durable Clamping.

Data Sheet of Stainless Steel Beam Clamp

Capacity (KG)	Adjustable Beam width (mm)	A Max. mm	B Min.mm	B Max. mm	Dimension(mm)							Weight (KG)
Capacity (KG)	Adjustable Beam width (mm)	A Max. mm	B Min.mm	B Max. mm	C	D	E	F Min.	F Max.	G	H	Weight (KG)
1000	75-230	278	180	370	62	5	230	100	160	30	25	4
2000	75-230	278	180	370	67	6	230	100	160	35	28	4.4
3000	80-320	356	230	480	100	8	260	125	210	45	32	8.6
5000	80-320	356	230	480	110	10	260	125	210	50	38	10.7
10000	80-320	356	230	490	115	12	270	170	240	65	43	14.5

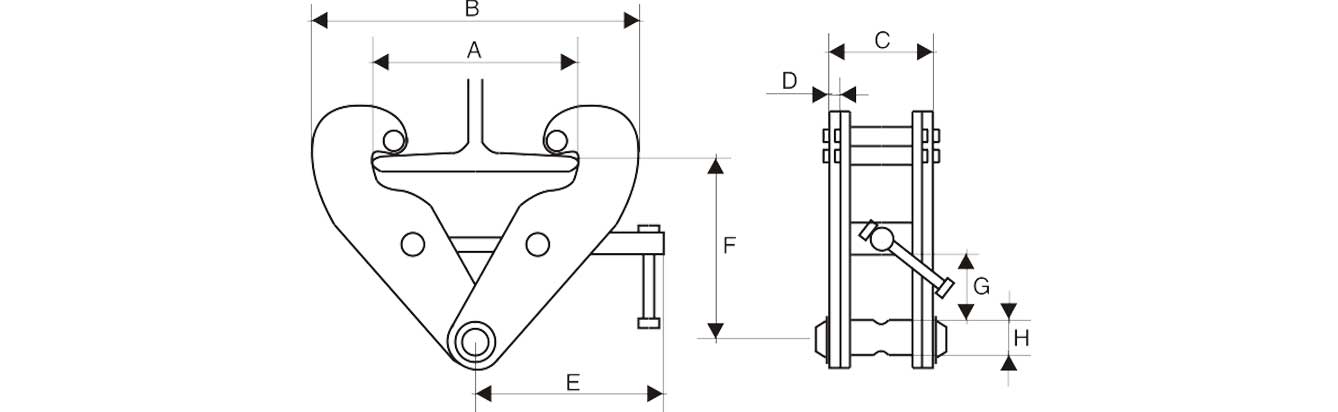

Drawing of JG-S Stainless Steel Beam Clamp
