Small Pulley, Single Wheel And Double Wheel
TITAN SUHE provides a wide range of small pulley. They are coming with eye type, swivel eye type, steel wheel, nylon wheel, single wheel and double wheel.
Data Sheet of Small Pulley, Single Wheel And Double Wheel

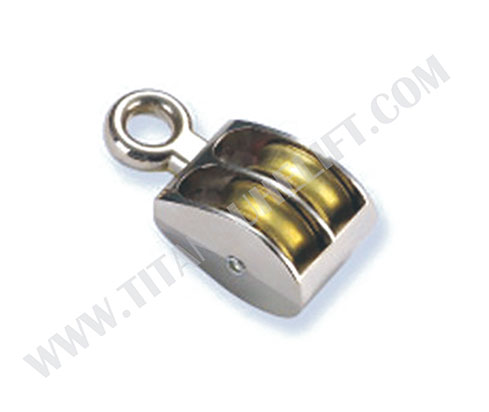

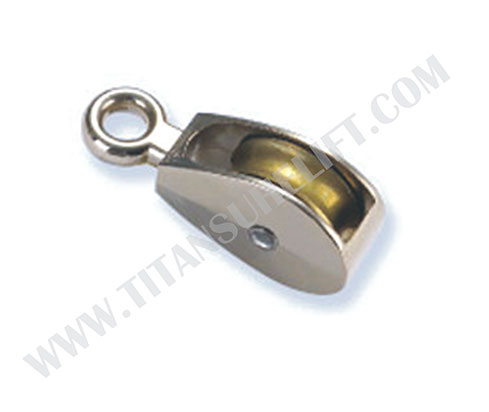

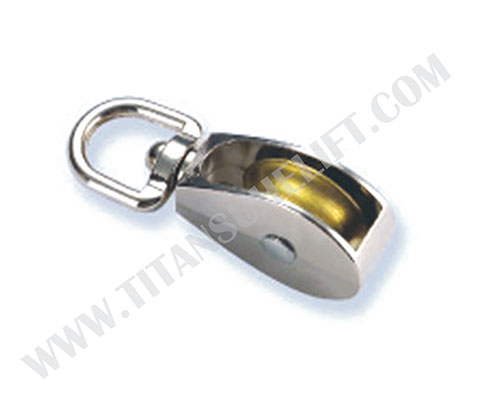

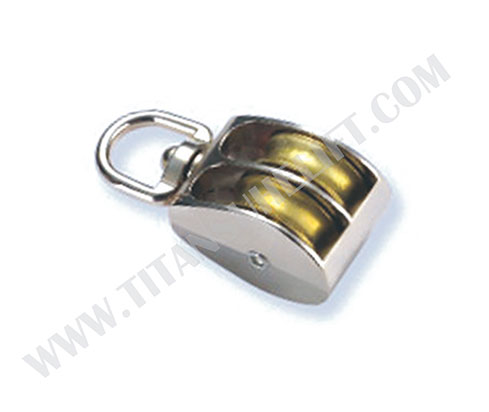

Swivel Eye Small Pulley, Single Wheel and Double Wheel

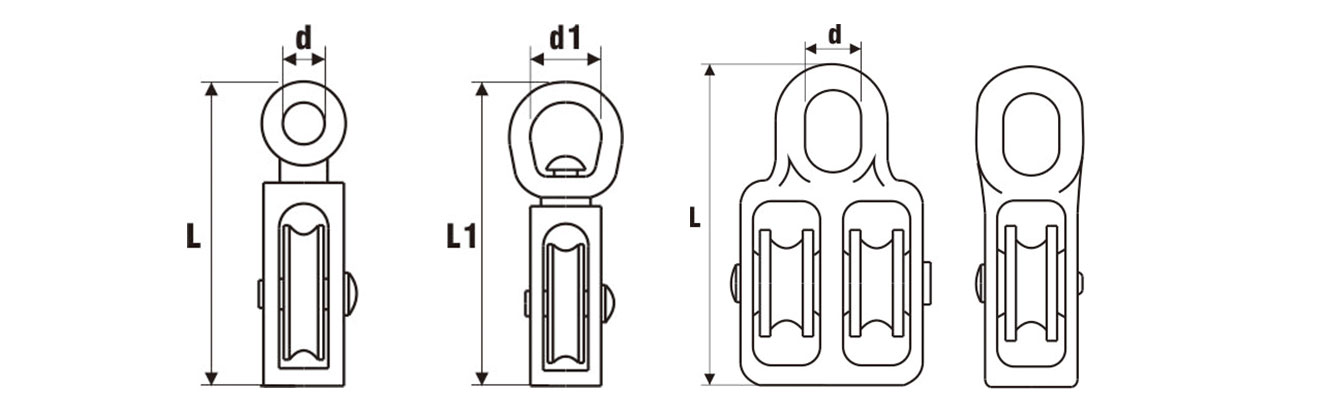

Size(in) | Dimension(mm) | |||
d | L | d 1 | L 1 | |
1/2" | 5 | 41 | 19 | 60 |
3/4" | 5 | 41 | 19 | 60 |
1" | 6.5 | 54 | 20 | 73 |
1 1/4" | 10 | 76.5 | 21 | 88 |
1 1/2" | 10 | 76.5 | 21 | 88 |
2" | 13 | 98.5 | 21 | 105 |

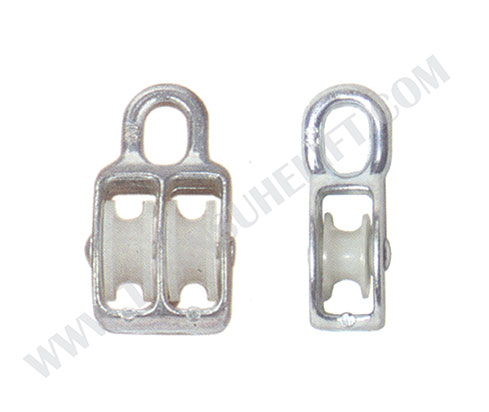

Zinc Alloy Eye Type Pulley, Single wheel and Double Wheel
Material of body:zinc alloy
Material of wheel:nylon
502-single wheel
504-double wheels
Size(mm) | Dimension(mm) | |
d | L | |
502-15 | 10 | 50 |
502-20 | 11 | 60 |
502-25 | 12 | 70 |
502-30 | 13 | 80 |
502-40 | 14 | 93 |
502-50 | 16 | 115 |
502-65 | 20 | 135 |
504-15 | 10 | 50 |
504-20 | 11 | 60 |
504-25 | 12 | 70 |
504-30 | 13 | 80 |
504-40 | 14 | 93 |
504-50 | 16 | 117 |
