Sleeve And Socket

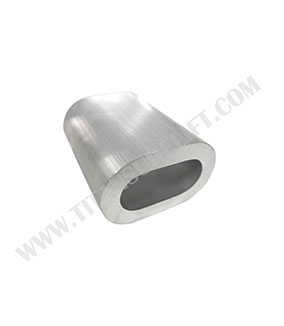

Wire rope slings can be combined by pressing sleeves or cable joints. The pressing sleeves mainly include S505 steel pressing sleeves, aluminum pressing sleeves, stainless steel pressing sleeves, etc. Wire rope slings of different specifications and standards can be customized according to customers needs. The tying method of wire rope rigging has undergone three reforms, from inserting, aluminum alloy pressing to steel pressing. For most European countries most of them use steel press sleeves. The Flemish steel press sleeve is the most advanced way of knotting. No matter in terms of aesthetics, durability or safety, it cannot be achieved through other ways. It greatly improves the working load efficiency. The working load efficiency of ordinary insertion is 50%, the aluminum alloy press sleeve is 60%-70%, and the steel press sleeve can reach 97%-98%. Meanwhile, we currently supply 1000 tons, 1500 tons and other specifications of the steel pressing machines. No matter components of wire rope and rope slings, we have capabilities to offer you ideal sizes and quantities. Our quality department are also equipped with large-scale tensile supporting equipment for inspection and testing.
S505 steel swage sleeve has different effects according to the grade of the wire rope. Compared with aluminum sleeves, S505 sleeves has much higher tensile strength than aluminum sleeves. Take 5t steel wire rope aluminum sleeve as an example, it can only reach about 75% of its work efficiency, but the steel sleeve can reach about 93%-97%.Therefore, steel sleeves not only perform great advantageous from its aesthetics out appearance but also its inner superior.
