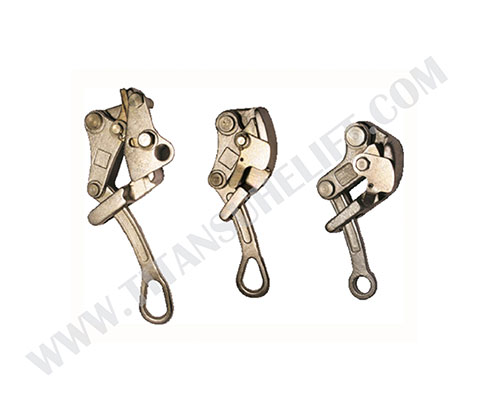

Cable grips are a device to clamp cables when the cable need to be hauled or be tensioned temporarily. The special Jaw design can grip on cable at any point without causing damage to the wire. TITANSUHE's SD cable grip range from 500kg to 3000kg grip capacity and grip size from 1mm to 32mm which can cover most power transmission cables and telecommunication cables
Model | S.W.L | Grip Range | Packing Dimension | Qty/Ctn | Net weight |
(kg) | (mm) | (mm) | (pcs) | (kg) | |
SD-500C | 500 | 1.0-10 | 185x170x130 | 10 | 0.4 |
SD-1000C | 1000 | 2.6-15 | 240x210x140 | 10 | 0.76 |
SD-2000C | 2000 | 4.0-22 | 270x260x110 | 5 | 1.35 |
SD-3000C | 3000 | 16-32 | 370x350x180 | 5 | 2.3 |
Titansuhe wire rope sling components will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
