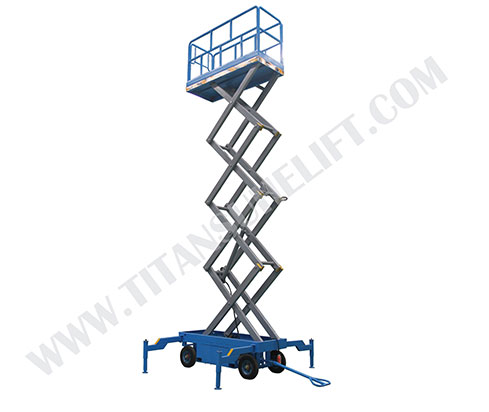

Scissor Type Elevating Mobile Lift Platform

The scissor type lift platform are used in upper air for installation, maintenance, inspection, cleaning and so on. It can lift both operators and tools up to desire location. The maximum lifting height can reach 18m.

Get A Quote
pho
mobile platform lift
mobile scissor lift

Data Sheet of Scissor Type Elevating Mobile Lift Platform

Model

Load Capacity (kg)

Lifting Height (mm)

Plate Size (mm)

Overall Dimension (mm)

Motor Power (kw)

Voltage (V)

Overall Net Weight (kg)

TCJY0.3-4

300

4000

2100x 830

2250 x 950 x 1100

2.2

380v/50hz

800

TCJY0.3-6

300

6000

2100 x 830

2250 x 950 x 1200

2.2

380v/50hz

900

TCJY0.3-8

300

8000

2100 x 930

2250 x 1060 x 1380

2.2

380v/50hz

1050

TCJY0.5-8

500

8000

2100 x 930

2250 x 1060 x 1380

3

380v/50hz

1150

TCJY0.3-10

300

10000

2100 x 1230

2250 x 1350 x 1530

2.2

380v/50hz

1360

TCJY0.5-10

500

10000

2120 x 1230

2250 x 1350 x 1530

3

380v/50hz

1450

TCJY1-10

1000

10000

2100 x 1200

2250 x 1350 x 1530

3

380v/50hz

1700

TCJY0.3-12

300

12000

2550 x 1530

2796 x 1670 x 1750

3

380v/50hz

2260

TCJY0.5-12

500

12000

2550 x 1530

27960x 1670 x 1750

3

380v/50hz

2400

TCJY0.3-14

300

14000

2812 x 1530

3067 x 1730 x 1810

3

380v/50hz

2450

TCJY0.3-16

300

16000

2812 x 1600

3067 x 1810 x 2080

3

380v/50hz

3500

TCJY0.3-18

300

18000

3070 x 1600

3321 x 1810 x 2080

3

380v/50hz

3950



Products
Lifting Tools and Equipment
Material Handling Equipment
Pallet Truck
Hydrualic Hand Pallet Truck
Pallet Truck with Scale
Stainless Steel Pallet Truck
Pallet Stacker
Manual Pallet Stacker
Electric Pallet Stacker
Forklift
Diesel Forklift Truck
Lift Table
Scissor Lift Table
Scissor Type Elevating Mobile Lift Platform
Gantry Crane
Aluminum Gantry Crane
Dolly Skate Roller
Dolly Skate Roller
Ratchet Straps
1 Inch Ratchet Straps
2 Inch Ratchet Straps
1.5 Inch Ratchet Straps
4 Inch Heavy Duty Ratchet Straps
Ratchet Buckles
Ratchet Buckles
Cam Buckles
Cam Buckles
Lashing End Fittings
Lashing End Fittings
Load Binder
Rachet Load Binder
Ratchet Chain Binder with Safety Pin
Tie Down Chain
Golden Galvanized Chain Sling With Bend Hook
Black Tempered Binder Chain With Grab Hook
Rigging Equipment
Tools & Hardware
Elevator
WORRY-FREE QUALITY AND PROFESSIONAL SERVICE, LIFTING SOLUTION FROM LIFTING EQUIPMENT FACTORY
Let us be your trustworthy material handling equipment supplier of lifting equipment, material handling equipment, rigging & hardware, marine accessories and elevators!

Related Lift Table

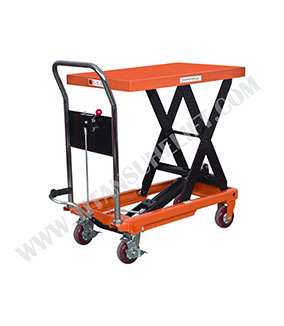

Scissor Lift Table Scissor Lift Table
