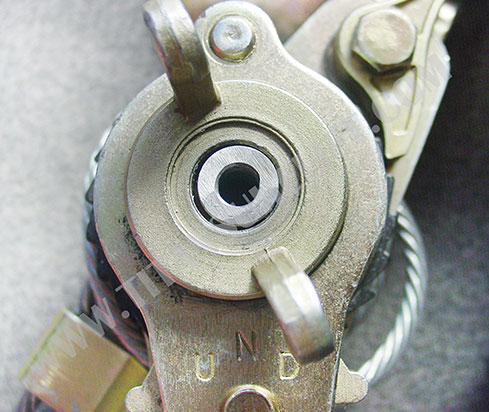

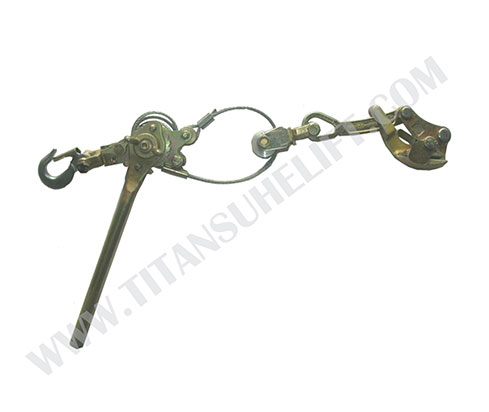

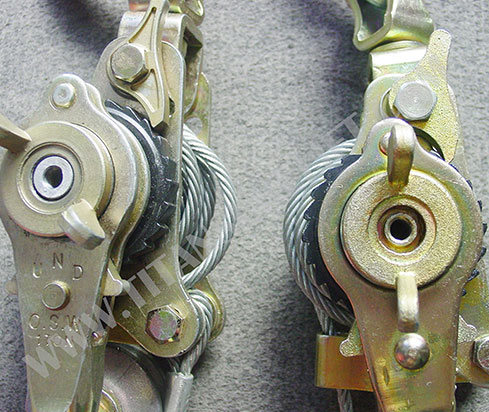

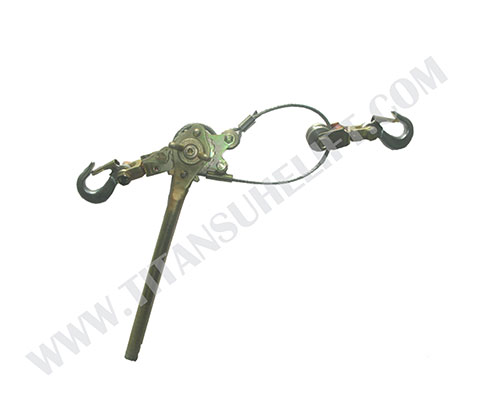

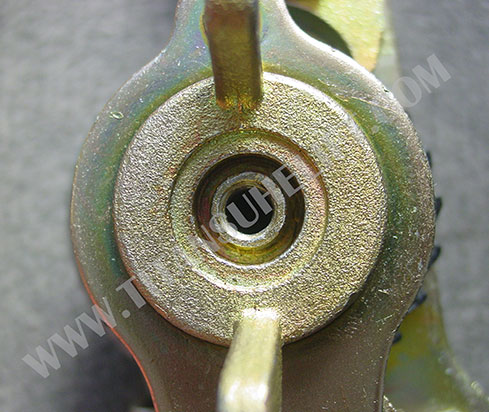

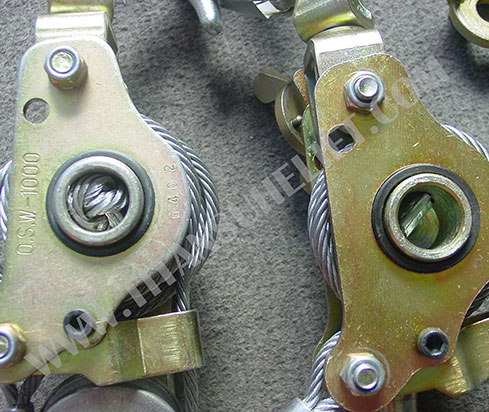

Ratchet Puller, in another name come along, is designed for cable hauling and positioning or tension holding through the ratchet mechanism. It has same function as a ratchet lever hoist or ratchet load binder, but it mainly used for power transmission and telecommunication engineering purpose. When it used with a cable grip, the cable can be hauled without a loop end or with wire sock.
Model | Capacity | Max. Length | Min. Length | Size of wire | Net Weight |
(kg) | (mm) | (mm) | (mm) | (kg) | |
1000 | 1000 | 1210 | 410 | 4.5x2300 | 3.2 |
1500 | 1500 | 1400 | 480 | 5x2300 | 4.2 |
2000 | 2000 | 1400 | 480 | 5.5x2300 | 4.3 |
P1500 | 1000(single wire) | 3300 | 480 | 5x2300 | 4.1 |
1500(double wire) | |||||
3000 | 3000 | 1400 | 480 | 6x2400 | 4.9 |
Model | Capacity | Grip size | Pull length (mm) | Size of wire (mm) | Net weight | ||
(kg) | Max | Min | Double | Single | (kg) | ||
1030 | 1000 | SD-1000C | 1210 | 410 | 5x2300 | 6x1200 | 4.3 |
1040 | 1000 | SD-2000C | 1210 | 410 | 5x2300 | 6x1200 | 5.2 |
1506 | 1500 | SD-2000C | 1400 | 480 | 6x2300 | 8x1200 | 6.7 |
1509 | 1500 | SD-3000C | 1400 | 480 | 5x2300 | 8x1200 | 7.2 |
For one-stop system service with wire rope components, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
