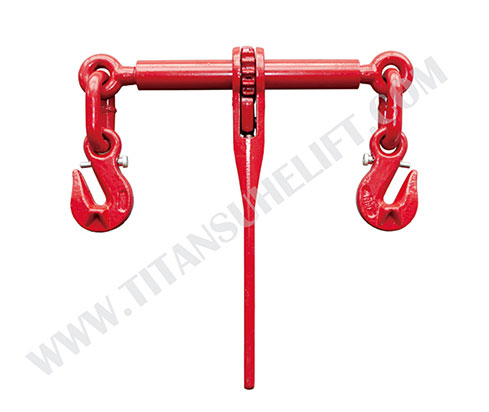

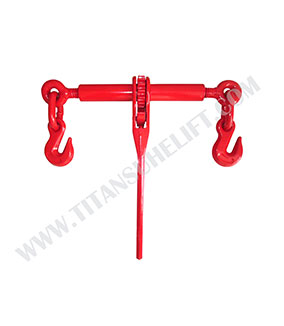

Ratchet Chain Binder with Safety Pin

Name: Ratchet Chain Binder with Safety Pin
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

TITANSUHE's Ratchet Chain Binder with Safety Pin is designed and built to conform EN12195-3 Specification. The innovative design of safety pin equipped cradle grab hooks at both ends restrains the accidental movement of link chain and keep it well seated to give proper and durable tension. This greatly enhance the operational safety. Made by high strength alloy steel, our safety pin ratchet binder can reach Grade 8 strength.

Get A Quote

Quick View of Ratchet Chain Binder with Safety Pin

Raw Material: High strength alloy steel
For Chain Size: 8mm, 10mm, 13mm and 16mm
Safety factor 3 to 1
Conform with EN12195-3 specification
Powder coated, different color is available as per request.
Working load limit and chain size permanently shown on the body.

Features and Advantages of Ratchet Chain Binder with Safety Pin

One-piece forged handle
One-piece assembly, no bolts or nuts connection
The ratchet spring is rust proofed
All loading bearing or holding parts are forged
Easy operating positive ratchet
Continues take-up feature provides finite adjustment to tie down a load
Grade 80 eye grab hook with safety pin provides more safety
Individually proof-tested as shown in the table.

Data Sheet of Ratchet Chain Binder with Safety Pin

Size	Working Load Limit	Proof Load	Dimension(mm)						Weight
(mm)	(kN)	(kN)	A	B	H	Lmin	Lmax	L	kg/pc
8	40	79	50	25	92	340	500	210	3.18
10	63	125	50	25	118	365	525	280	5.3
13	100	197	72	30	147	365	525	355	8.4
16	160	315	72	32	178	390	550	355	8.8

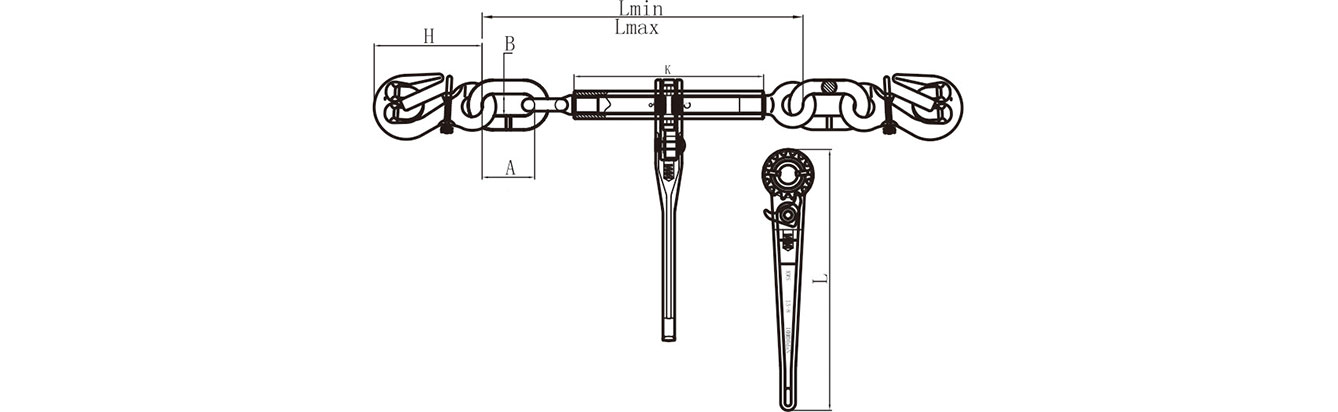

Drawing of Ratchet Chain Binder with Safety Pin
