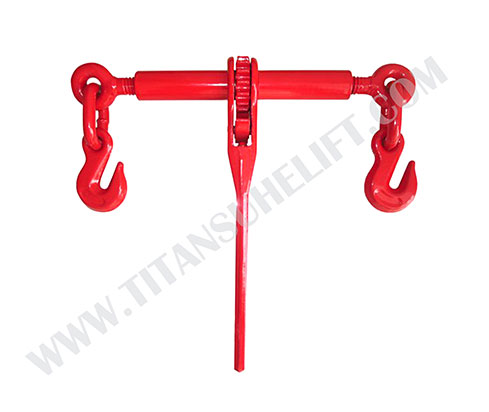

Ratchet Type Load binder is structured with a heavy duty cam, a forged ratchet pawl, one ratchet lever, two threaded take-up and two grab tension hooks. When operate, simply shake the ratchet lever with very small effort, the threaded take-up will screw in or out to tighten the slack chain or release the tension force.

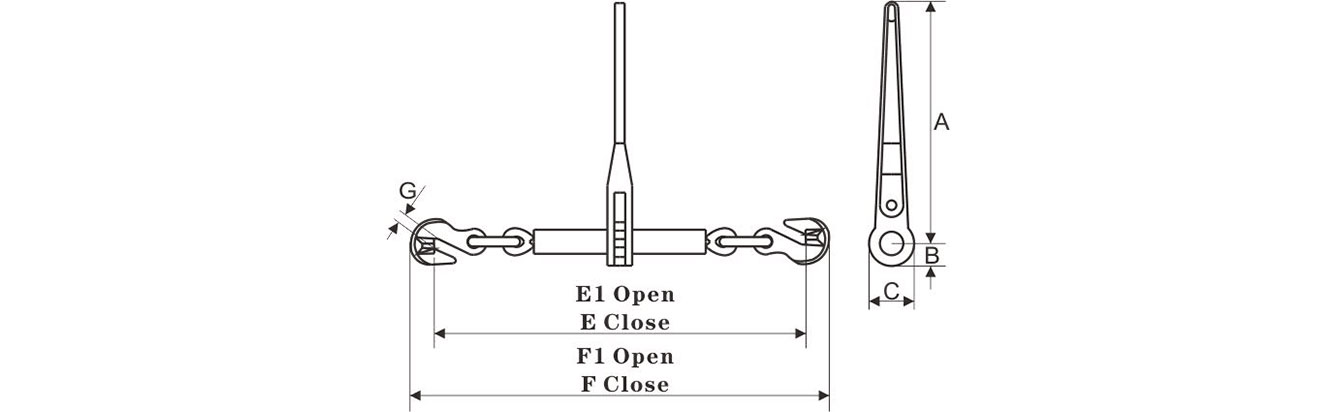

Chain Size | Working Load Limited | Proof Load | Minimum Ultimate Load | Weight | Handle Length | Dimension(in) | |||||||
(in.) | (lbs) | (lbs) | (lbs) | (lbs) | (in.) | A | B | C | E | E1 | F | F1 | G |
1/4-5/16 | 2600 | 5200 | 7800 | 3.52 | 7.16 | 7.16 | 0.89 | 1.77 | 16.22 | 21.26 | 17.79 | 22.83 | 0.35 |
5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.42 | 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 27.04 | 35.04 | 0.59 |
1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 13.92 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
