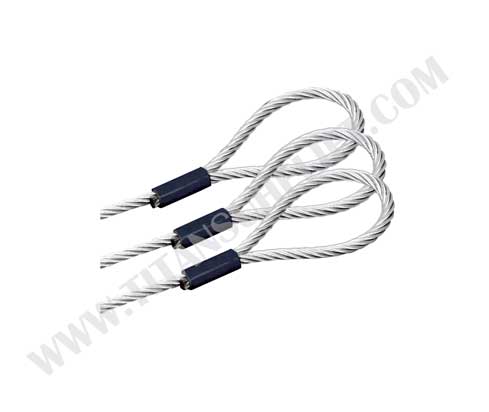

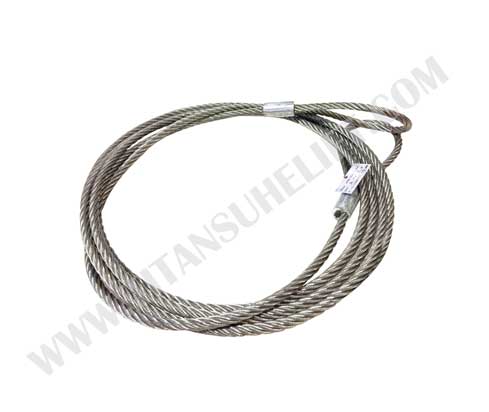

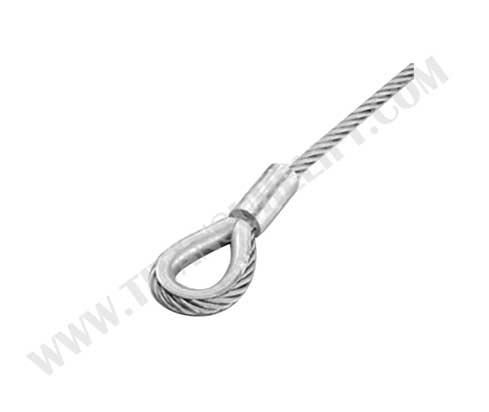

Constructed with loops at both ends by pressing, these steel wire rope slings can be used directly or rigged with other components to make 1 leg or multi-leg wire rope slings. Wire Rope Slings made by pressing are also called hard eye slings because the loops are shaped with a thimble and the rope end is clamped by a wire rope sleeve. TITANSUHE provides a wide range of wire rope slings from 6mm up to 60mm in 1 leg, 2 legs, 3 legs, and 4 legs.

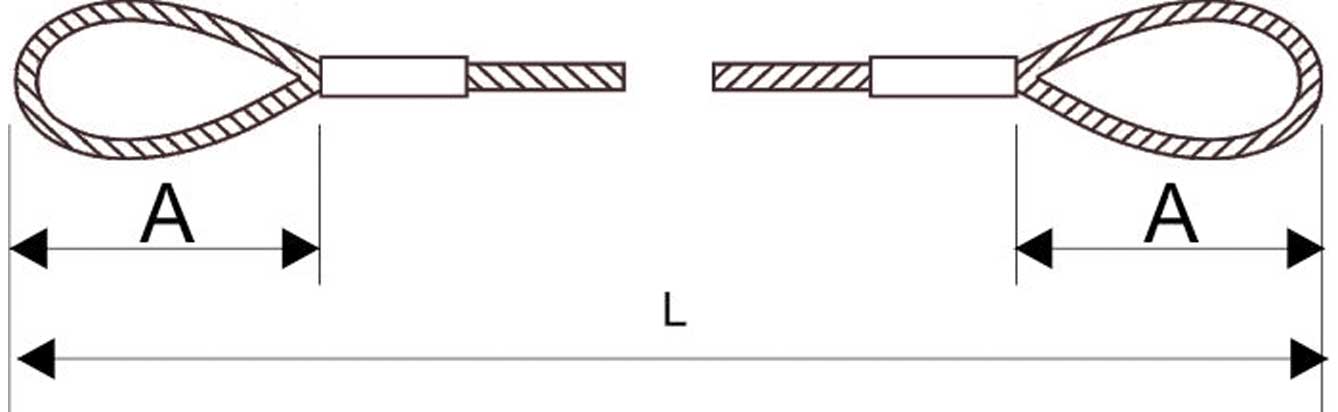

Dia. of Rope | W.L.L | Appr. Eye Length | Dia. of Rope | W.L.L | Appr. Eye Length | ||
(mm) | (kN) | A (mm) | (mm) | (kN) | A (mm) | ||
FC | IWRC | FC | IWRC | ||||
6 | 3.2 | 3.4 | 180 | 94 | 667 | 789 | 1880 |
7 | 4.3 | 4.7 | 190 | 96 | 695 | 823 | 1920 |
8 | 5.7 | 6.1 | 210 | 98 | 725 | 857 | 1960 |
9 | 7.2 | 7.8 | 230 | 100 | 755 | 893 | 2000 |
10 | 8.9 | 9.6 | 230 | 102 | 785 | 929 | 2040 |
11 | 11 | 12 | 250 | 104 | 816 | 966 | 2080 |
12 | 13 | 14 | 260 | 106 | 848 | 1003 | 2120 |
13 | 15 | 16 | 260 | 108 | 880 | 1041 | 2160 |
14 | 17 | 19 | 280 | 110 | 913 | 1080 | 2200 |
16 | 23 | 24 | 320 | 112 | 946 | 1120 | 2240 |
18 | 29 | 31 | 360 | 114 | 981 | 1160 | 2280 |
20 | 35 | 38 | 400 | 116 | 1015 | 1201 | 2320 |
22 | 43 | 46 | 440 | 118 | 1051 | 1243 | 2360 |
24 | 51 | 55 | 480 | 120 | 1086 | 1286 | 2400 |
26 | 60 | 65 | 520 | 122 | 1207 | 1503 | 2440 |
28 | 69 | 75 | 560 | 124 | 1247 | 1553 | 2480 |
30 | 80 | 86 | 600 | 126 | 1288 | 1603 | 2520 |
32 | 91 | 98 | 640 | 128 | 1330 | 1654 | 2560 |
34 | 102 | 110 | 680 | 130 | 1371 | 1706 | 2600 |
36 | 115 | 124 | 720 | 132 | 1414 | 1760 | 2640 |
38 | 128 | 138 | 760 | 134 | 1458 | 1818 | 2680 |
40 | 142 | 153 | 800 | 136 | 1501 | 1872 | 2720 |
42 | 157 | 169 | 840 | 138 | 1546 | 1926 | 2760 |
44 | 172 | 185 | 880 | 140 | 1591 | 1980 | 2800 |
46 | 187 | 203 | 920 | 142 | 1636 | 2034 | 2840 |
48 | 203 | 220 | 960 | 144 | 1683 | 2088 | 2880 |
50 | 221 | 240 | 1000 | 146 | 1729 | 2160 | 2920 |
52 | 239 | 259 | 1040 | 148 | 1778 | 2214 | 2960 |
54 | 258 | 279 | 1080 | 150 | 1818 | 2268 | 3000 |
56 | 277 | 301 | 1120 | 152 | 1872 | 2340 | 3040 |
58 | 298 | 322 | 1160 | 154 | 1926 | 2394 | 3080 |
60 | 319 | 345 | 1200 | 156 | 1980 | 2466 | 3120 |
62 | 322 | 350 | 1240 | 158 | 2034 | 2520 | 3160 |
64 | 325 | 365 | 1280 | 160 | 2070 | 2592 | 3200 |
66 | 329 | 389 | 1320 | 162 | 2124 | 2646 | 3240 |
68 | 349 | 413 | 1360 | 164 | 2178 | 2718 | 3280 |
70 | 370 | 437 | 1400 | 166 | 2232 | 2790 | 3320 |
72 | 391 | 463 | 1440 | 168 | 2286 | 2844 | 3360 |
74 | 413 | 489 | 1480 | 170 | 2340 | 2916 | 3400 |
76 | 436 | 516 | 1520 | 172 | 2394 | 2988 | 3440 |
78 | 459 | 543 | 1560 | 174 | 2466 | 3060 | 3480 |
80 | 483 | 571 | 1600 | 176 | 2520 | 3132 | 3520 |
82 | 507 | 600 | 1640 | 178 | 2574 | 3204 | 3560 |
84 | 532 | 630 | 1680 | 180 | 2628 | 3276 | 3600 |
86 | 558 | 660 | 1720 | 182 | 2682 | 3348 | 3640 |
88 | 584 | 691 | 1760 | 184 | 2754 | 3420 | 3680 |
90 | 611 | 723 | 1800 | 186 | 2808 | 3492 | 3720 |
92 | 639 | 756 | 1840 | 188 | 2862 | 3564 | 3760 |
190 | 2934 | 3654 | 3800 | ||||
Choose Titansuhe rigging and lifting slings, Choose custom designed professional solutions with reasonable and competitive prices.
