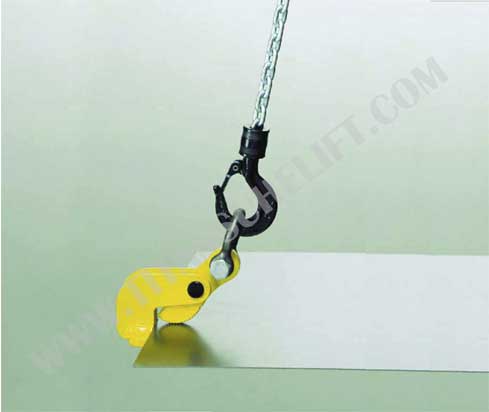

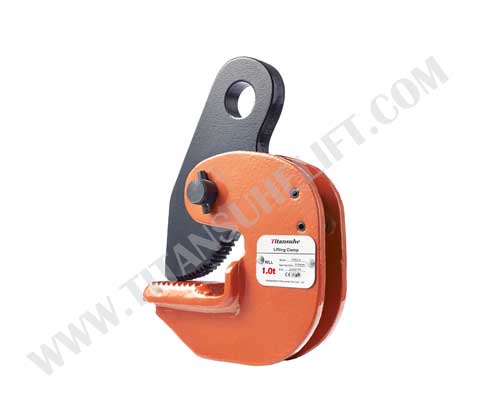

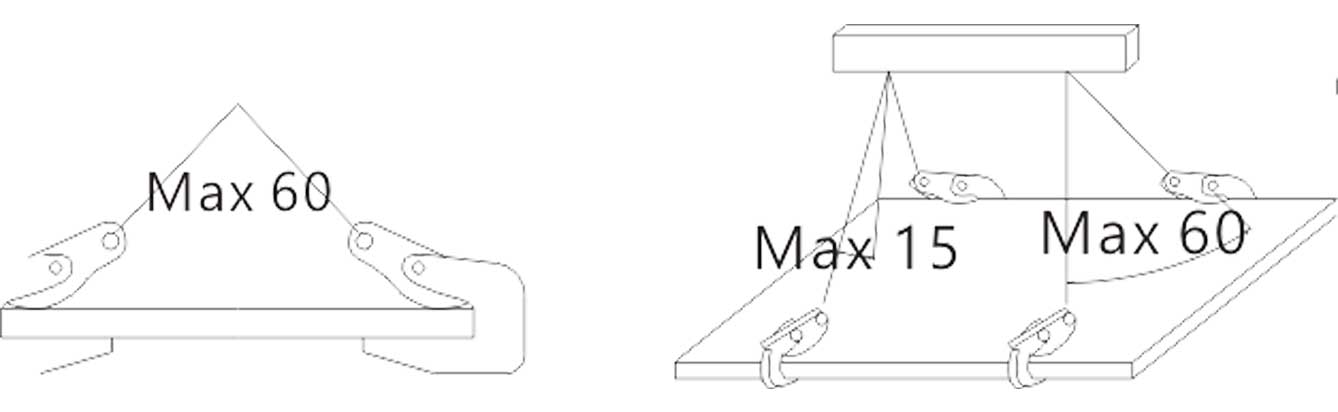

PPD Horizontal Lifting Clamp is one of the universal crane lifting clamps for horizontal lifting, transporting, and turning off all steel plates and structures. Different from Vertical Lifting Clamp, Horizontal Lifting Clamp can be used in pairs. The loads can be well distributed to each clamp.
Model | Working load | Testing load | Opening Size | Net weight |
(kg/pair） | (kg/pair) | (mm) | (kg) | |
PPD-0.8 | 800 | 1600 | 0.25 | 2.5 |
PPD-1.0 | 1000 | 2000 | 0-30 | 3.5 |
PPD-1.6 | 1600 | 3200 | 0-30 | 4 |
PPD-2.0 | 2000 | 4000 | 0-40 | 5 |
PPD-3.2 | 3200 | 6400 | 0-45 | 6 |
PPD-4.0 | 4000 | 8000 | 0-50 | 6.5 |
PPD-5.0 | 5000 | 10000 | 0-55 | 7.5 |
PPD-6.0 | 6000 | 12000 | 0-65 | 10.5 |
PPD-6.0A | 6000 | 12000 | 0-130 | 22 |
PPD-8.0 | 8000 | 12000 | 0-100 | 25 |
PPD-10 | 10000 | 15000 | 0-125 | 33 |
PPD-16 | 16000 | 24000 | 0-150 | 52 |
Titansuhe hoist clamp will be your ideal solution for construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
