PML Lifting Maganet

Featured with a built-in strong permanent magnet circuit, TITIANSUHE lifting clamps suppliers permanent magnet lifter is designed to handle steel plates, pipes, and rods simply and quickly without the help of lifting slings or hoisting. They do not require the use of electricity and are much safer to operate since there is no concern for operation failure due to power shut down.

HVR MAG designs and manufactures lifting magnets for a wide range of applications using permanent, electro-permanent, battery-powered, and electromagnetic technologies. All our industrial lifting magnets are custom-engineered to pick up, transfer or place ferrous materials regardless of size, weight, or shape, reliably and economically.

These below-the-hook lifting magnets are commonly used in steel mills, scrap yards, loading docks, warehouses, foundries, shipyards, coil and pipe distributors, and other users of applicable steel products.

This below-the-hook manually switched permanent magnetic lifter, for safe and reliable material handling of flat and round steel parts, allows steel handlers to quickly and simply maneuver steel plates, pipes and rods without the use of slings, chains, and blocking.

pho

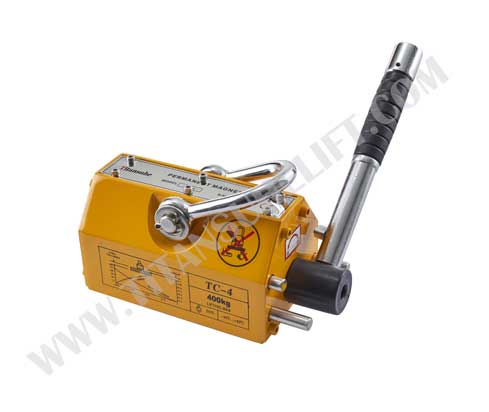

pml lifting maganet pml 1

Data Sheet of PML Lifting Maganet PML


Model

Rated Lifting

Strength

(Kgf)

Cylindrical Lifting

Strength

(Kgf)

Max pull-off

Strength

(Kgf)

L

B

H

R

Operation

temperature

(℃)

Net Weight

(Kg)

TC2 150

150

75

300

67

105

62

143

<80

3

TC2 500

500

250

1000

91

209

92

181

<80

10

TC2 1000

1000

500

2000

117

266

122

217

<80

24

TC2 1600

1600

800

3200

163

354

176

285

<80

50

TC2 3200

3200

1600

6400

215

443

234

466

<80

125


TC1 Model safety factor 3:1

Model

Rated Lifting

Strength

(Kgf)

Cylindrical Lifting

Strength

(Kgf)

Max pull-off

Strength

(Kgf)

L

B

H

R

Operation

temperature

(℃)

Net Weight

(Kg)

TC1 100

100

50

300

62

92

67

140

<80

3

TC1 300

300

150

900

92

163

93

180

<80

10

TC1 400

400

200

1200

92

163

93

180

<80

10

TC1 500

500

250

1500

92

210

93

210

<80

14

TC1 600

600

300

1800

120

216

116

220

<80

21

TC1 1000

1000

500

3000

152

264

136

260

<80

38

TC1 2000

2000

1000

6000

172

395

168

375

<80

82

TC1 3000

3000

1500

9000

232

442

221

450

<80

160

TC1 4000

4000

2000

12000

232

575

221

550

<80

220

TC1 5000

5000

2500

15000

296

650

266

700

<80

355

TC1 6000

6000

3000

18000

296

720

266

700

<80

398



Titansuhe have clamps for lifting bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.

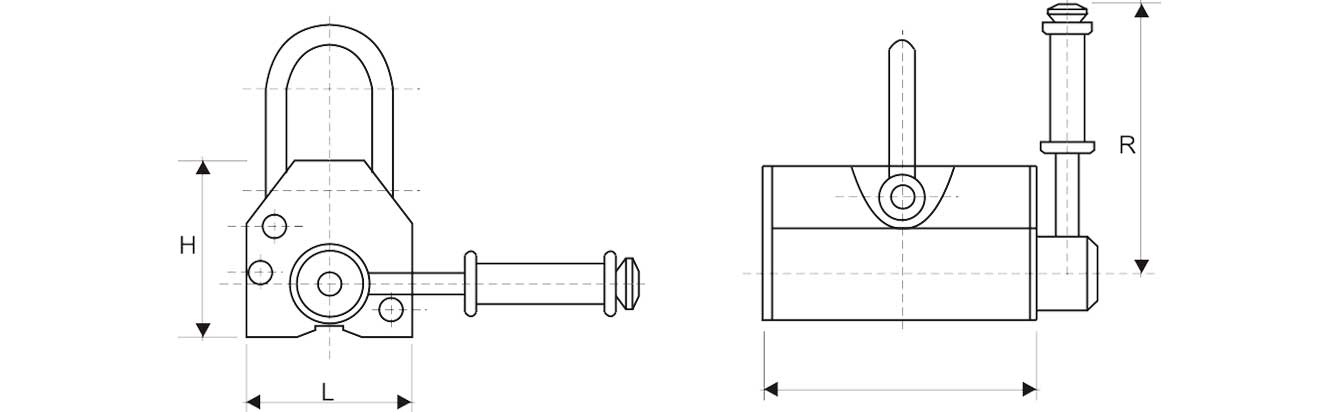

Drawing of PML Lifting Maganet PML

Drawing of PML Lifting Maganet PML
