PD Hand Winch

PD hand winch from TITANSUHE is designed for pulling and changeover lifting with a maximum pulling capacity 2500lbs/1100kgs. The robust steel hub can spool steel wire rope or strap for different purpose.

Features and Advantages of PD Hand Winch

Portable and Compact Design-Good quality but cost effective
Unique Mounting Base-Easy to mount and ideal for mobile use on pickup trucks and trailer
Spring Loaded Pawl Brake-Provide well engagement and quick release for rope in and rope out
Completely Zinc Plated-Enable oily free operation and have good corrosion resistance
Rubber Grip Crank Handle-Soft touch with hands, reduce hurt and enable comfortable cranking
Wide Range of Capacity Choice-600lbs through 2500lbs options to cover most of your general tasks

Data Sheet of PD Hand Winch

PD Hand winch without steel wire rope or strap

Model	Capacity	Gear Ratio	Handle length	Hub Size	Size of wire rope	Size of color belt	Qty/ctn	Weight	Dimension
Model	(lbs/kgs)	Gear Ratio	(mm)	Dia. (mm)	(mm)	(mm)	(pcs)	(G.W/N.W)	(cm)
PD06	600/250	3.1:1	165	Φ16	Φ4.2	1.0x50	6	13/11	59x26x16
PD08	800/350	3.1:1	175	Φ16	Φ4.2	1.0x50	6	14.5/12.5	59x26x16
PD10	1000/450	4.1:1	200	Φ18	Φ4.5	1.2x50	6	18/16	66x27x18
PD12	1200/450	4.1:1	225	Φ18	Φ4.5	1.4x50	6	18.5/16.5	66x27x19
PD14	1400/620	4.57:1	225	Φ18	Φ4.5	1.6x50	6	19/17	67x27x19
PD16	1600/720	5.1:1	225	Φ20	Φ4.8	1.6x50	4	15/13	46x31x20
PD18	1800/800	4.1:1&9.8:1	250	Φ20	Φ4.8	1.8x50	4	18/16	52x31x20
PD20	2000/900	4.1:1&9.8:1	250	Φ20	Φ5	1.8x50	4	19/17	52x31x20
PD20B	2000/900	4.1:1&9.8:1	250	Φ42	Φ5	1.8x50	4	21/18	52x31x20
PD25	2500/1100	4.1:1&9.8:1	275	Φ42	Φ5	2.0x50	4	22/20	54x31x22

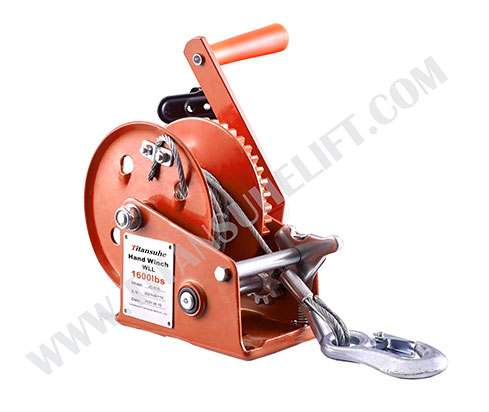

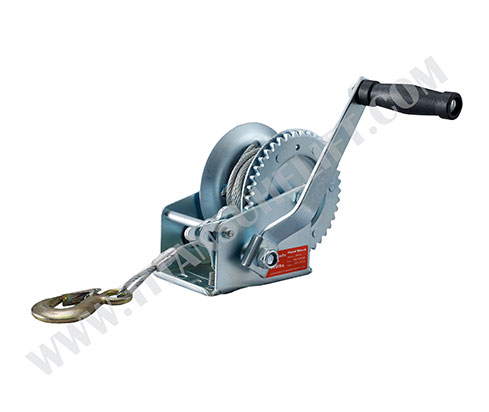

PD-A Hand winch with steel wire rope

Model	Capacity	Gear Ratio	Handle length	Hub Size	Size of wire rope	Qty/ctn	Weight	Dimension
Model	(lbs/kgs)	Gear Ratio	(mm)	Dia. (mm)	(mmxm)	(pcs)	(G.W/N.W)	(cm)
PD06A	600/250	3.1:1	165	Φ16	Φ4.2x8	6	15/13	59x26x16
PD08A	800/350	3.1:1	175	Φ16	Φ4.2x8	6	17/15	59x26x16
PD10A	1000/450	4.1:1	200	Φ18	Φ4.5x10	6	20.5/18.5	66x27x18
PD12A	1200/450	4.1:1	225	Φ18	Φ4.5x10	6	21/20	66x27x19
PD14A	1400/620	4.57:1	225	Φ18	Φ4.5x10	6	21.5/19.5	67x27x19
PD16A	1600/720	5.1:1	225	Φ20	Φ4.8x10	4	18.5/16.5	46x31x20
PD18A	1800/800	4.1:1&9.8:1	250	Φ20	Φ4.8x10	4	21.5/19.5	52x31x20
PD20A	2000/900	4.1:1&9.8:1	250	Φ20	Φ5x10	4	22.5/20.5	52x31x20
PD20BA	2000/900	4.1:1&9.8:1	250	Φ42	Φ5x10	4	23.5/21.5	52x31x20
PD25A	2500/1100	4.1:1&9.8:1	275	Φ42	Φ5x10	4	25/23	54x31x22

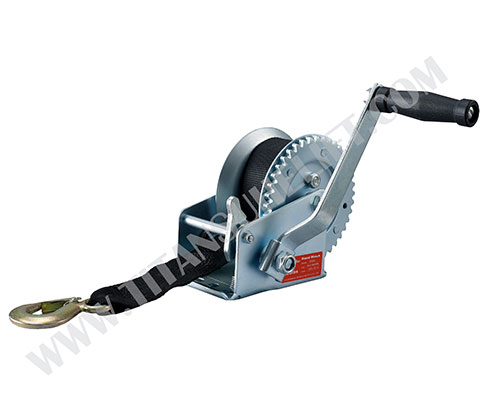

PD-B Hand winch with Strap

Model	Capacity	Gear Ratio	Handle length	Hub Size	Size of color belt	Qty/ctn	Weight	Dimension
Model	(lbs/kgs)	Gear Ratio	(mm)	Dia. (mm)	Size of color belt	(pcs)	(G.W/N.W)	(cm)
PD06B	600/250	3.1:1	165	Φ16	1.0x50x8m	6	13.5/11.5	59x26x16
PD08B	800/350	3.1:1	175	Φ16	1.0x50x8m	6	15/13	59x26x16
PD10B	1000/450	4.1:1	200	Φ18	1.2x50x8m	6	18.5/16.5	66x27x18
PD12B	1200/450	4.1:1	225	Φ18	1.4x50x8m	6	19/17	66x27x19
PD14B	1400/620	4.57:1	225	Φ18	1.6x50x8m	6	19.5/17.5	67x27x19
PD16B	1600/720	5.1:1	225	Φ20	1.6x50x8m	4	16/14	46x31x20
PD18B	1800/800	4.1:1&9.8:1	250	Φ20	1.8x50x8m	4	19/17	52x31x20
PD20B	2000/900	4.1:1&9.8:1	250	Φ20	1.8x50x8m	4	20/18	52x31x20
PD20B1	2000/900	4.1:1&9.8:1	250	Φ42	1.8x50x8m	4	22.5/20.5	52x31x20
PD25B	2500/1100	4.1:1&9.8:1	275	Φ42	2.0x50x8m	4	22.5/20.5	54x31x22
