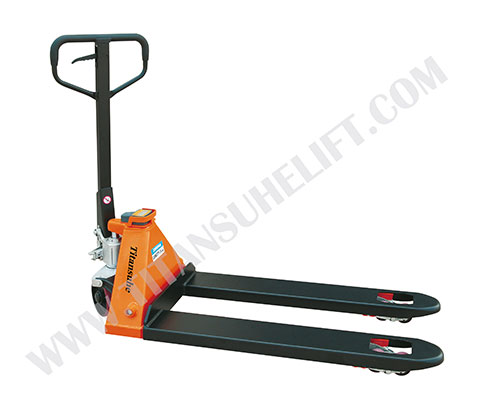

If you want to weigh the loads when moving it, TITANSUHE’s scale pallet truck get solution for it. Equipped with a built-in maintenance free Lithium acid battery, the standby time can reach 45 hours. And the scale can come with printer, it's very convenient to take records and make files. Zero, tare, hold, set and on/off button can help you quickly reset for any operations you want.
SBC: Large Screen
SBC-P: Large Screen with Printer
SBC-E: Small Screen
Model | SBC | SBC-P | SBC-E | ||
Capacity | kg | 2000kg | 2000kg | 2000kg | |
Driven Wheel | mm | Φ180x50 | Φ180x50 | Φ180x50 | |
Steering Wheel | mm | Φ70x60 | Φ70x60 | Φ70x60 | |
Lifting Height | mm | 190 | 190 | 190 | |
Lowered Height | mm | 80 | 80 | 80 | |
Overall Length | mm | 1561/1631 | 1561/1631 | 1561/1631 | |
Fork Width | mm | 550/685 | 550/685 | 550/685 | |
Fork Length | mm | 1150 | 1150 | 1150 | |
Turning Radius | mm | 1365/1435 | 1365/1435 | 1365/1435 | |
Battery | V/Ah | 6V/2.5Ah | 6V/2.5Ah | 6V/2.5Ah | |
Height of tiller in drive postion max. | mm | 1200 | 1200 | 1200 |
