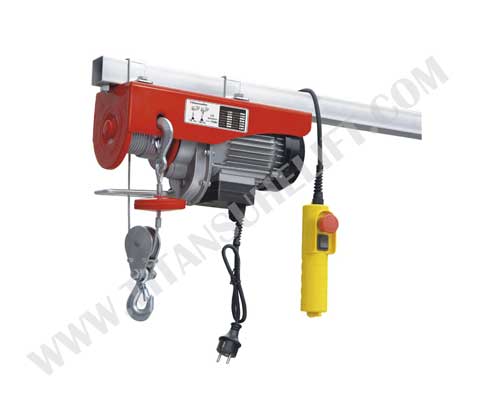

TITANSUHE's portable designed mini electric wire rope hoist ranges from 200kg to 1200kg and is built for a 25% duty rate that is applied in the handling of small engines, building materials, heavy tools, and other materials in the warehouse.
Model No.: PA
Capacity: 200kg up to 1200kg
Standard Lift: 6m double wire, 12m single wire
Power supply: 1 Phase, 220v, 50hz
Color: powder painting in red color, other colors are available by request
Packing: color box

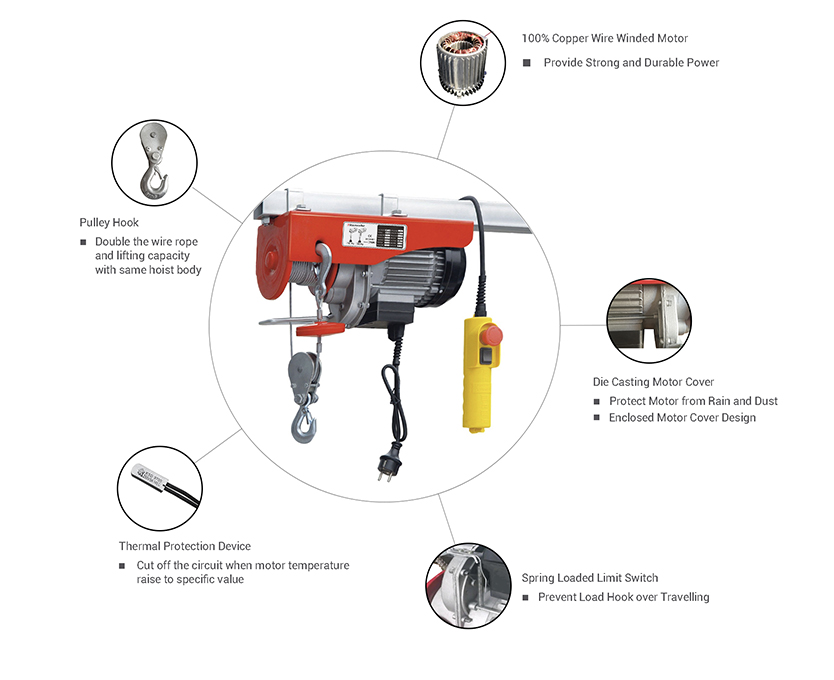

100% Copper Wire Winded Motor gives strong and durable power.
Die Casting Motor Cover-Enclosed motor cover design made by die-casting aluminum protect the motor from rain and dust, increasing hoist service life.
Spring Loaded Limit Switch-Prevent load hook over traveling.
Thermal Protection Device-Will cut off the circuit when the motor temperature rises to a specific value and protect the motor from burning.

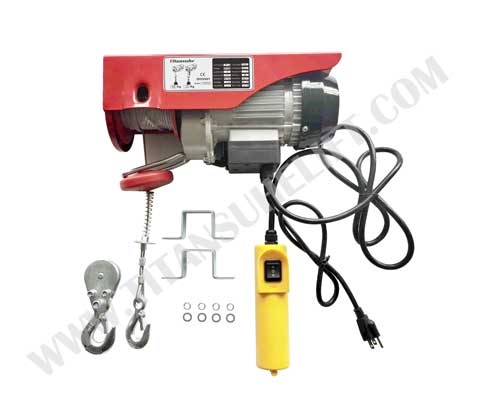

Each hoist will come with a pulley hook that can double the wire rope and the lifting capacity with the same hoist body.
Compact Design-Ideal for in-house lifting.
Reliable and Durable Motor-100% cooper wire winded, gives strong power and durability for thermal resistance.
IP54 Protection Class-Enclose designed motor cover, waterproof pendant control.
Spring Loaded Limit Switch-Prevent load hook from over traveling, give hoist maximum protection.
Emergency Stop Button-Come as a standard part, enables immediate stop in case of an emergent accident.
Model | Method of use | Rated volt | Input power | Rated lifting | Lifting speed | Lifting height | Qty/CTN | Packing size | G.W./N.W. |
(v) | (w) | weight(kg) | (m/min) | (m) | (pcs) | (cm) | (kg) | ||
PA200A | Single-hook | 220/230/240 | 480 | 100 | 10 | 12 | 2 | 47x37x16 | 24/22 |
Double-hook | 200 | 5 | 6 | ||||||
PA250A | Single-hook | 220/230/240 | 510 | 125 | 10 | 12 | 2 | 47x37x16 | 24/22 |
Double-hook | 250 | 5 | 6 | ||||||
PA300A | Single-hook | 220/230/240 | 600 | 150 | 10 | 12 | 2 | 47x37x16 | 24/22 |
Double-hook | 300 | 5 | 6 | ||||||
PA400A | Single-hook | 220/230/240 | 950 | 200 | 10 | 12 | 2 | 52x42x17 | 36/34 |
Double-hook | 400 | 5 | 6 | ||||||
PA500A | Single-hook | 220/230/240 | 1020 | 250 | 10 | 12 | 2 | 52x42x17 | 36/34 |
Double-hook | 500 | 5 | 6 | ||||||
PA600A | Single-hook | 220/230/240 | 1200 | 300 | 10 | 12 | 2 | 52x42x17 | 36/34 |
Double-hook | 600 | 5 | 6 | ||||||
PA700A | Single-hook | 220/230/240 | 1250 | 350 | 10 | 12 | 2 | 52x42x17 | 38/36 |
Double-hook | 700 | 5 | 6 | ||||||
PA800A | Single-hook | 220/230/240 | 1300 | 400 | 10 | 12 | 2 | 52x42x17 | 38/36 |
Double-hook | 800 | 5 | 6 | ||||||
PA1000A | Single-hook | 220/230/240 | 1600 | 500 | 10 | 12 | 1 | 56x25x35 | 33/32 |
Double-hook | 1000 | 5 | 6 | ||||||
PA1200A | Single-hook | 220/230/240 | 1800 | 600 | 10 | 12 | 1 | 56x25x35 | 33/32 |
Double-hook | 1200 | 5 | 6 |
