Non-Rotating Steel Wire Rope 19x7

During lifting applications, regular wire ropes are easy to get elongation and rotation under load. This will cause load spin and sometimes out of control. Furthermore, when wire rope rotates, the strands will become unravel which will greatly reduce the rope strength and fail the lift. Our non-rotating wire rope is produced to solve this problem. The available constructions include 17x7, 8x7, 18x19. All of them can come with fiber core or steel core.

Quick View of Non-Rotating Steel Wire Rope 19x7

Material: Carbon Steel or Stainless Steel

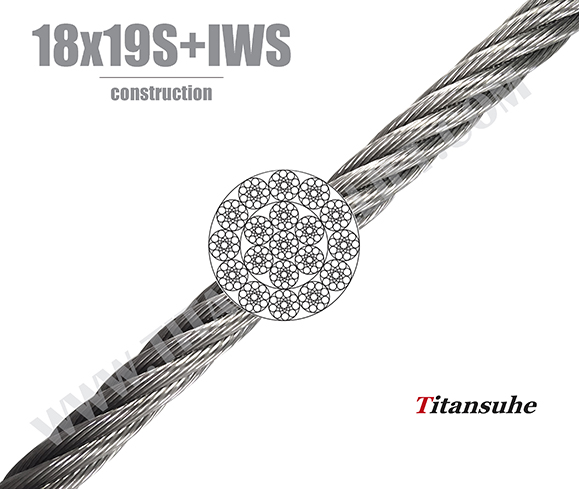

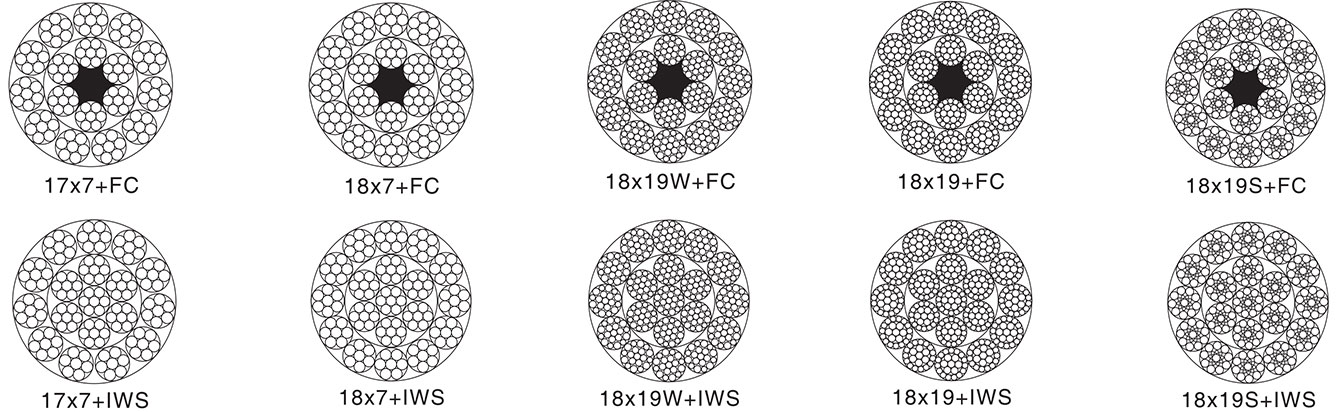

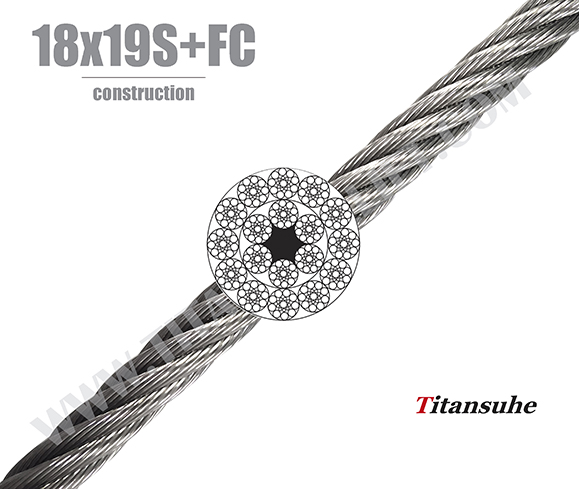

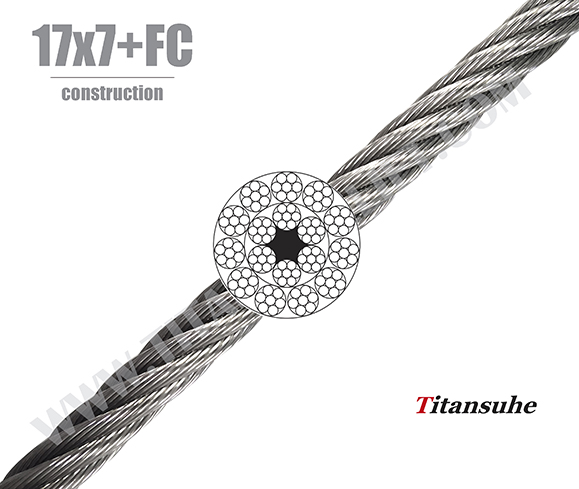

Construction: 17x7, 18x7, 18x19, 19x7
Strand Number: 17, 18 and 19
Wire Number of Each Strand: 7
Rope Core: FC (Fiber core) or IWS (Steel Core)
Available Size: 6mm up to 44mm
Available Tensile Strength: 1570N/MM2, 1770N/MM2 and 1960N/MM2
Surface Treatment Options: Electric Galvanization, Hot Dip Galvanization, Self color with lubrication, PVC coating in different color
Packing: 1000m/reel as regular, coil packing or other shorter or longer length packing available by request

Date Sheet of Non-Rotating Steel Wire Rope 19x7

Nominal	Approx weight		Nominal Tensile Strength
Diameter	kg/100m		Minimum Breaking Strength (kN)
Diameter	kg/100m		1570N/mm²		1770N/mm²		1960N/mm²
mm	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
6	14	15.5	17.5	18.5	19.8	20.9	21.9	23.1
7	19.1	21.1	23.8	25.2	26.9	28.4	29.8	31.5
8	25	27.5	31.1	33	35.1	37.2	38.9	41.1
9	31.6	34.8	38.4	41.7	44.4	47	49.2	52.1
10	47.2	52	58.9	62.3	66.4	70.2	73.5	77.8
11	56.2	61.9	70.1	74.2	79	83.6	87.5	92.6
12	56.2	61.9	70.1	74.2	79	83.6	87.5	92.6
13	65.9	72.7	82.3	87	92.7	98.1	103	109
14	76.4	84.3	95.4	101	108	114	119	126
16	99.8	110	125	132	140	149	156	165
18	126	139	158	167	178	188	197	208
20	156	172	195	206	219	232	243	257
22	189	208	236	249	266	281	294	311
24	225	248	280	297	316	334	350	370
26	264	291	329	348	371	392	411	435
28	306	337	382	404	430	455	476	504
30	351	387	438	463	494	523	547	579
32	399	440	498	527	562	594	622	658
34	451	497	563	595	634	671	702	743
36	505	557	631	667	711	752	787	833
38	563	621	703	744	792	838	877	928
40	624	688	779	824	878	929	972	1030
42	688	759	859	908	968	1020	1070	1130
44	755	832	942	997	1060	1120	1180	1240

As a manufacturing group and professional supplier of wire rope parts, Titansuhe has committed to the development of lifting products, material handling, and rigging equipment for more than 15 years.
