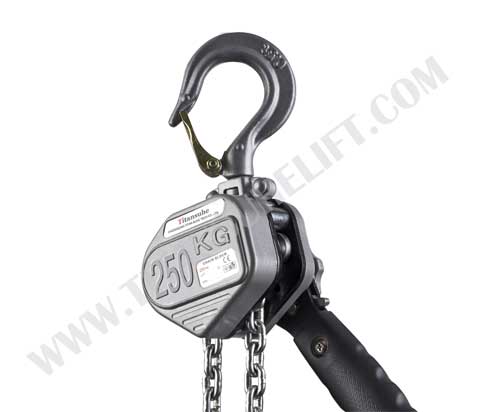

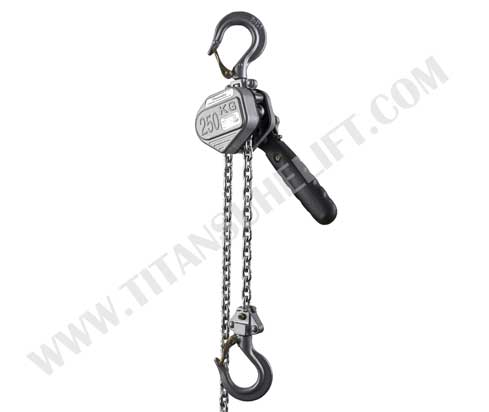

TITANSUHE's 250kg mini lever hoist is an ideal tool to help you tighten the cargo or lift the loads. Don't think it's for light-duty application, the robust aluminum housing makes this hoist strong, but lightweight. The portable design looks cute but can work with great force out of your imagination. It can be widely used for lifting, lashing, securing, and positioning in applications that are difficult to reach.
Capacity: 250kg
Standard lift: 1.5m/5ft
Chain Size: 4x12mm
Chain Fall: 1 fall
Chain Grade: G100
Weight: 2.36kg
Extremely Compact Design-Very cute look, small body, big energy.

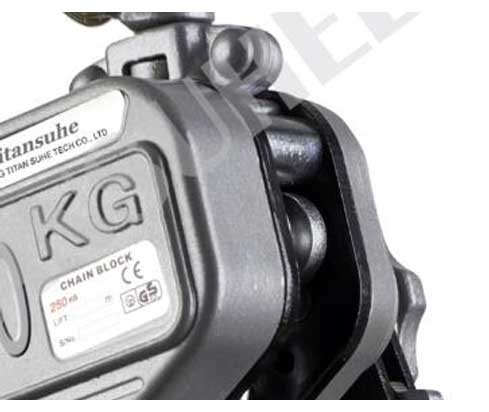

Die-Cast Aluminum House-In is super lightweight and can be carried in your pocket.
Durable Steel Frame-Offer long-lasting, high-strength support.
Quick Chain Adjustment and Positioning-One step operation to adjust the chain for repositioning.
Corrosion Resistance-Aluminum body and zinc plated chain can well resist corrosion. This mini lever hoist can be used in many challenging environments such as damp air, steam, acidic and alkaline.

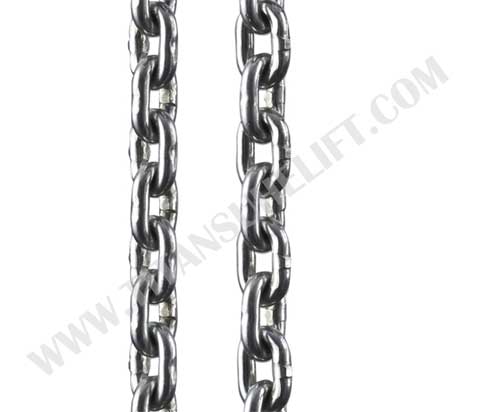

Zinc plated G100 Lifting chain-Provides high strength and oily free operation.
Compliance-EN13157, ASME B30.21, AS1418.2.
Wide Applications-Can is used in transportation, construction, and plumping.
Low Headroom-ideal for the operation in tight and narrow spaces.
.Ergonomic Rubber Handle Design-Provide a comfortable and firm grip, hand slip worry-free.
Model | HSH-M-2.5 | HSH-M-5 | |
Capacity | t | 0.25 | 0.5 |
Standard lift | m | 1.5 | 1.5 |
Running test load | kN | 3.75 | 7.5 |
Effort required to lift rated load | N | 240 | 240 |
Strands of load chain | 1 | 1 | |
Diameter of load chain | mm | 4 | 4 |

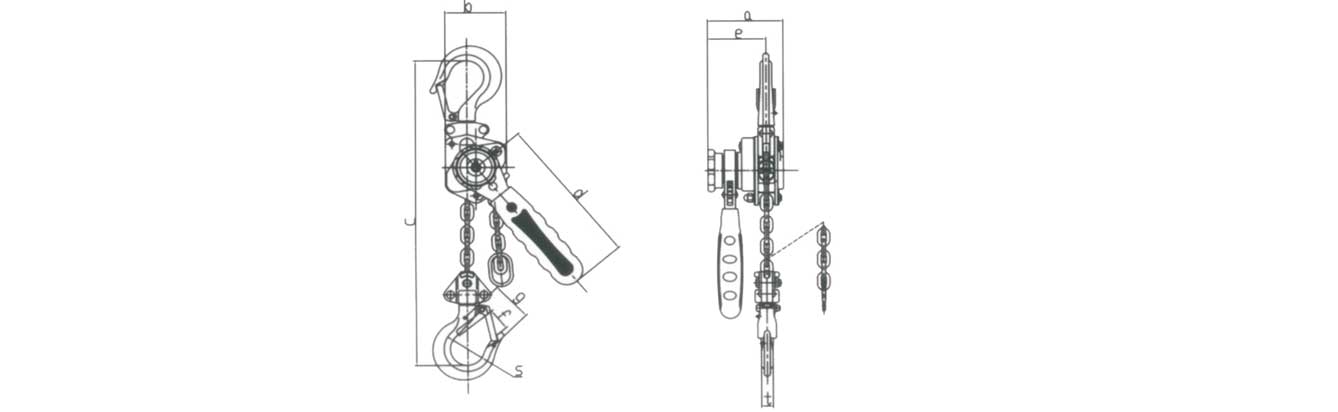

Dimensions (mm) | A | 100 | 100 |
B | 81 | 81 | |
C | 250 | 250 | |
D | 160 | 160 | |
E | 62.5 | 62.5 | |
F | 42 | 42 | |
G | 24.5 | 24.5 | |
S | 34.5 | 34.5 | |
T | 12 | 12 | |
Net weight | kg | 2.5 | 2.5 |
Extra weight per metre of extra lift | kg | 0.37 | 0.37 |
