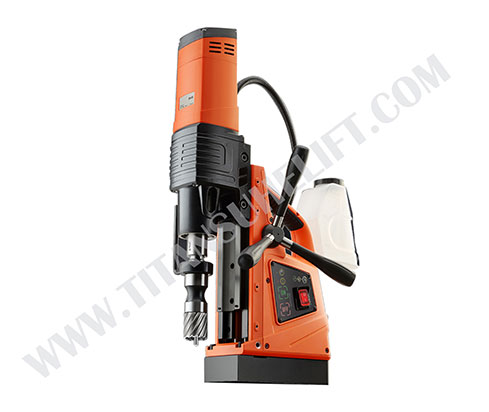

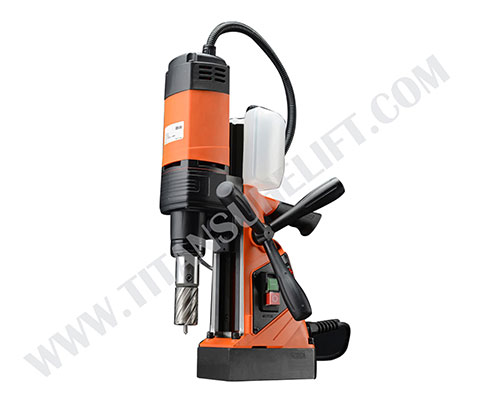

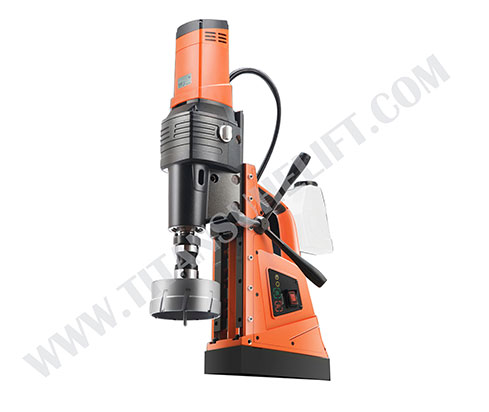

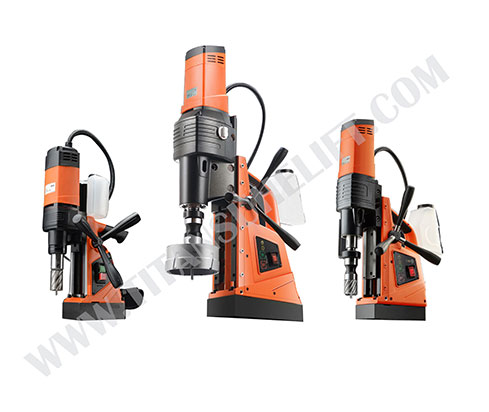

Magnet Drilling Machine

• Voltage: 220V-240V

• Load speed: 450rpm

• Maximum core driling diameter: 35mm

• Magnetic base footprint: 167*84mm

• Magnetic base attraction: 10KN

• Weight: 10.5KG

• Super suction magnetic seat: TITANSUHE magnet drilling machine use raw materials with good magnetic penetration and high wear resistance, triple insulation protection and copper protection function, to create a strong magnetic and safe use effect.

• Quick-assembly cooling connector: Quick-assembly cooling connector, easy to disassemble by one plug and one pull. When sidetracking, use external lubricating oil for cooling.

• Double dovetail guide: It not only ensures the rigidity of the feeding part, but also adjusts the height of the motor as required. The surface of the guide rail is treated with wear-resistant treatment, which is 5 times the wear-resistant life of ordinary guide rails.

• Debris-proof air vent design: The design of the motor's debris-proof air vents maximizes the avoidance of foreign objects from entering the casing.

• Safety belt: Safety belts for high-altitude work to prevent sudden power outages during operations.

• Innovative oil accumulation design: Keep the gears in the guides cared for every job to reduce wear and maximize service life.

• Lightweight high-rigidity mechanical body: With a weight of only 10.5kg, the drilling diameter can reach 35mm. And the weight is only about 1/5 compared with the traditional magnetic drill.

• Save on drill bit consumption: It is designed in line with the principle of hollow drill and pin cutting, saving one third of the consumption of drill bits.. The light, precise and loose operation experience improves the production efficiency of the factory by 30% to 300%.

• Equipped with high-power motor and overload protection: It can meet the torque and force required for the processing of hollow steel plate drills with a diameter of 60mm, and protect the equipment from overload.

• Air outlet anti debris design: The two-dimensional inclined design is adopted to effectively avoid the risk of sundries falling into the inside of the motor to form a short circuit or other risks

• Equipped with high torque precision variable speed gearbox: Gear machining precision achieves 7-level precision, reaching the level of automotive gears.The box is equipped with overload protection, equipped with liquid lubricant, and carefully crafted with professional hole processing technology.

• Integrated multi-function control system: The integrated control system of indicators for electric current and magnetic force attraction, and convenient and durable membrane switch creates a comfortable and relaxing work pleasure.

Please operate in strict accordance with the following requirements and specifications when working:

• Safety belts should be used, especially in high-altitude operations and side drilling operations, safety belts must be used to prevent accidental power outages and safety accidents.

• Make sure that the contact surface of the magnetic seat is flat, and clean it with a brush. It is strictly forbidden to drag the magnetic seat back and forth, which will accelerate the wear of the bottom of the magnetic seat and cause unstable suction.

• Iron filings and material cores should not be in direct contact with the skin to prevent burns.

• After drilling through a hole, the motor should be shut down after empty drilling for a few seconds for heat dissipation, which can protect the motor well.

• The carbon brushes should be replaced when worn 2/3 to protect the drill commutator.
