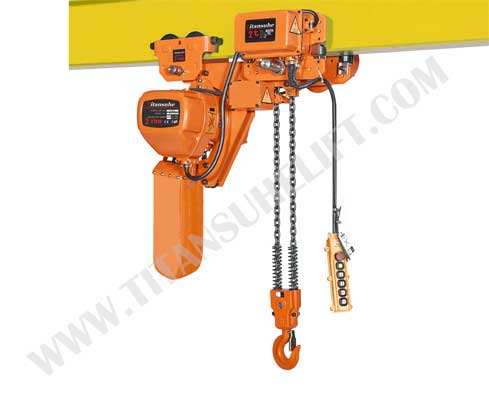

With the innovative design to combine both manual trolley and motor trolley with an electric chain hoist, TITANSUHE's low headroom electric chain hoist greatly reduces the space requirement and improves accessibility. It's your ideal solution for applications in confined spaces.
Model No.: HHB low headroom
Capacity: 500kg up to 25000kg
Standard Lift: 3M (10Ft), Longer chain available upon request
Lifting Speed: Single and Dual speed
Power supply: 3 Phase, 380v, 50hz
Color: Powder painting in orange color, other colors are available by request
Packing: Wooden box

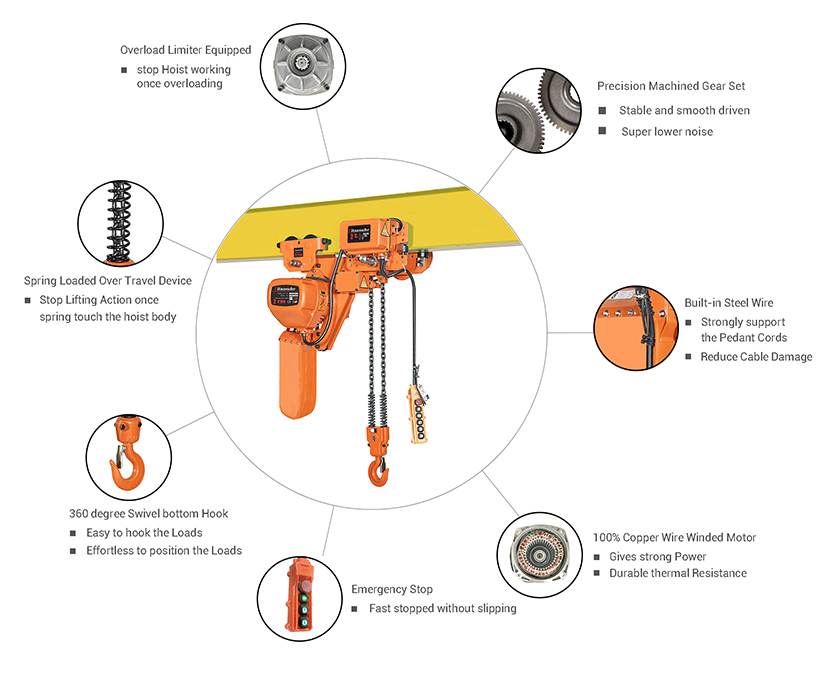

Precision Machined Gear Set-Provide stable and smooth drive with super lower noise.
100% Copper Wire Winded Motor-Gives strong power and durable thermal resistance.
Overload Limiter Equipped-Will stops the hoist from working once the load exceeds preset load, normally 120%-160% of the rated load.
Quick Plug Pedant Control-For quick and easy installation and maintenance.
Spring Loaded Over Travel Device-Stop lifting action one spring touch the hoist body.
360-degree swivel bottom hook-Easy hook and position the loads to where you desire to.
Built-in Steel Wire- Gives strong support to pedant cords, and reduces cable damage or broken by its deadweight.
Innovative Design-Makes the hoist more compact, dynamic, precise, economical, and efficient.
Low-Headroom-Less space requirement, improve accessibility and is ideal for applications in confined space.
Quiet Operation-Super low noise provides quiet operation, helps operators reduce work fatigue, and improves efficiency.
Highest Safety Features-Emergency stops, over traveling limit switch, exceeding load limit, electric and mechanical brake system.
Reliable and Durable Service-Dual-geared driven system enables smoothly driven with low noise, heat-treated components of high strength, and super wear resistance which greatly increase the service life.
Wide Applications-From small workshops to large industrial plants and some harsh environments such as shipyards, chemical industries and so on.
Custom Electric Chain Hoist
1 ton electric chain hoist with trolley
Model | Capacity ton | Standard Lift m | Test Load kN | Motor Power (kW) Single/Dual | No. of Chain | Dia of Chain mm | Lifting Speed (m/min) Single/Dual | Net Weight kg | Extra weight per metre of extra lift kg |
HHB-0.5AL | 0.5 | 3 | 6.25 | 0.75,0.8/0.27 | 1 | 6.3 | 6.8,6.9/2.3 | 47 | 0.81 |
HHB-1.0AL | 1.0 | 3 | 12.5 | 1.5,1.8/0.6 | 1 | 7.1 | 6.6,6.9/2.3 | 61 | 1.1 |
HHB-1.0BL | 1.0 | 3 | 12.5 | 0.75,0.8/0.27 | 2 | 6.3 | 3.4,3.5/1.2 | 52 | 1.62 |
HHB-2.0AL | 2.0 | 3 | 25 | 3.0,3.0/1.0 | 1 | 10 | 6.6,6.8/2.3 | 115 | 2.3 |
HHB-2.0BL | 2.0 | 3 | 25 | 1.5,1.8/0.6 | 2 | 7.1 | 3.3,3.3/1.1 | 73 | 2.2 |
HHB-3.0AL | 3.0 | 3 | 37.5 | 3.0,3.0/1.0 | 1 | 11.2 | 5.4,5.4/1.8 | 122 | 2.8 |
HHB-3.0BL | 3.0 | 3 | 37.5 | 3.0,3.0/1.0 | 2 | 10 | 4.4,4.5/1.5 | 131 | 4.7 |
HHB-5.0L | 5.0 | 3 | 62.5 | 3.0,3.0/1.0 | 2 | 11.2 | 2.8,2.7/0.9 | 151 | 5.6 |
HHB-7.5L | 7.5 | 3 | 94 | 3.0,3.0/1.0 | 3 | 11.2 | 1.8,1.8/0.6 | 266 | 8.4 |
HHB-10L | 10 | 6 | 125 | 3.0,3.0x2/1.0x2 | 4 | 11.2 | 2.7,2.7/0.9 | 335 | 11.2 |

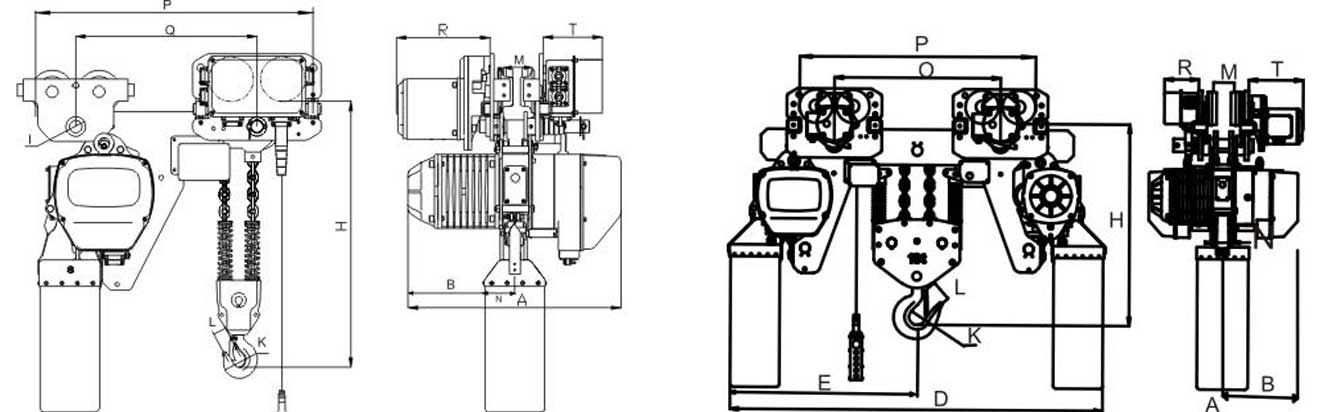

Model | Capacity ton | H mm | A mm | B mm | D mm | E mm | I mm | K mm | L mm | M mm | N mm | P mm | Q mm | R mm | T mm | I-beam size mm |
HHB-0.5AL | 0.5 | 440 | 460 | 230 | / | / | 31 | 35 | 25 | 25 | 17 | 206 | 111 | 142 | 231 | 58-153 |
HHB-1.0AL | 1.0 | 480 | 520 | 260 | / | / | 31 | 40 | 31 | 31 | 22 | 206 | 111 | 142 | 231 | 58-153 |
HHB-1.0BL | 1.0 | 570 | 615 | 295 | / | / | 31 | 47 | 31 | 31 | 22 | 206 | 111 | 142 | 231 | 58-153 |
HHB-2.0AL | 2.0 | 535 | 615 | 295 | / | / | 31 | 47 | 38 | 38 | 30 | 237 | 127 | 142 | 231 | 82-178 |
HHB-2.0BL | 2.0 | 535 | 520 | 260 | / | / | 31 | 47 | 38 | 38 | 30 | 237 | 127 | 142 | 231 | 82-178 |
HHB-3.0AL | 3.0 | 640 | 615 | 295 | / | / | 36 | 58 | 47 | 47 | 36 | 265 | 140 | 142 | 231 | 100-178 |
HHB-3.0BL | 3.0 | 685 | 615 | 295 | / | / | 36 | 58 | 47 | 47 | 36 | 265 | 140 | 142 | 231 | 100-178 |
HHB-5.0L | 5.0 | 740 | 615 | 295 | / | / | 43 | 60 | 48 | 48 | 43 | 296 | 156 | 142 | 231 | 100-178 |
HHB-7.5L | 7.5 | 890 | 615 | 295 | / | / | 43 | 85 | 80 | 80 | 55 | 296 | 156 | 142 | 231 | 100-178 |
HHB-10L | 10 | 880 | 630 | 315 | 1640 | 820 | 54 | 85 | 80 | 80 | 55 | 366 | 191 | 142 | 231 | 150-220 |
