Lifting Loop with Socket

This wire lifting loops can be used to connect lifting hoists to assist service users in safe lifting or repositioning. Wire lifting loops help lift most types of precast concrete and are especially suitable for all thread models. The wire rope lifting loop is featured for flexibility and convenience store.


Wire rope lifting loop can withstand loads ranging from 0.5T up to 12.5T. Operator should special attention that the screw parts are completely tightened into the hanging object, so to avoid dirty screw part during installation.

pho

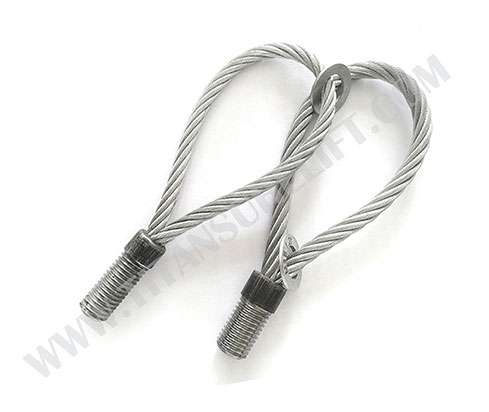

Lifting Loops Precast Concrete

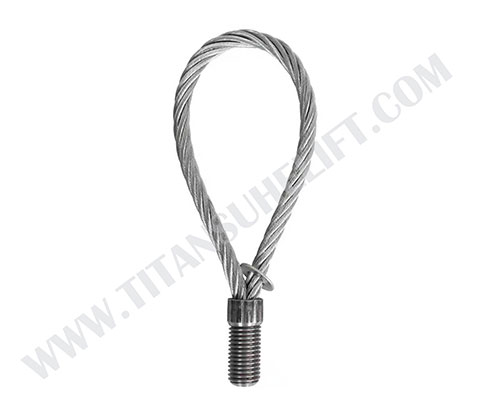

Wire Rope Lifting Loop

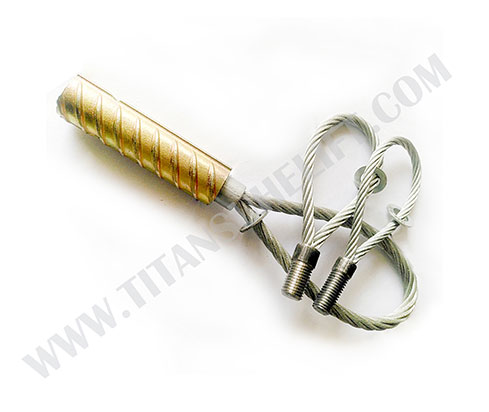

Wire Lifting Loops

Data Sheet of Lifting Loop with Socket

Item No.

Capacity

Thread socket
(mm)

Loop
(mm)

Label
(mm)

(T)

M/Rd

e

F

d

H

lb

D

d

Φ

SHLL01

0.5t

12

25

35

6

155

60

37

23

20

SHLL02

1.2t

16

30

45

8

165

60

37

23

20

SHLL03

2t

20

38

53

10

215

90

37

23

20

SHLL04

2.5t

24

45

60

12

255

100

37

23

20

SHLL05

4t

30

58

78

16

300

120

37

23

20

SHLL06

6.3t

36

70

90

18

360

140

52

38

40

SHLL07

8t

42

77

107

20

425

160

52

38

40

SHLL08

12.5t

52

85

115

26

530

180

52

38

40

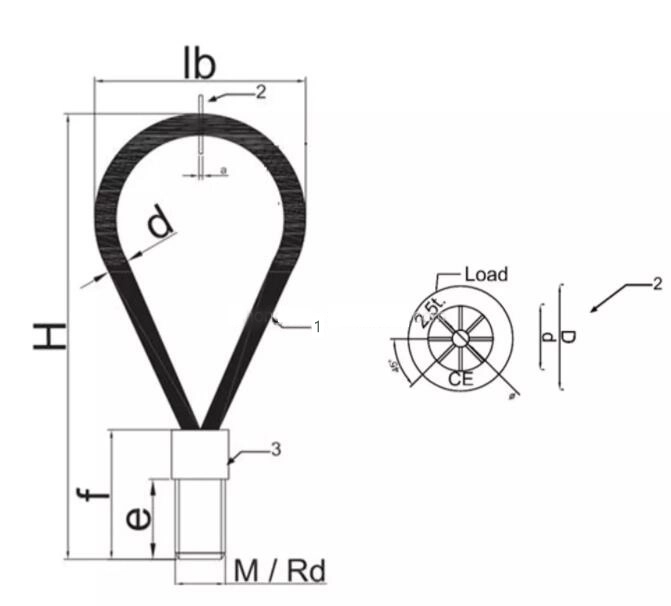

Drawing of Wire Rope Lifting Loop with Socket

Drawing of Wire Rope Lifting Loop with Socket
