TITANSUHE's LH/LS model Snatch Blocks are designed for heavy-duty purposes. With drop forged and heat-treated hook/shackle, this snatch block can meet the identification, ductility, design factor, and proof load of ASME B30.26. With hook or shackle assembled, this snatch block can be either used as suspension or movable to attach to an anchor point.
Model No.: LH with hook assembled, LS with shackle assembled
Available Capacity: 2ton up to 50ton
Available Sheave Dia.: 3” to 23” for different capacity
Wire Rope Dia. To be used: 7mm to 50mm for different capacity
Color: Standard in Blue body+Red hook, other colors available by request
Packing: Kraft box

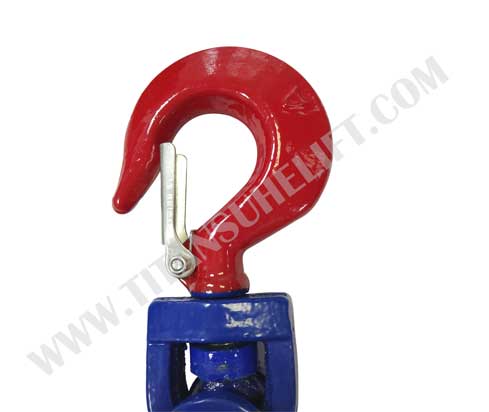

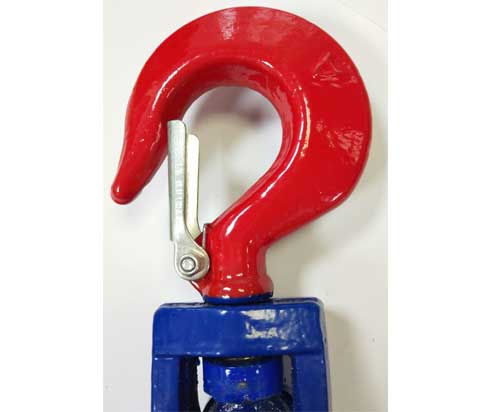

360-degree Swivel Hook for Easy and Quick attach to the anchor point and loads to be lift

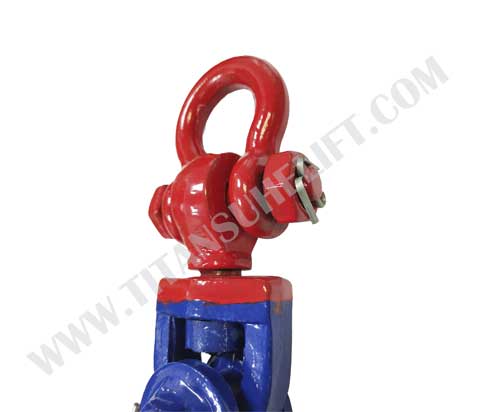

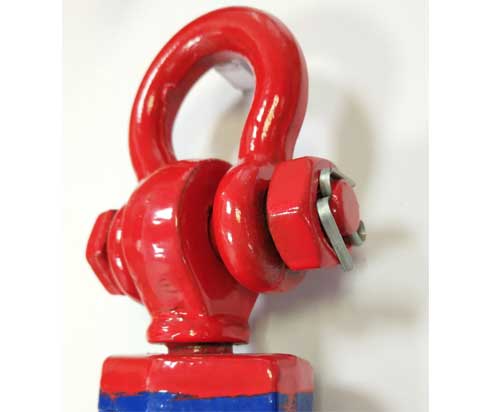

Shackle Type is more used where no need to move anchor point often. 360-degree Swivel Shackle allow easy attach to the loads be lift

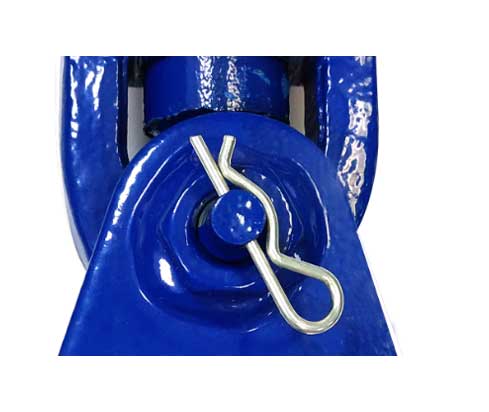

Cotter Pin Locked Shaft for quick shift from hook head to shackle head

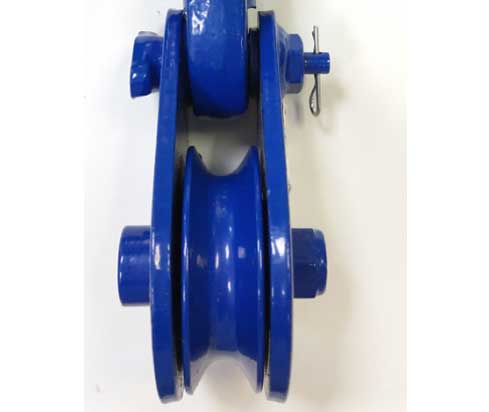

Bearing Type Pulley Wheel-Provide smooth rotation and labour saving

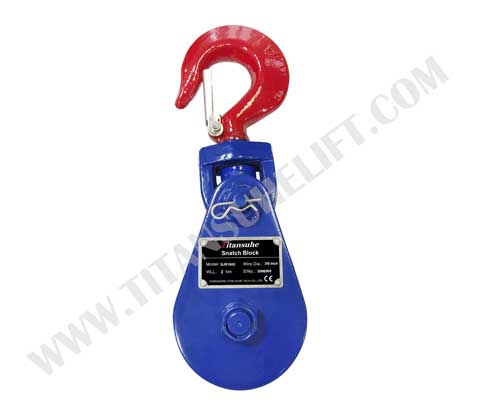

LH Heavy Duty Snatch Block (Hook Type )

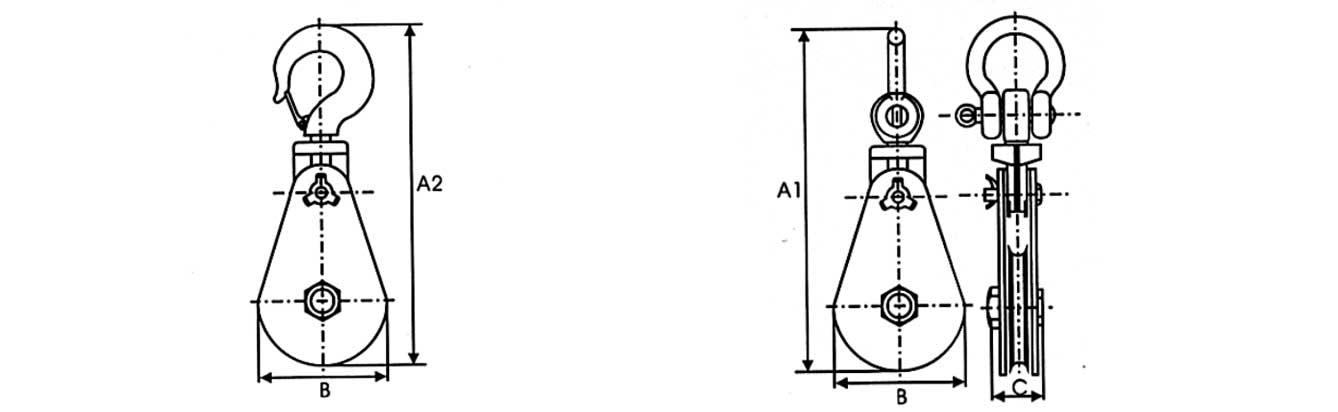

Type | S.W.L | Sheave Dia. | Dimension | For Wire Dia. | N.W. | ||
Hook | (t) | (mm) | A2(mm) | B(mm) | C(mm) | (mm) | (kg) |
LH3"x1 | 2 | 75 | 292 | 82 | 70 | 7-9 | 4 |
LH4-1/2"x1 | 4 | 115 | 358 | 120 | 70 | 10-12 | 6.1 |
LH6"x1 | 4 | 150 | 412 | 160 | 70 | 16-18 | 13.8 |
LH6"x1 | 8 | 150 | 498 | 160 | 93 | 20-22 | 14.4 |
LH8"x1 | 8 | 200 | 549 | 210 | 93 | 20-22 | 16 |
LH8"x1 | 15 | 200 | 672 | 230 | 102 | 22-24 | 24 |
LH10"x1 | 10 | 250 | 695 | 260 | 115 | 24-26 | 37.5 |
LH10"x1 | 12 | 250 | 701 | 260 | 115 | 24-26 | 42 |
LH12"x1 | 12 | 300 | 797 | 310 | 133 | 24-26 | 56 |
LH12"x1 | 15 | 300 | 797 | 310 | 133 | 26-28 | 65 |
LH14"x1 | 22 | 355 | 960 | 365 | 140 | 28-32 | 90 |
LH16"x1 | 22 | 400 | 1027 | 415 | 140 | 28-32 | 108 |
LH16"x1 | 30 | 400 | 1085 | 415 | 155 | 32-35 | 135 |
LH20"x1 | 30 | 500 | 1177 | 514 | 162 | 32-35 | 210 |
LH24"x1 | 50 | 600 | 1445 | 625 | 240 | 46-50 | 408 |

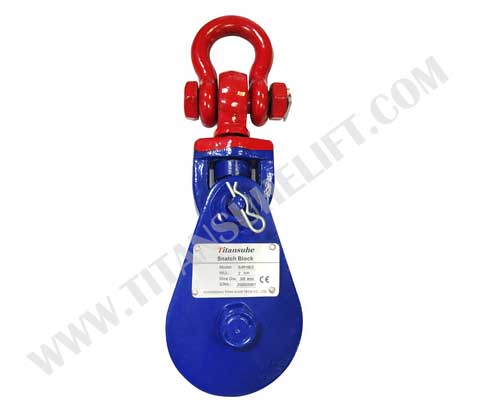

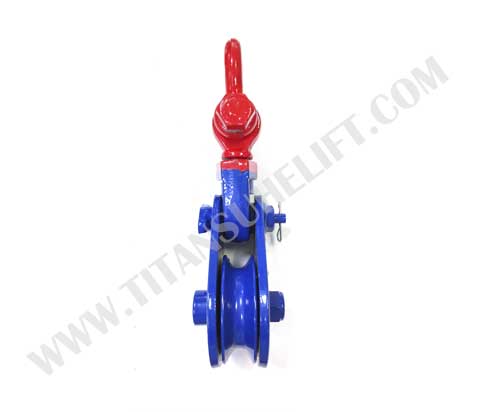

LS Heavy Duty Snatch Block (Shackle Type)
Type | S.W.L | Sheave Dia. | Dimension | For Wire Dia. | N.W. | ||||
Shackle | (t) | (mm) | A2(mm) | B(mm) | C(mm) | (mm) | (kg) | ||
LS3"x1 | 2 | 75 | 286 | 82 | 70 | 7-9 | 4 | ||
LS4-1/2"x1 | 4 | 115 | 345 | 120 | 70 | 10-12 | 6.1 | ||
LS6"x1 | 4 | 150 | 399 | 160 | 70 | 16-18 | 13.8 | ||
LS6"x1 | 8 | 150 | 475 | 160 | 93 | 20-22 | 14.4 | ||
LS8"x1 | 8 | 200 | 528 | 210 | 93 | 20-22 | 16 | ||
LS8"x1 | 15 | 200 | 663 | 230 | 102 | 22-24 | 24 | ||
LS10"x1 | 10 | 250 | 679 | 260 | 115 | 24-26 | 37.5 | ||
LS10"x1 | 12 | 250 | 679 | 260 | 115 | 24-26 | 42 | ||
LS12"x1 | 12 | 300 | 767 | 310 | 133 | 24-26 | 56 | ||
LS12"x1 | 15 | 300 | 884 | 310 | 133 | 26-28 | 65 | ||
LS14"x1 | 22 | 355 | 952 | 365 | 140 | 28-32 | 90 | ||
LS16"x1 | 22 | 400 | 1019 | 415 | 140 | 28-32 | 108 | ||
LS16"x1 | 30 | 400 | 1126 | 415 | 155 | 32-35 | 135 | ||
LS20"x1 | 30 | 500 | 1256 | 514 | 162 | 32-35 | 208 | ||
LS24"x1 | 50 | 600 | 1525 | 625 | 240 | 46-50 | 418 | ||
