Lashing End Fittings

End-fittings are the essential parts made by metal pieces on the ends of ratchet straps, winch straps, chain sings, wire rope slings and polyester sling. They are all designed for easy hooking in or attached to the anchor point on trucks or other transport facilities so that you can get tension from ratchet strap to tighten and secure goods/cargo firmly and safely even under dynamic movement.


TITANSUHE provide a wide range end fittings for tie down straps and ratchet straps to European, USA and Australia market. These end fittings include wire hook, S hook, J hook, Swan Hook, Claw hook, flat hook, Delta ring, D ring, E buckle and so on. They are all treated with durable zinc plating for weather resistance and come in different sizes to suit the strap width. You can find more details as below.

pho
equipment used for material handling
material handling devices
material handling
material handling tools
material handling products
transport equipment in material handling

Data Sheet of Lashing End Fittings

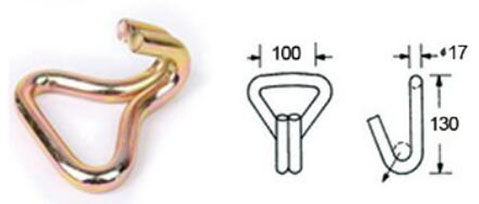

TCSH10101H Lashing End Fittings

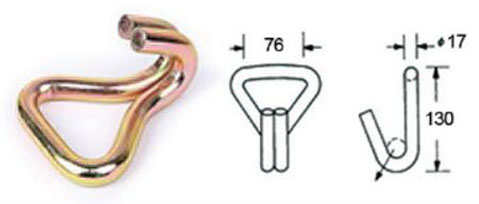

TCSH75101H Lashing End Fittings

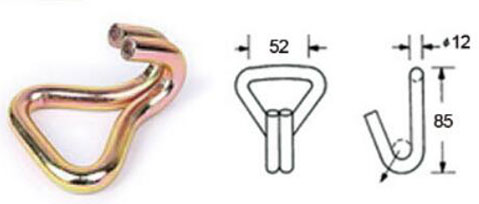

TCSH50101H Lashing End Fittings

TCSH10101H               4" B/S: 10000kg/22000lbs

TCSH75101H                3" B/S: 10000kg/22000lbs

TCSH50101H                    2" B/S: 5000kg/11000lbs

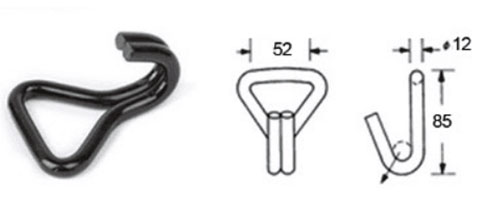

TCSH50501B Lashing End Fittings

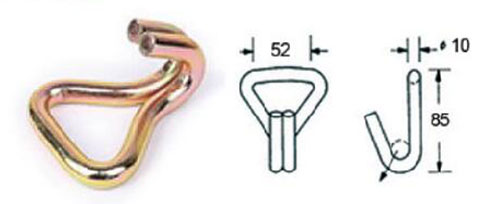

TCSH50401H Lashing End Fittings

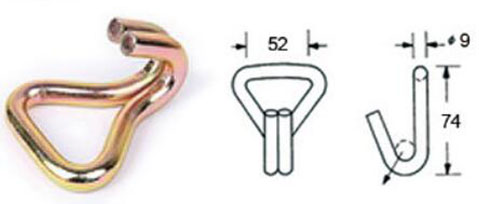

TCSH50301H Lashing End Fittings

TCSH50501B                 2" B/S: 5000kg/11000lbs

TCSH50401H           2" 50mm B/S: 4000kg/88000lbs

TCSH50301H              2" 50mm B/S: 5000kg/11000lbs

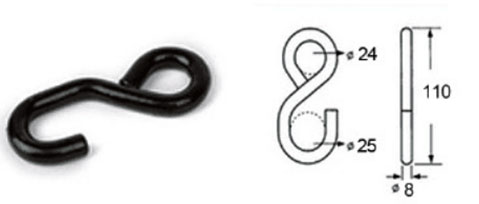

TCSH25083H Lashing End Fittings

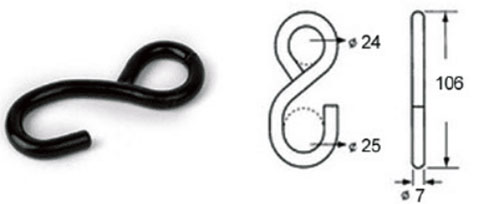

TCSH25051H Lashing End Fittings

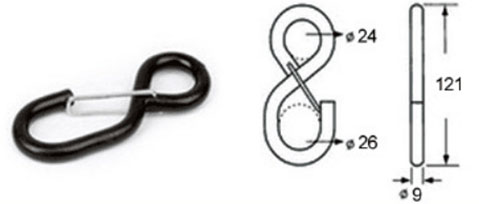

TCSH25084H Lashing End Fittings


TCSH25083H               25mm B/S:800kg/1760lbs

TCSH25051H                25mm B/S:500kg/1100lbs

TCSH25084H                   25mm B/S:800kg/1760lbs

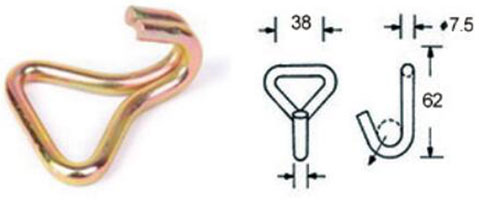

TCSH35201H Lashing End Fittings

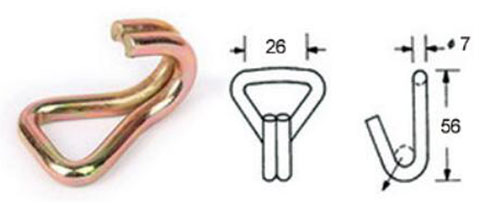

TCSH25151H Lashing End Fittings

TCSH25051H Lashing End Fittings

TCSH35201H            35mm B/S: 2000kg/44000lbs

TCSH25151H             25mm B/S: 1500kg/33000lbs

TCSH25051H                25mm B/S: 500kg/11000lbs

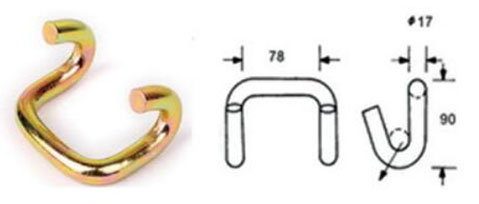

TCSH75101U Lashing End Fittings

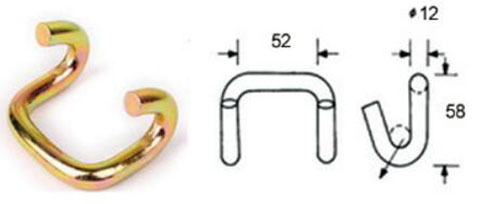

TCSH50501U Lashing End Fittings

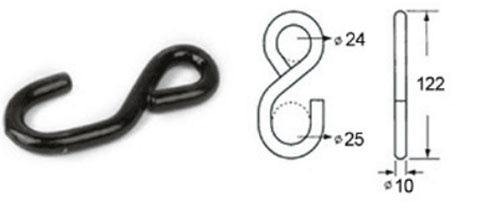

TCSH25151BH Lashing End Fittings

TCSH75101U           75mm B/S: 10000kg/22000lbs

TCSH50501U             50mm B/S: 5000kg/11000lbs

TCSH25151BH              25mm B/S: 1500kg/33000lbs

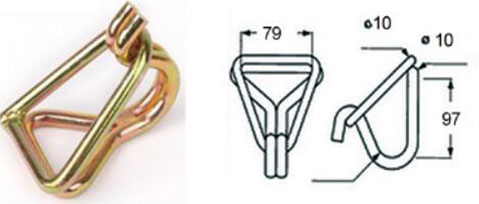

TCSH75101T Lashing End Fittings

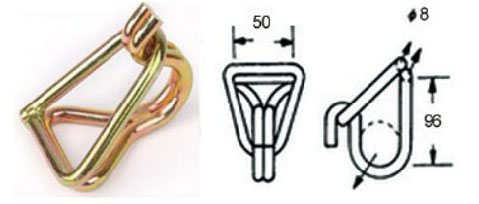

TCSH50501T Lashing End Fittings

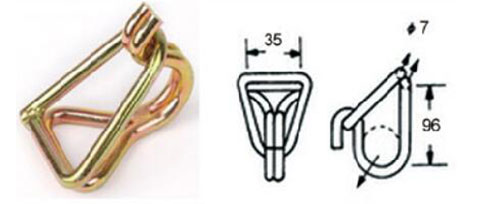

TCSH35301T Lashing End Fittings

TCSH75101T            75mm B/S: 10000kg/22000lbs

TCSH50501T              50mm B/S: 5000kg/11000lbs

TCSH35301T                  35mm B/S: 3000kg/6600lbs

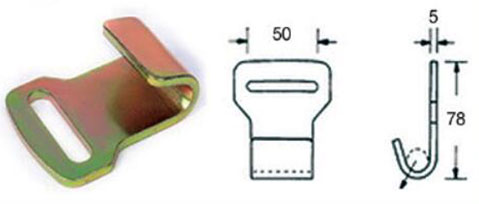

TCSH50501F Lashing End Fittings

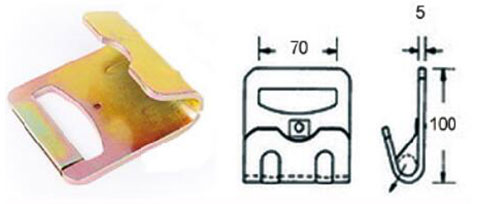

TCSH75801F Lashing End Fittings

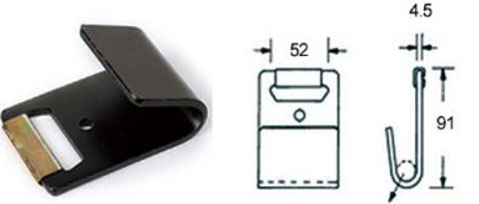

TCSH50401T Lashing End Fittings

TCSH50501F             50mm B/S: 4000kg/8800lbs

TCSH75801F              75mm B/S: 8000kg/17600lbs

TCSH50401T                50mm B/S: 5000kg/11000lbs

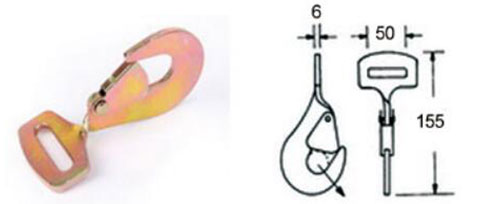

TCSH50501W Lashing End Fittings

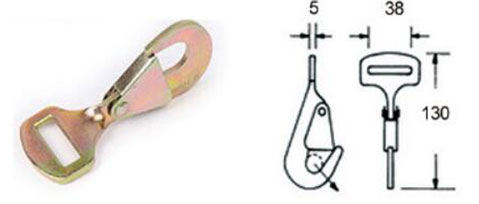

TCSH35301W Lashing End Fittings

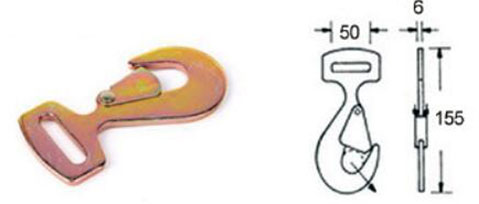

TCSH50502W Lashing End Fittings

TCSH50501W         50mm B/S: 5000kg/11000lbs

TCSH35301W            35mm B/S: 3000kg/6600lbs

TCSH50502W               50mm B/S: 5000kg/11000lbs
