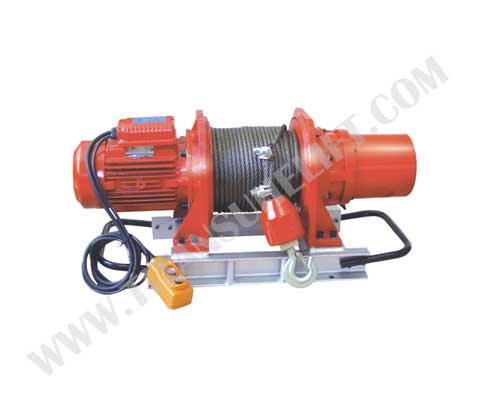

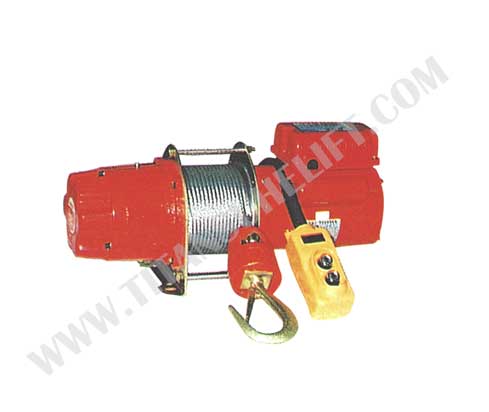

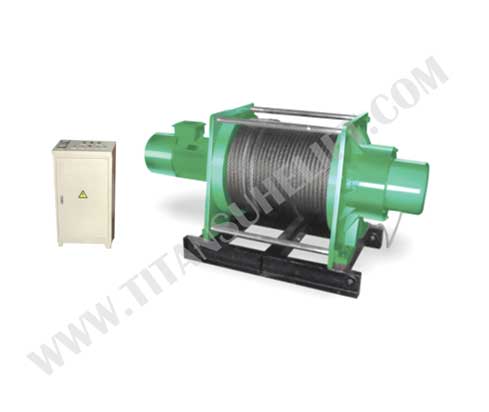

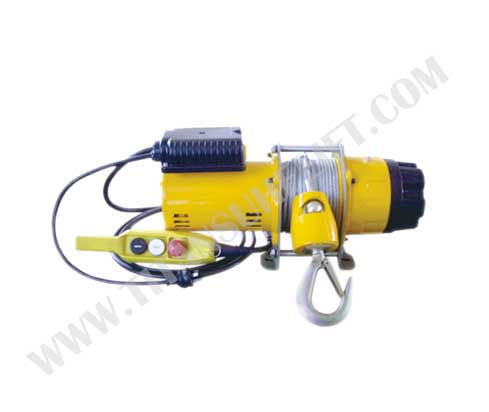

With both lifting and pulling features, TITANSUHE's Electric Wire Rope Windlass is mainly designed for construction and buildings that need an extremely long-distance overhead lifting that regular chain hoists and wire rope hoists can not reach.
Model | Load rated | Speed | Motor | Voltage | Frequency | Lifting Height | Steel cable | N.W. | Percentage duty |
KDJ-200E | 200 | 10-15 | 0.8x4 | 1-phase 120v, | 50 | 29 | 6x30 | 36 | 25% ED (150 |
KDJ-250E | 250 | 10-15 | 1.0x4 | 50 | 29 | 6x30 | 40 | ||
KDJ-300E | 300 | 10-15 | 1.5x4 | 50 | 29 | 7x30 | 49 | ||
KDJ-300E1 | 300 | 10-15 | 1.5x4 | 3-phase | 50 | 29 | 7x30 | 48 | |
KDJ-500E1 | 500 | 12-18 | 3.0x4 | 50 | 58 | 9x60 | 136 | ||
KDJ-750E1 | 750 | 12-18 | 4.0x4 | 50 | 58 | 9x60 | 149 | ||
KDJ-1000E1 | 7000 | 12-18 | 5.5x4 | 50 | 58 | 11x60 | 156 |

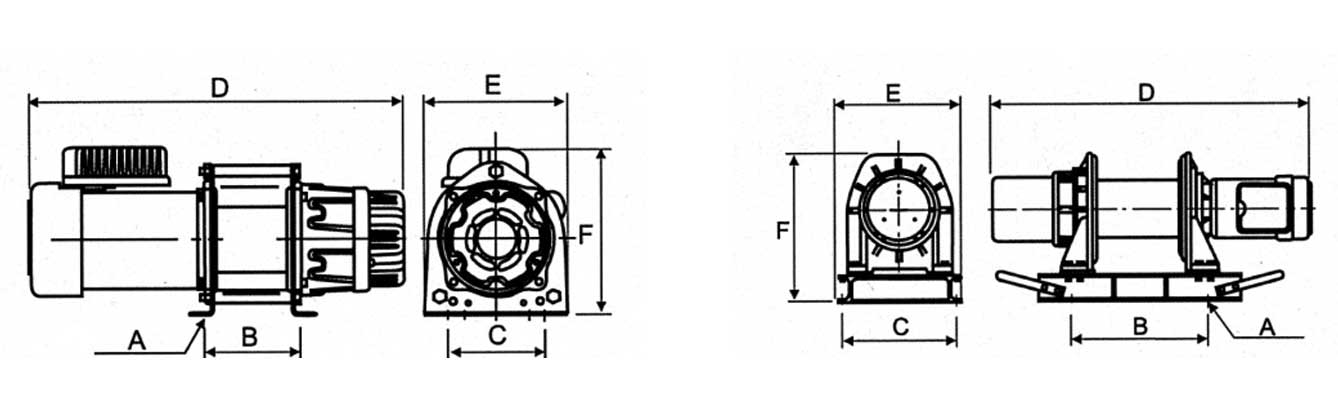

Symbol | KDJ-200E | KDJ-250E | KDJ-300E | KDJ-300E1 | KDJ-500E1 | KDJ-750E1 | KDJ-1000E1 |
A(mm) | 4-ɸ 10.5 | 4-ɸ 10.5 | 4-ɸ 10.5 | 4-ɸ 10.5 | 4-ɸ 10.5 | 4-ɸ 10.5 | 4-ɸ 10.5 |
B(mm) | 142 | 142 | 172 | 172 | 400 | 400 | 400 |
C(mm) | 142 | 142 | 142 | 142 | 330 | 330 | 300 |
D(mm) | 510 | 525 | 540 | 548 | 922 | 935 | 935 |
E(mm) | 210 | 210 | 210 | 210 | 372 | 372 | 372 |
F(mm) | 246 | 246 | 246 | 246 | 430 | 430 | 430 |
Model | Load rated | Speed | Motor | Voltage | Frequency | Lifting Height | Steel cable | N.W. | Percentage duty | |
KDJ-2200E1 | 2200 | 7-12.5 | 7.5x4 | 3-phase | 50 | 97 | 16x100 | 450 | 25% ED (150 | |
KDJ-3200E1 | 3200 | 6.3-8.8 | 7.5x6 | 50 | 97 | 18x100 | 500 | |||
KDJ-5000E1 | 5000 | 8.0-12 | 15x4 | 50 | 192 | 22.4x200 | 1500 | |||
KDJ-10000E1 | 10000 | 7-11 | 30x4 | 50 | 235 | 33.2x250 | 3000 | |||
| SymbolKDJ-2200E1KDJ-3200E1KDJ-5000E1KDJ-10000E1A(mm)4-ɸ 228-ɸ 308-ɸ 328-ɸ 38B(mm)6008479201600C(mm)4996806801100D(mm)1160143118602350E(mm)5657407401200F(mm)6588609051255 | ||||||||||
