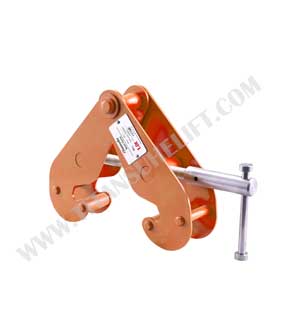

JG-E Extra Heavy Duty Beam Clamp

Name: JG-E Extra Heavy Duty Beam Clamp
Brand: CHONGQING TITAN SUHE TECH CO., LTD.
Price: 25 USD
Rating: 4.5 (5 reviews)

To work as a temporary anchor point or a flexible supporting point, TITANSUHE's JG-E series beam clamp is designed for extra heavy-duty with a safety factor above 5 times the rated load. Three pins design on each side gives strong and durable support when it grips on beam or track.

Get A Quote

Quick View of JG-E Extra Heavy Duty Beam Clamp

Model No.: JG-E
Capacity Range: 1ton up to 10ton
Min. Flange width: 75mm
Max. Flange Width: 320mm
Color: Powder painting in orange, other colors are available upon request
Packing: Kraft box

Features and Advantages of JG-E Extra Heavy Duty Beam Clamp

Special Designed Clamping Jaw- Well distributes the loads away from flange width.
Three Supporting Shaft- Gives stronger clamping force and durable support.
Extra Wider Flange Width- The maximum jaw opening can reach 320mm, suitable for the different sizes of I beam and H beam.
Threaded handle- Enable easy and simple mounting as well as adjustment.
Low headroom- Can be applied where the space is limited.
Extra Heavy-duty- 5 times safety factor, designed for Industry purpose and professional overhead lifting.
Industrial Powder Coating- Meet RoHS and REACH requirements.

Data Sheet of JG-E Extra Heavy Duty Beam Clamp

Model	Capacity (KG)	Adjustable Beam width (mm)	A Max. mm	B Min.mm	B Max. mm	Dimension(mm)							Weight (KG)
						C	D	E	F Min.	F Max.	G	H
JG-E-1	1000	75-230	278	182	380	64	4	217	150	90	26	19	4.5
JG-E-2	2000	75-230	278	182	380	76	6	217	150	90	25	21	5
JG-E-3	3000	80-320	356	230	500	100	8	277	220	145	48	27	9.5
JG-E-5	5000	90-320	356	230	500	112	8	277	220	145	45	33	11.3
JG-E-10	10000	90-320	356	250	520	120	8	285	230	160	52	39	15.9

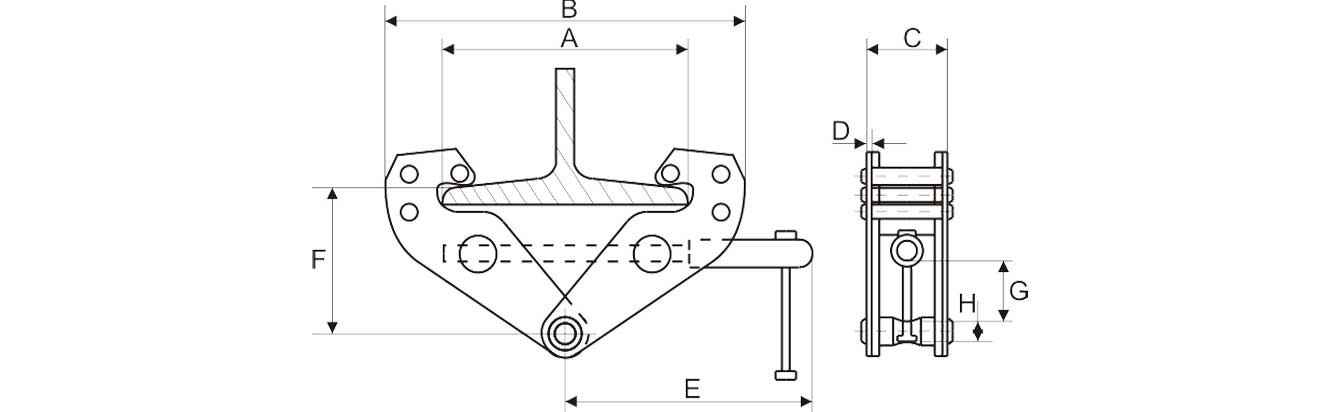

Drawing of JG-E Extra Heavy Duty Beam Clamp
