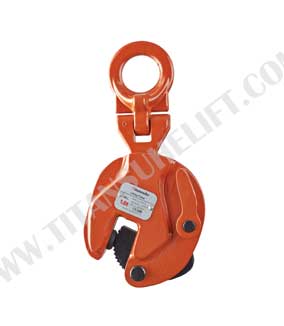

Vertical Lifting Clamps are used to handle the steel plate at a certain thickness. The teeth and grip are the load-bearing parts and need to firmly grip the metal plate. So the strength and abrasion resistance of these two parts are very critical. All TITANSUHE's lifting clamps are equipped with quenched and tempered teeth and grip to ensure super performance.
Model No.: JCD
Capacity: 0.8t up to 20t
Jaw opening from 0-120mm for different capacity
Color: Powder painting in orange, other colors are available upon request
Packing: Kraft box
Eye Type for easy and quick attachment
Thick and reinforced plate with high strength
Sharp Teeth for tight grip
Laser Cutting Plate- Nice Shape and burrs free.
High Strength- Made of alloy steel with reinforced plate, strong and durable.
Locking Device Equipped- Ensure complete safety when the jaw opens and closed.
Strong and Durable- High frequency quenched teeth and grip enhance the strength and durability.
Firmly Grip- Sharp teeth in high strength enable firm grip even on the thin steel sheet.
Wide Jaw Opening- Can grip sheet from 0.1mm up to 120mm (Different capacity).

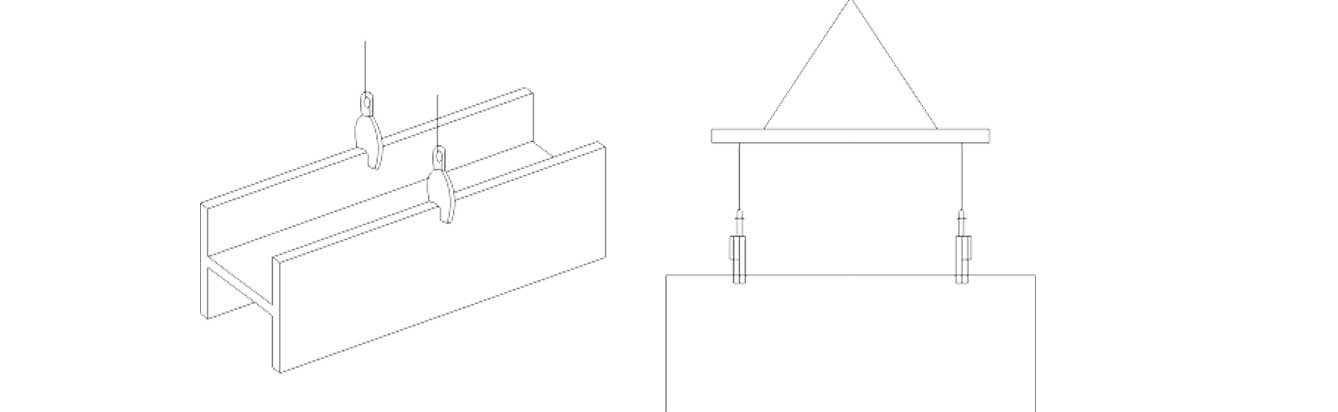

One Piece or Pair Use- Can be decided according to the sheet weight to be lifted and moved.
.
Model | Working load (kg） | Testing load | Opening Size | Net weight |
(kg) | (mm) | (kg) | ||
JCD-0.8 | 800 | 1600 | 0-16 | 2.8 |
JCD-1.0 | 1000 | 2000 | 0-22 | 4.2 |
JCD-2.0 | 2000 | 4000 | 0-25 | 5.5 |
JCD-3.2 | 3200 | 6400 | 0-35 | 9.5 |
JCD-5.0 | 5000 | 10000 | 0-50 | 16 |
JCD-8.0 | 8000 | 16000 | 0-60 | 23 |
JCD-10 | 10000 | 15000 | 0-80 | 33 |
JCD-12 | 12000 | 18000 | 20-90 | 37 |
JCD-16 | 18000 | 24000 | 40-100 | 46 |
JCD-20 | 20000 | 30000 | 60-120 | 76 |
For one-stop system service with crane clamps, Titansuhe assure you that all of our products and solutions are cost-effective and reliable.
