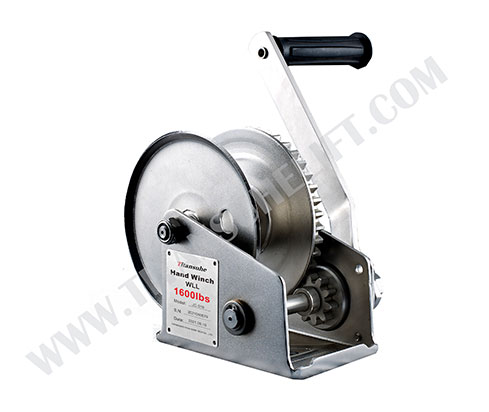

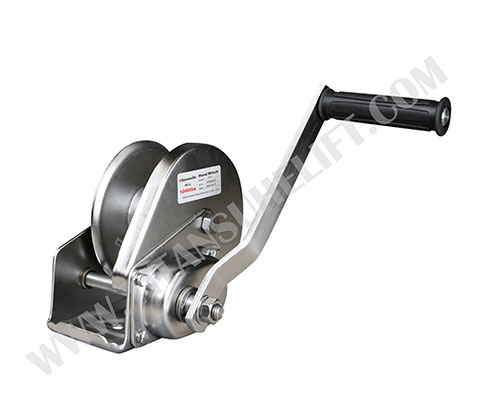

For pulling and lifting applications that need a oily free and super corrosion resistance, TITANSUHE’s JC-S Stainless Steel Hand Winch will help you go finish your tasks. All constructed by stainless steel material 304, this hand winch is weatherproof and corrosion resistant. As a versatile tool, it is ideal solution for your Pick-up or Trailers which need to expose in all kinds of weathers or harsh environmental.
Model No.: JC-C
Material: Stainless Steel 304
Pulling Capacity: 1200lbs, 1800lbs, and 2000lbs
Drum Capacity: 6m wire rope or strap
Color: Stainless steel self-color
Packing: Kraft box

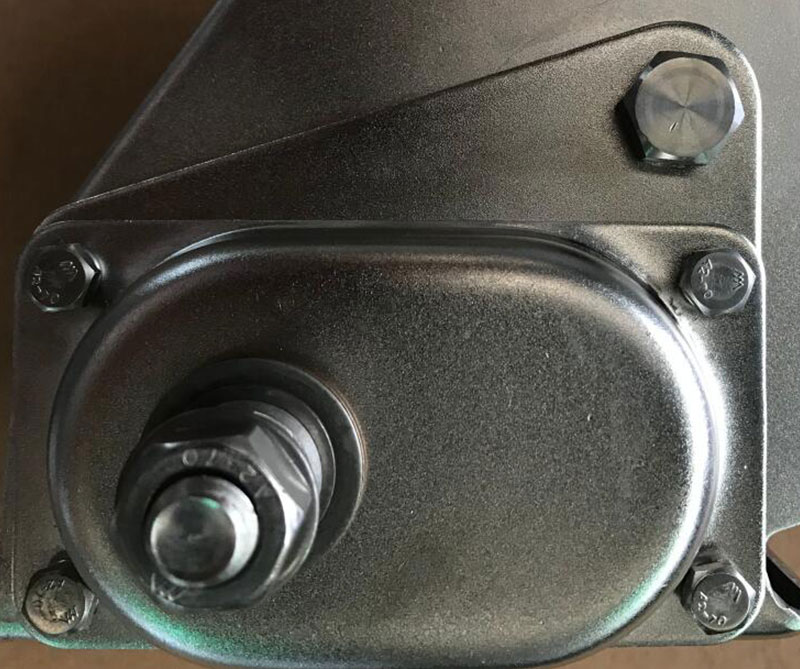

Enclosed Gear Set and Brake System-Well protect gears and brake from dust and debris, increase the service life
Dual Anchor Point-Provide firm and easy clamp for both wire rope and strap, no worry the end will drop off from the winch
Multiple Frame Mounting Positions-Can be mounted on floor, on wall or on a pole like car crane or jib crane to change over the lifting
Welded Drum-Robust and Durable
All-Stainless-Steel-Structure-Polished surface, bright looking
Super Corrosion Resistance and Weatherproof-All parts made of 304 stainless steel material to be specially used for the lifting and pulling in clean room, food industry, chemical industry, offshore and outdoor purpose
Long Service Life-Constructed with enclosed gear set and brake system which can well protect these parts from dust and debris that may reduce the service life
Positive and Firm Locking-Effected by the load pressure brake, prevent unintentional brake release during lifting/pulling
Small Cranking Effort-360-degree rotation crank handle with Ergonomic rubber grip enable comfortable and less effort cranking to lift/pull rated load
Model | JC-S12 | JC-S18 | JC-S26 | |
Rated Capacity | Lbs | 1200 | 1800 | 2600 |
Test Load | kN | 8 | 12.13 | 17.64 |
Gear ratio | 4.2:1 | 5:01 | 10:01 | |
Number of speed | 1 | 1 | 1 | |

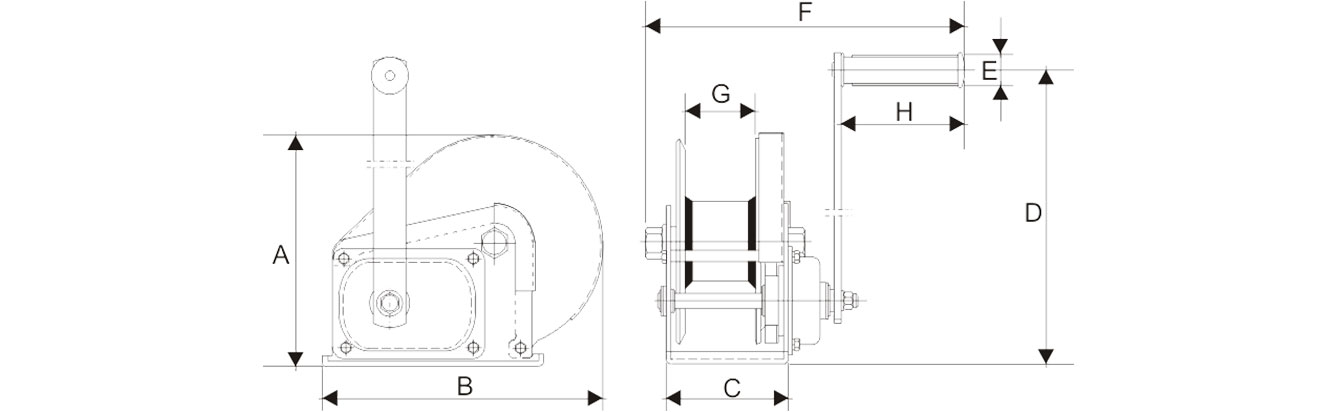

Dimensions (mm) | A | 156 | 203 | 216 |
B | 184 | 256 | 293 | |
C | 88 | 107 | 127 | |
D | 210 | 319 | 319 | |
E | 27 | 27 | 27 | |
F | 272 | 283 | 305 | |
G | 51 | 60 | 63 | |
H | 109 | 109 | 109 | |
Net Weight | kg | 3.7 | 7.7 | 10.1 |
Packing Measurement | cm | 16x16x22 | 35x20x23 | 35x24x24 |
Titansuhe have rope winches for sale bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.
