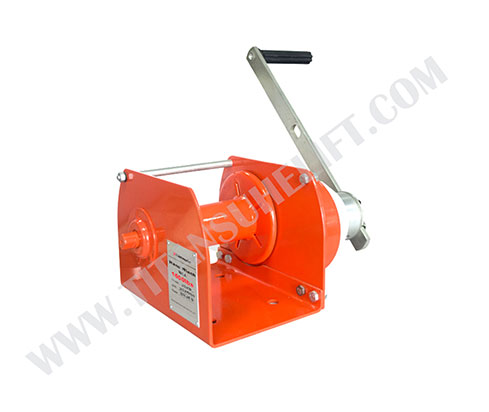

Ranges from 0.5ton, 1ton, 2ton and up to 3ton, TITANSUHE’s JC-E hand crank winch is designed for heavy lift during industrial applications. The maximum rope length can reach 40m which is specially for long distance pulling or high building lifting on construction site. As this hand winch china is for heavy load, the mount foundation is quite important.
Model | JC-E0.5 | JC-E1 | JC-E2 | JC-E3 | |
Rated Capacity | Ton | 0.5 | 1 | 2 | 3 |
Test Load | KN | 6.125 | 12.25 | 24.5 | 36.75 |
Gear ratio | 2.9:1 | 37:01:00 | 4.2:1 | 4.2:1 | |
Cable size x length | mm x m | 6.5x40 | 8x40 | 9.5x40 | 12.7x40 |
Mini Pulling Force | N | 120 | 120 | 152 | 200 |

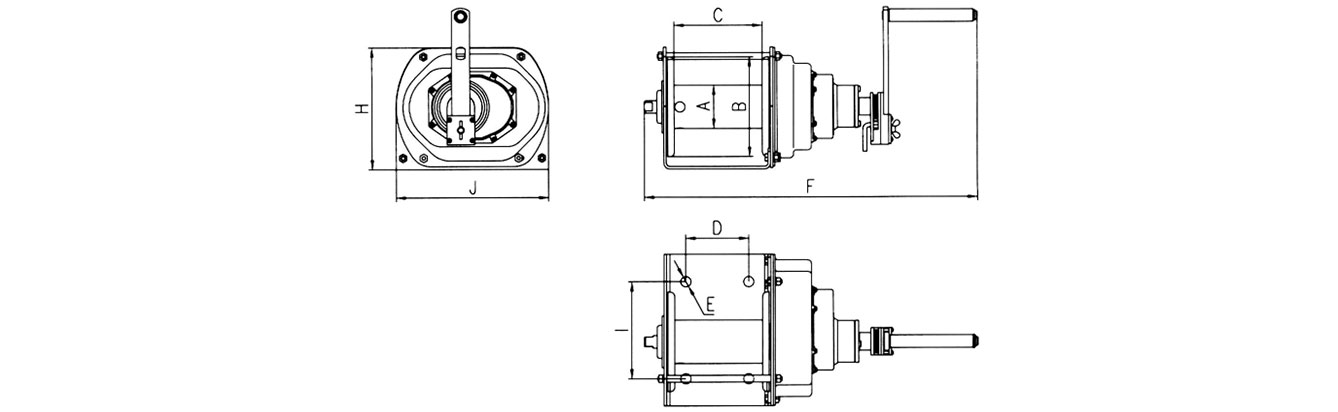

Dimension (mm) | A | 60 | 76 | 90 | 100 |
B | 140 | 175 | 190 | 230 | |
C | 150 | 154 | 195 | 205 | |
D | 100 | 110 | 155 | 155 | |
E | 15 | 18 | 18 | 18 | |
F | 403 | 443 | 490 | 549 | |
H | 182 | 214 | 230 | 296 | |
I | 130 | 170 | 170 | 170 | |
J | 245 | 266 | 300 | 365 | |
Net Weight | kg | 14.4 | 19.7 | 25.1 | 44.3 |
Packing Measurement | cm | 17x13x21 | 17x13x21 | 17x13x21 | 17x13x21 |
Titansuhe have wire rope winches bulk wholesale at competitive prices, which improve construction, manufacturing site, warehouse, mining, shipyard management and operation efficiency.
