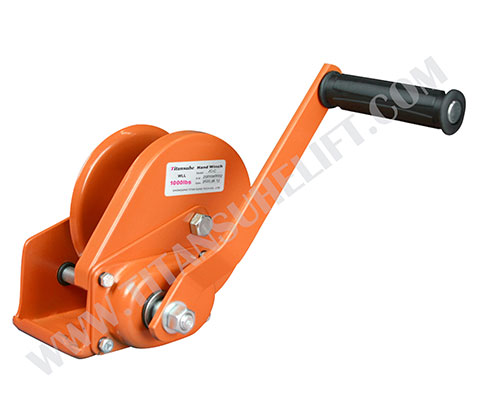

Constructed with a weatherproof Weston-Style automatic brake, JC-C Hand Winch from TITANSUHE is a super quality hand winch for heavy duty purpose. There are more safety features such as enclosed gear set, automatic brake system, dual wire rope anchor point, larger diameter drum, high gear ratio, etc. This hand winch is suitable for use in areas where electricity is not available or where electric appliances can not be safely operated on account of water, mud or dirt.
Model | JC-C12 | JC-C18 | JC-C26 | |
Rated Capacity | Lbs | 1200 | 1800 | 2600 |
Test Load | kN | 8 | 12.13 | 17.64 |
Gear ratio | 4.2:1 | 5:01 | 10:01 | |
Number of speed | 1 | 1 | 1 | |

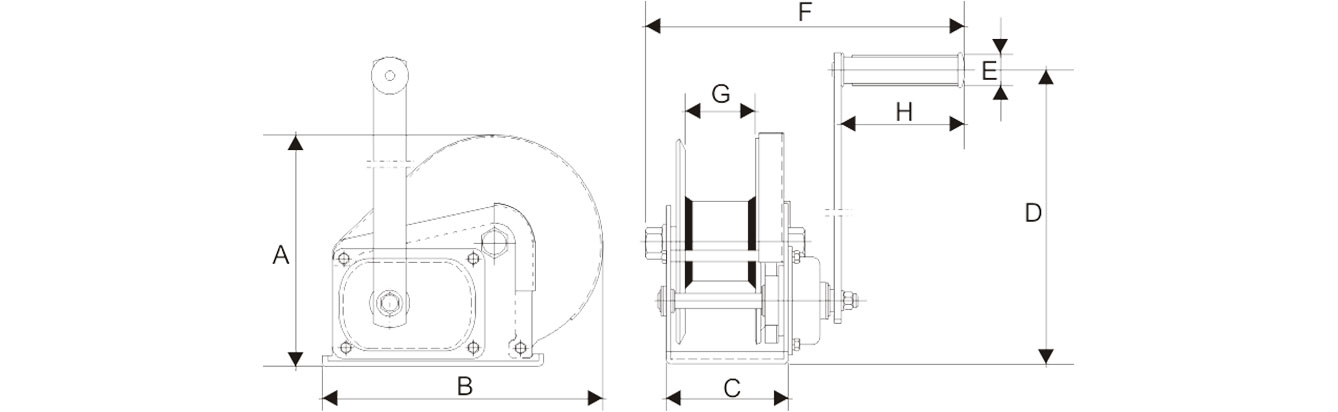

A | 156 | 203 | 216 | |
Dimensions (mm) | B | 184 | 256 | 293 |
C | 88 | 107 | 127 | |
D | 210 | 319 | 319 | |
E | 27 | 27 | 27 | |
F | 272 | 283 | 305 | |
G | 51 | 60 | 63 | |
H | 109 | 109 | 109 | |
Net Weight | kg | 3.7 | 7.7 | 10.1 |
Packing Measurement | cm | 16x16x22 | 35x20x23 | 35x24x24 |
Titansuhe is dedicated to providing a full range of rope winch for sale, we offer cost-effective and reliable solutions.
