During lifting operations, the load center is very important. Most of the lifting equipment can be used for vertical lifting only. Different from the regular beam clamp that used to be a below-the-hook device, TITANSUHE's JBC series beam clamp is equipped with a D shackle which can be used for horizontal anchoring or inclined anchoring.

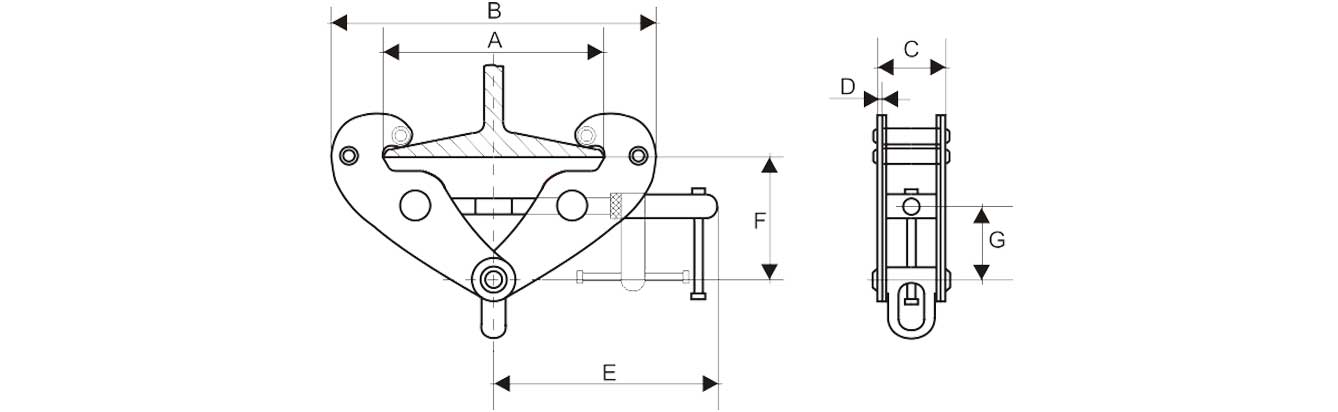

Model | Capacity | Adjustable Beam width | A Max. (mm) | B Min. (mm) | B Max. (mm) | Dimension (mm) | Weight | |||||
C | D | E | F Min. | F Max. | G | |||||||
JBC-1A | 1000 | 75-245 | 270 | 183 | 375 | 66 | 4 | 210 | 102 | 165 | 25 | 3.5 |
JBC-2A | 2000 | 75-245 | 270 | 183 | 375 | 74 | 6 | 210 | 102 | 165 | 25 | 4.5 |
JBC-3A | 3000 | 70-355 | 365 | 240 | 520 | 103 | 8 | 258 | 135 | 225 | 45 | 9.5 |
JBC-5A | 5000 | 70-355 | 365 | 240 | 520 | 111 | 10 | 258 | 135 | 225 | 45 | 11 |
JBC-10A | 10000 | 80-350 | 365 | 250 | 520 | 120 | 12 | 280 | 160 | 230 | 50 | 16 |
