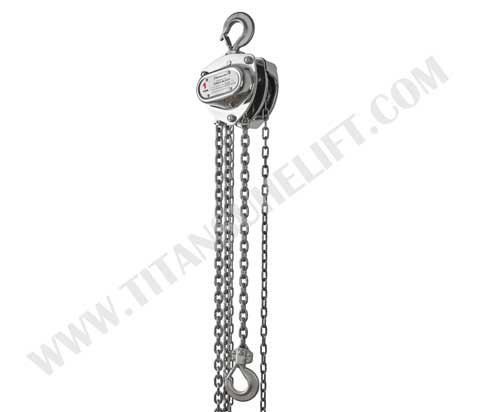

Constructed by all-stainless steel material, TITANSUHE's stainless steel chain hoist provides the ideal solution for applications that require super anti-corrosion or for use in cleanrooms. Except for the load-bearing gears and brake disc, all the other parts of this hand operated chain hoist are made of high-strength 304 stainless steel material.
Model No.: HSZ-S636
Available Capacity: 0.5ton, 1ton, 2ton and 3ton
Available Lifting Height: Regular in 3m(10ft), longer chain lengths are available by the request
Lifting Chain: Stainless steel material AISI304
Hand Chain: Unique chain size for all capacity hoist
Safety Factor: 4 times of rated working load
Packing: by kraft carton box
Innovative Hook Tip Design-Prevent safety latch slipping out the hook and help to visually detect the hook opening.

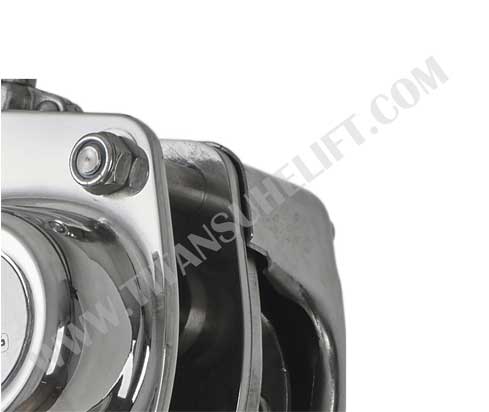

Crimping Edge Designed Hand Wheel Cover-Enable freehand chain pulling at angles without damage to the side cover.

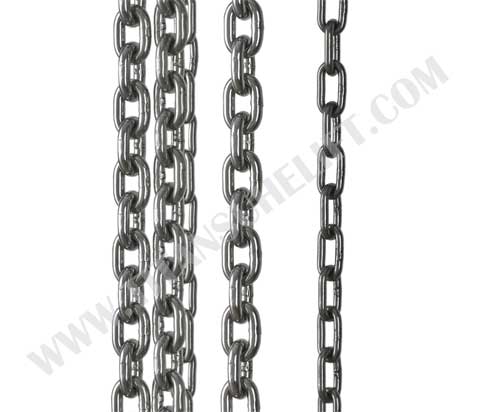

Automatic Machine Made Lifting Chain and Hand Chain-Unique dimension to well suit the hand chain and load chain sprocket, greatly reducing chain wear.
All-Stainless-Steel Structure-Strong for impact resistance and durable for corrosion resistance.
Fully Enclosed Gear Set-Protects gear set from contamination and debris, increase its service life.

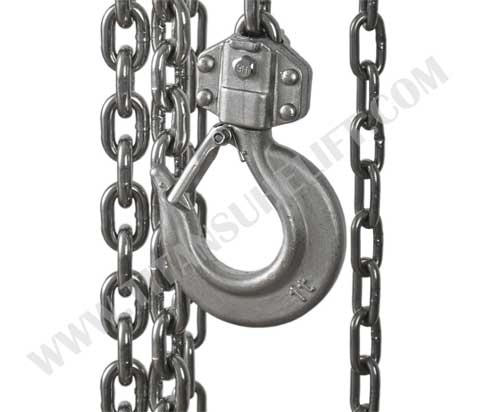

Drop Forged Top Hook and Bottom Hook-Both equipped with a safety latch that has bolt and nut connections for easy replacement in case you need to change a latch.
Crimping Edge Design of Side Cover-Free hand chain pulling at angles, can be used both for lifting and pulling.
Automatic Machine Made Lifting Chain and Hand Chain-All calibrated, in nice shape and unique dimension that can well seat in chain sprocket, no chain jamming, and climbing warry.
Precision Machined Gear Set-Provide smooth operation with minimum load-lifting effort.

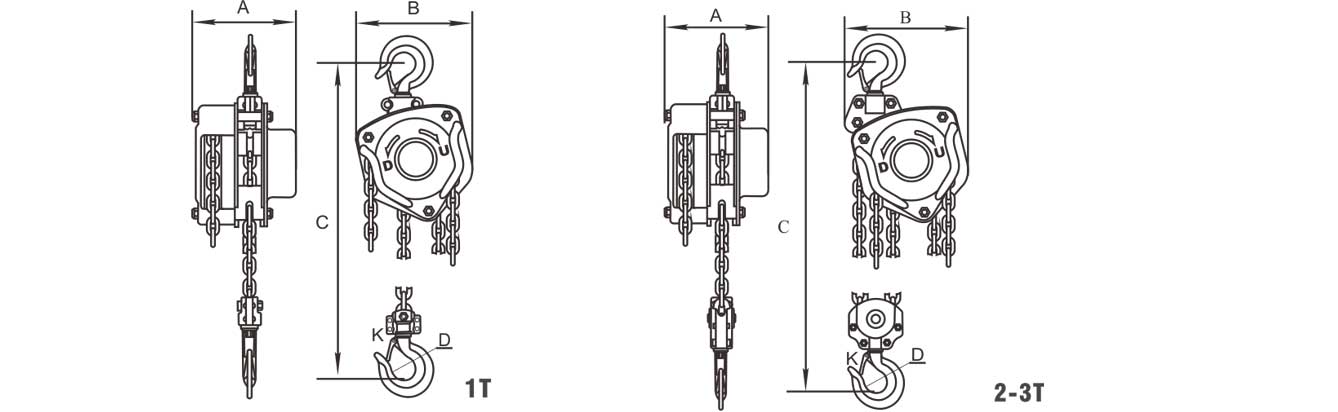

Item No. | Capacity (t) | Standard lift(m) | Proof Test Load(KN) | Effort to lift rated load (N) | Chain Fall | Load chain size(mm) | Dimensions | Net weight (kg) | Packing measurement | ||||
(mm) | (cm) | ||||||||||||
A | B | C | D | K | |||||||||
HSZ-S-1 | 1 | 2.5 | 15 | 284 | 1 | 7.1x21 | 175 | 210 | 470 | 50 | 35 | 19.5 | 37x20x24 |
HSZ-S-2 | 2 | 3 | 30 | 343 | 2 | 7.1x21 | 205 | 255 | 548 | 55 | 39 | 32 | 37x25x24 |
HSZ-S-3 | 3 | 3 | 45 | 372 | 3 | 9x27 | 189 | 280 | 688 | 65 | 45 | 41.1 | 40x26x28 |
Titansuhe offers custom chain lift hoist for wide range of lifting tools and material handling equipment which can be used either for lifting systems or to rigging a lashing system.
