HSZ-A 636 3 ton chain hoist from Titansuhe is ideal for the heavy-duty lifting of industrial grade. It is one of our most strong and durable hoists that can be used in many tough applications for high frequency. Featured with 360° free pulling, this hand operated hoist is also the best choice for some applications that do have not enough clear space for the operator.
Capacity: 3ton/3000kg/6000lbs
Standard Lifting Height: 3m/10Ft
Standard Color: Orange
Load Chain Size: 8mm x 24mm x 2
Hand Chain Size: 5mm x 25mm
Weight: 25kg
Box Dimension: 34x24x19cm
The hand chain can be pulled at any angle without a block. This greatly reduces the chain guider wear and increases the hoist durability. We also use the built-in bearing to reduce the effort required for the rated load. To lift 3ton loads, you just need to use 310kn effort that equal to 1ton effort of the regular hoist. Furthermore, this hoist also comes with large throat opening hooks and a forged hook holder. You can find a wider range choice of the hooking point for it. If you use this chain hoist for subsea purposes, we can provide fused brake disc and super anti-corrosion surface treatment.

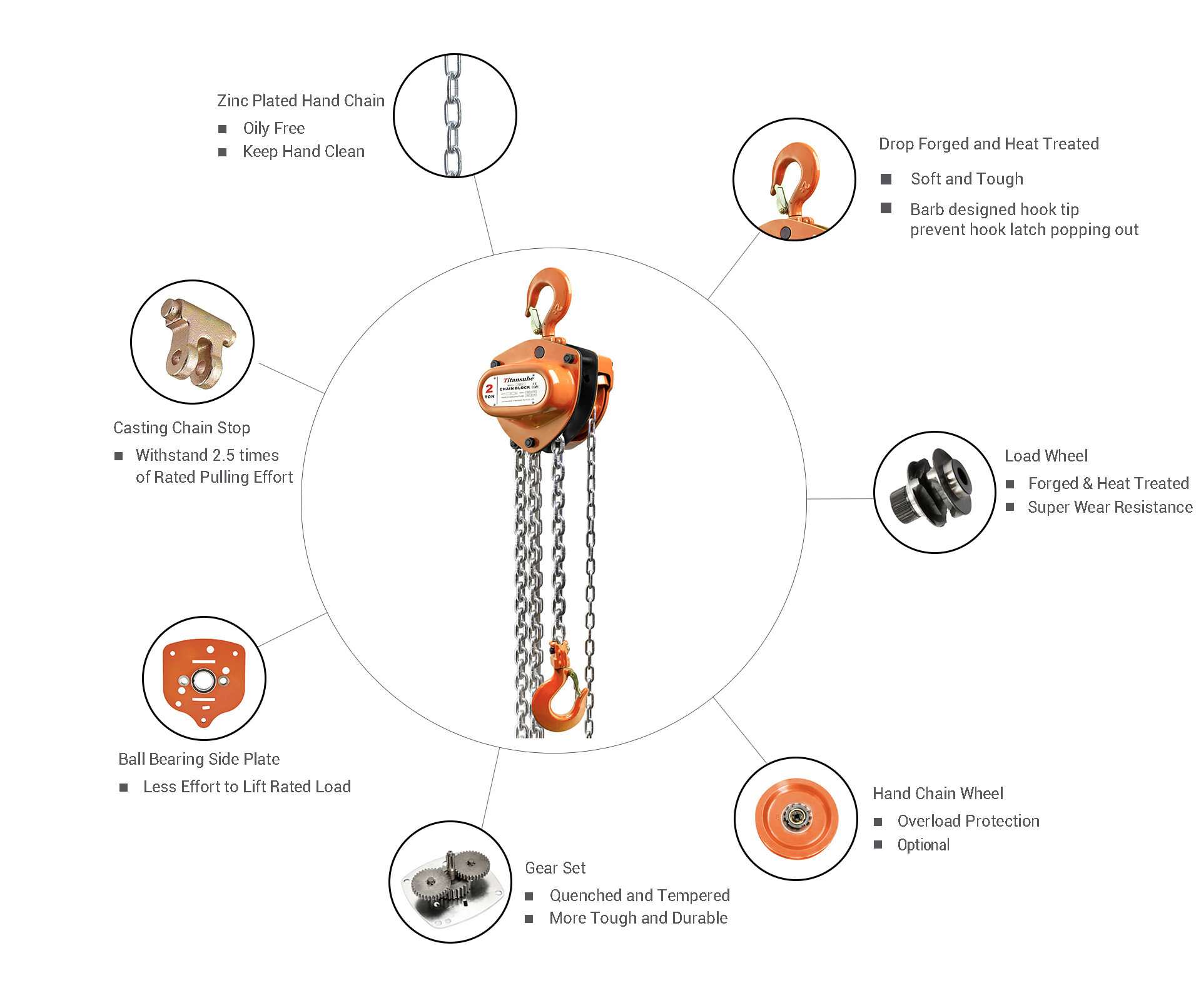

Patented design with features of 360° free pulling.
Automatic double pawl braking system.
Asbestos-free friction disc.
Industrial powder painting meets RoHS specifications.

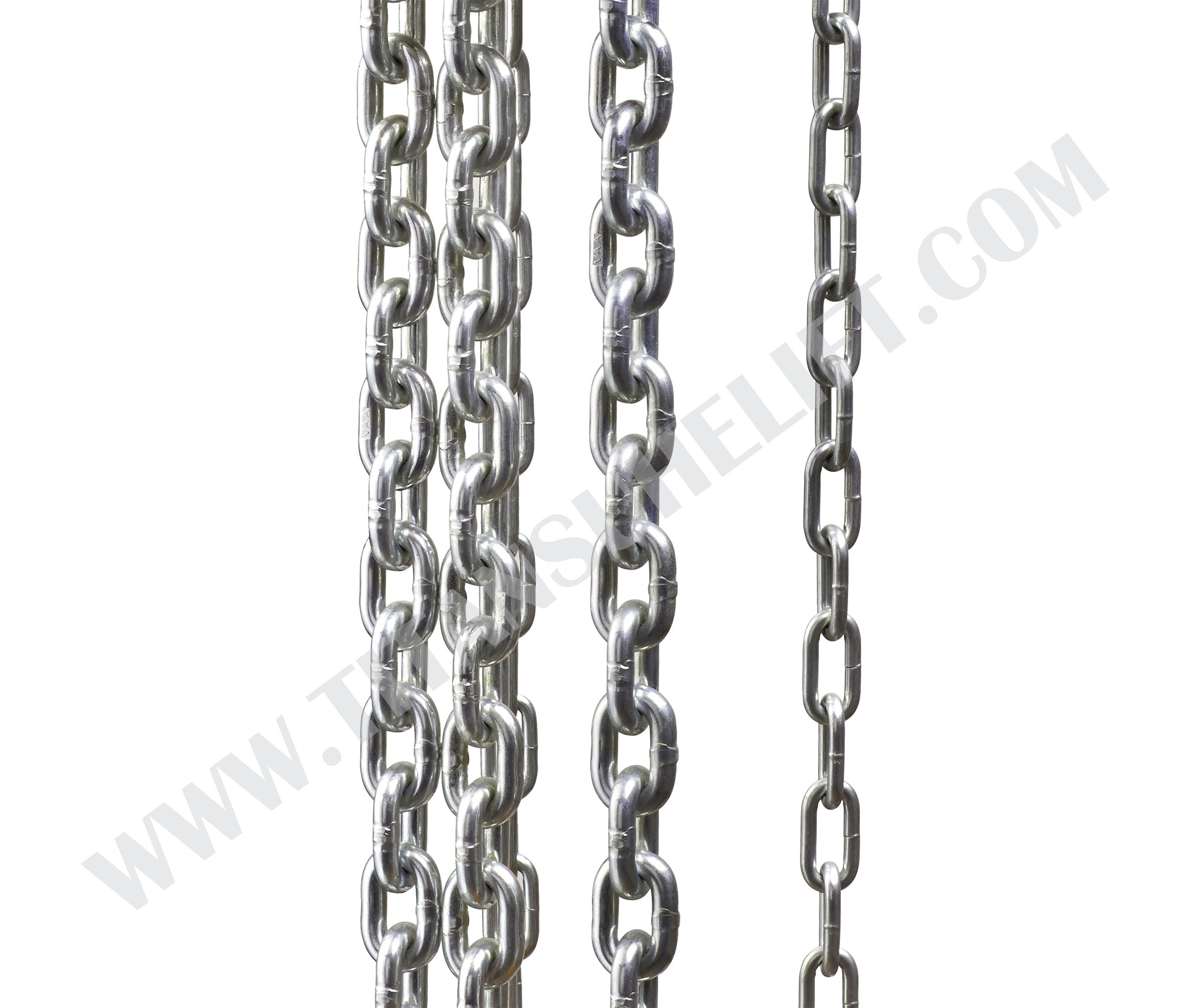

EN818-2 Specified alloy steel load chain at 8mm in double fall.
Zinc plated hand chain in size 5x25mm.
Machined chain guider: Precisely machined chain guider increases the hand chain touch, and greatly reduces the wear and tear for both chain and guider.
Finely machined gear set with quench and temper treatment greatly reduces the wear and increases its life cycles.

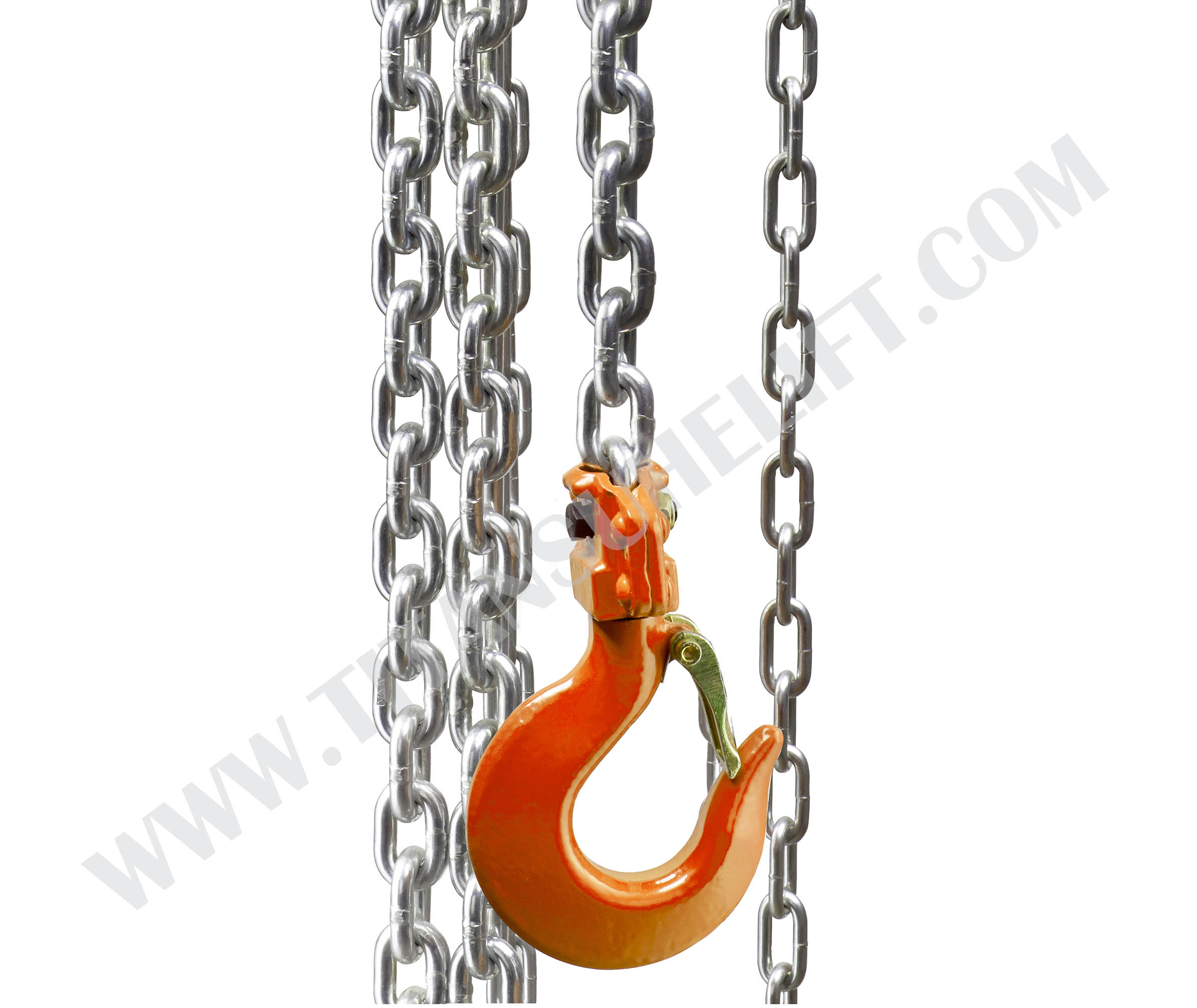

Safety latch equipped top hook and bottom hook come with bearing in hook holder enable hoist 360° free movement even under full load.

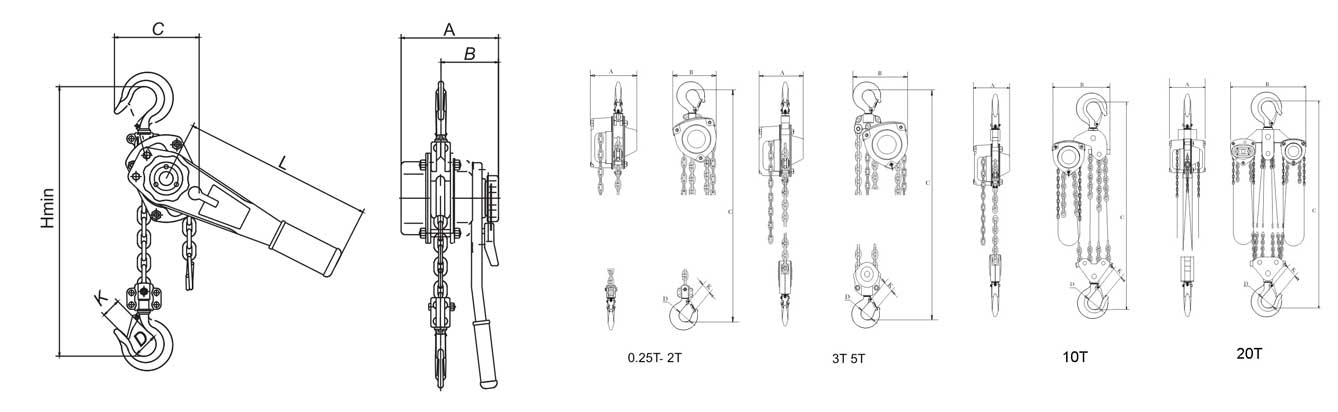

Item No. | Capacity (t) | Standard lift(m) | Proof Test Load(KN) | Effort to lift rated load (N) | Chain Fall | Load chain size(mm) | Dimensions | Net weight (kg) | Packing measurement | Extra weight per metre of extra lift(kg) | ||||
(mm) | (cm) | |||||||||||||
A | B | C | D | K | ||||||||||
HSZ-A636-0.25 | 0.25 | 2.5 | 3.75 | 186 | 1 | 4X12 | 105 | 109 | 250 | 32 | 27 | 3.9 | 25x19x18 | 0.37 |
HSZ-A636-0.5 | 0.5 | 2.5 | 7.5 | 200 | 1 | 5x15 | 144 | 145 | 350 | 35 | 24 | 9.6 | 24.5x19x18 | 1.3 |
HSZ-A636-1 | 1 | 2.5 | 15 | 295 | 1 | 6x18 | 153 | 155 | 385 | 44 | 28 | 11 | 26x19x19 | 1.6 |
HSZ-A636-1.5 | 1.5 | 2.5 | 22.5 | 305 | 1 | 8X24 | 160 | 185 | 420 | 50 | 32 | 15.5 | 30.5x21x19 | 2.3 |
HSZ-A636-2 | 2 | 3 | 30 | 320 | 1 | 8x24 | 167 | 194 | 470 | 52 | 34 | 16.2 | 30x23.5x23 | 2.3 |
HSZ-A636-3 | 3 | 3 | 45 | 310 | 2 | 8X24 | 160 | 205 | 555 | 59 | 39 | 25 | 34x24x19 | 3.6 |
HSZ-A636-5 | 5 | 3 | 75 | 365 | 2 | 10x30 | 195 | 250 | 695 | 69 | 46 | 37 | 49x29x23 | 5.3 |
HSZ-A636-10 | 10 | 3 | 150 | 380 | 4 | 10x30 | 195 | 365 | 815 | 91 | 62 | 67 | 47x42x22 | 9.4 |
HSZ-A636-20 | 20 | 3 | 300 | 380x2 | 8 | 10x30 | 195 | 632 | 890 | 110 | 85 | 153 | 80x70x23 | 19.3 |
Titansuhe have chain pulley working principle bulk wholesale at competitive prices, which provide more secure, reliable, durable, and efficient lifting tools and material handling equipment.
