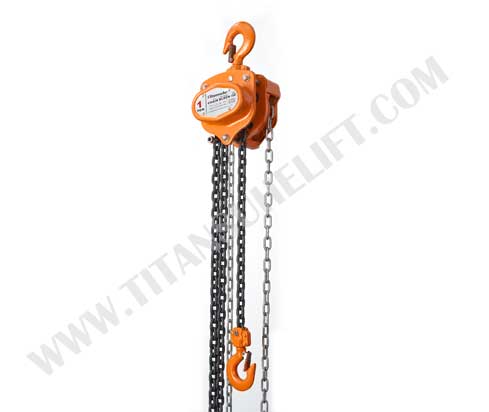

HSZ-A619 chain block from Titansuhe is a patented hoist with the feature of free pulling at 360°. This 2ton chain hoist was introduced from Germany. We adopt German Tech and improved the original manual chain fall model with additional features.
Capacity: 2ton/2000kg/4000lbs
Standard Lifting Height: 3m/10Ft
Standard Color: Orange
Load Chain Size: 8mm x 24mm x 1
Hand Chain Size: 5mm x 25mm
Weight: 10kg
Box Dimension:26x19x19cm

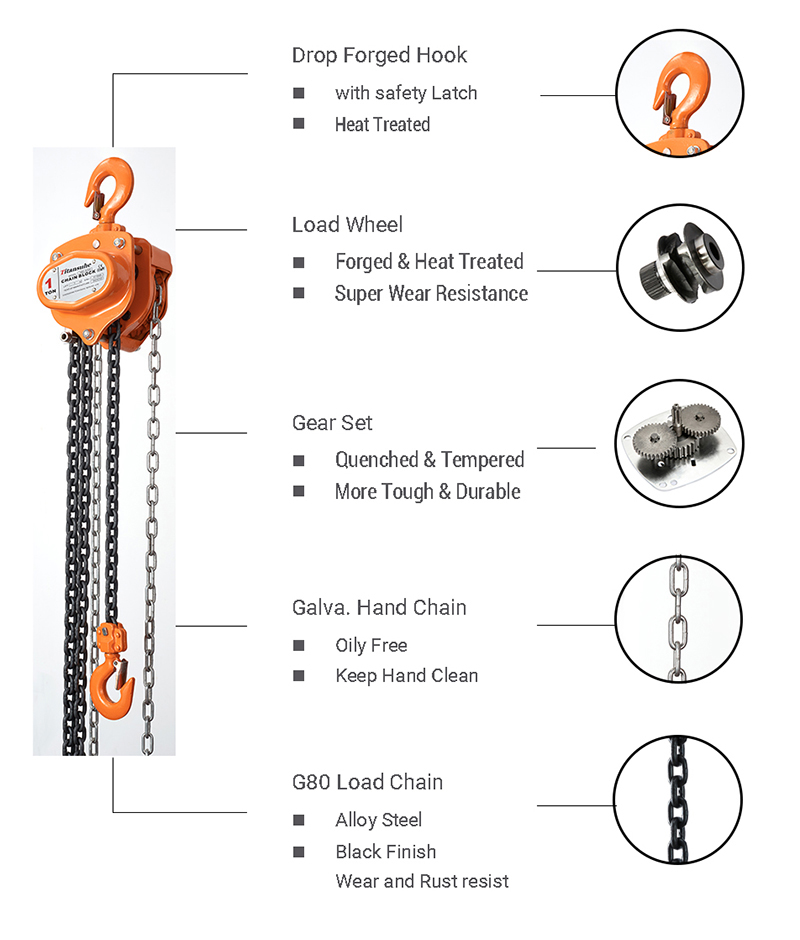

This hand chain block is constructed with high tensile alloy steel load chain, zinc plated hand pulling chain, special designed top hook and bottom hook for easy attachment, fine machined gear set, double pawl brake system, bearing seated side plate, wear resistance guider and industrial grade color painted thick covers. For some tough applications such as chemical industry and marine industry, anti-corrosion surface treatment is available with extra cost.
Patented design with features of 360° free pulling.

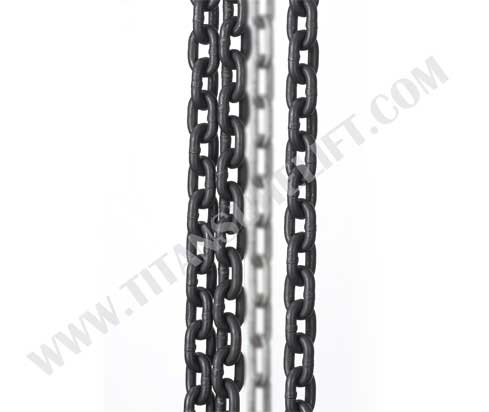

Heat-treated G80 alloy steel short link load chain in 6mm (1/4”) with black oxide.

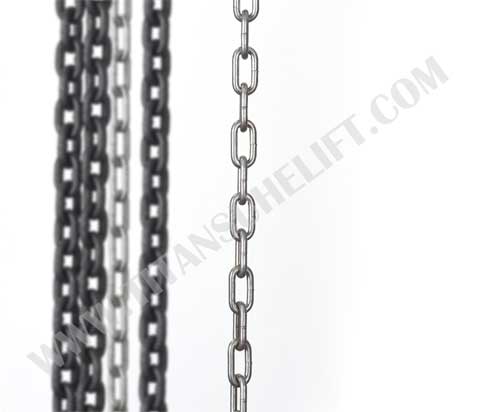

Zinc plated hand chains in 5mm diameter and 25mm pitch length always keep your hand clean and comfortable during pulling.
Machined chain guider: Precisely machined chain guider increases the hand chain touch, and greatly reduces the wear and tear for both chain and guider.
Finely machined gear set with quench and temper treatment greatly reduces the wear and increase its life cycles.

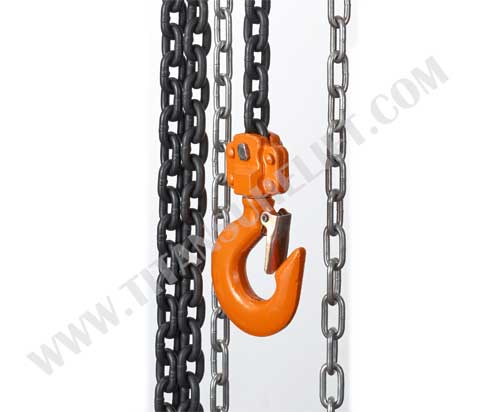

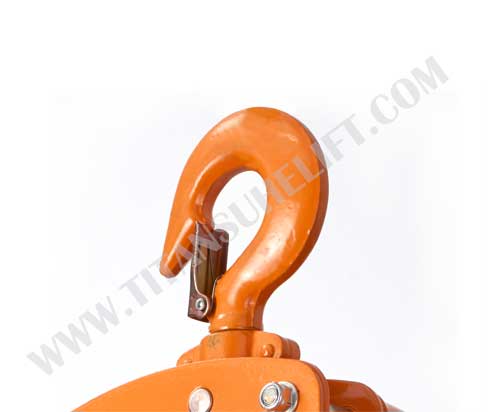

Safety latch equipped top hook and bottom hook come with bearing in hook holder enable hoist 360° free movement even under full load.

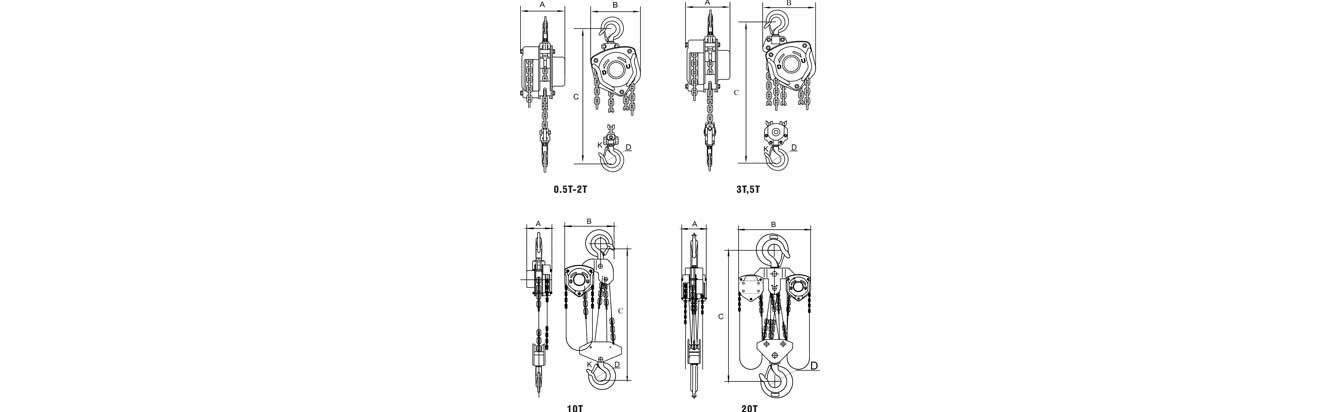

Model | Capacity | Standard lift (m) | Running test load (KN) | Effort required to lift rated load (N) | Strands of load chain | Load chain size(mm) | Dimension (mm) | Net weight | Packing measurement(cm) | Extra weight per metre of extra lift(kg) | ||||
(t) | (kg) | |||||||||||||
A | B | C | D | K | ||||||||||
HSZ-A619-0.5 | 0.5 | 2.5 | 7.5 | 231 | 1 | 6x18 | 131 | 127 | 270 | 35 | 30 | 10 | 22x15x19.5 | 1.8 |
HSZ-A619-1 | 1 | 2.5 | 15 | 309 | 1 | 6x18 | 140 | 158 | 317 | 35.5 | 28 | 12 | 25x18x19.5 | 1.8 |
HSZ-A619-1.5 | 1.5 | 2.5 | 22.5 | 320 | 1 | 8x24 | 161 | 174 | 399 | 45 | 36 | 19 | 28x18x19.5 | 2.4 |
HSZ-A619-2 | 2 | 3 | 30 | 360 | 1 | 8x24 | 161 | 187 | 414 | 42.5 | 33.5 | 20 | 28x21x24 | 2.4 |
HSZ-A619-3 | 3 | 3 | 45 | 340 | 2 | 8x24 | 161 | 199 | 465 | 50 | 40 | 27 | 32x21x26 | 3.8 |
HSZ-A619-5 | 5 | 3 | 62.5 | 414 | 2 | 10x30 | 186 | 253 | 636 | 64 | 50 | 45.5 | 40x21x31 | 5.4 |
HSZ-A619-7.5 | 7.5 | 3 | 112.5 | 415 | 3 | 10x30 | 189 | 380 | 650 | 72 | 47 | 44 | 47x42x23 | 7.5 |
HSZ-A619-10 | 10 | 3 | 125 | 414 | 4 | 10x30 | 207 | 398 | 798 | 85 | 64 | 83 | 50x41x21 | 9.8 |
HSZ-A619-15 | 15 | 3 | 225 | 420 | 6 | 10x30 | 194 | 400 | 880 | 86 | 58 | 102 | 97X48X23 | 14 |
HSZ-A619-20 | 20 | 3 | 250 | 414x2 | 8 | 10x30 | 215 | 650 | 890 | 110 | 85 | 193 | 80X70X23 | 19.3 |
HSZ-A619-30 | 30 | 3 | 450 | 450x2 | 12 | 10x30 | 330 | 680 | 1000 | 110 | 85 | 225 | 88x78x48 | 28.2 |
HSZ-A619-50 | 50 | 3 | 750 | 450x2 | 22 | 10x30 | 410 | 900 | 1060 | 130 | 130 | 1085 | 160x130x75 | 50 |
Titansuhe is dedicated to providing a full range of crane chain pulley, we offer cost-effective and reliable solutions.
